Blum CLIP top Glass Door Hinge 94° Opening. Half Overlay. Boss: Screw-On 75T4200 by W&B

Blum CLIP top Glass Door Hinge 94° Opening. Half Overlay. Boss: Screw-On 75T4200 by W&B

Regular price $13.40 AUD
Regular price Sale price $13.40 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Request bulk / project pricing

Before you submit an enquiry

Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.

To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.

For single-item purchases or small quantities, the website price is usually the best available price.

Continue to contact form

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges

Returns are handled according to the product condition, order type and Imperial return policy.

Wilson and Bradley Glass Door Hinges

Wilson and Bradley's hinge systems combine ingenuity with functionality to provide a reliable, efficient, and stylish solution for your door installations. Our hinges offer enhanced 3-dimensional adjustment, ensuring smooth operation, precise alignment, and ease of assembly.

Designed to endure 200,000 opening and closing cycles, our hinges cater to a wide range of applications, including wood, glass, and aluminum frame doors, as well as doors of varying thickness. We also provide specialized solutions for blind corners and angled doors.

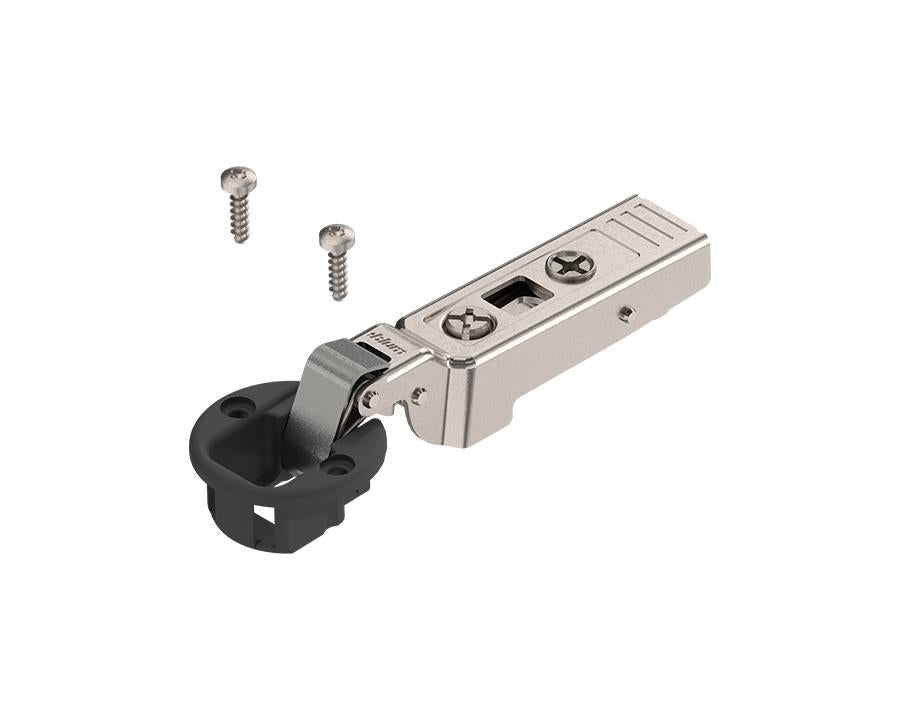

The CLIP top glass door hinge (94°) is perfect for glass doors with front thicknesses ranging from 4.5mm to 7mm. With a tool-free, fast assembly method, it allows for easy attachment and removal of the door, ensuring both convenience and reliability.

Our CLIP mechanism has been tried and tested to provide effortless, tool-free door-to-cabinet assembly, ensuring every door equipped with Blum hinges opens and closes smoothly.

Features:

  • Tested for over 200,000 cycles to ensure durability
  • Suitable for a variety of applications, including glass doors
  • 3-dimensional adjustment for precise positioning
  • Simple, tool-free assembly and easy adjustments

Specifications:

  • Application: Glass door hinge
  • Cranking: Dual application
  • Opening Angle: 94°
  • Closing Mechanism: Spring-assisted
  • Cover Cap Types: 90M2603, 70.1553
  • Boss Material: Nylon, Black finish
  • Boss Assembly: Screw-on
  • Flange Height: 2.5mm
  • Diameter of Hinge Boss Drilling: 26mm
  • Distance Between Drillings: 22mm
  • Minimum Drilling Distance: 5.5mm
  • Maximum Drilling Distance: 7mm
  • Arm Material: Steel, Nickel-plated
  • Collision Measurement (Hinge Arm Height): 23mm
  • Fixed Dimension/Factory Setting: 0.5mm
  • Side Adjustment: +0.5mm/-3.5mm
  • Depth Adjustment: +/- 2mm
  • Gap: 3mm
  • Item Package: 1 piece
  • Packaging: Commercial packing

Note: All plates are sold separately.
