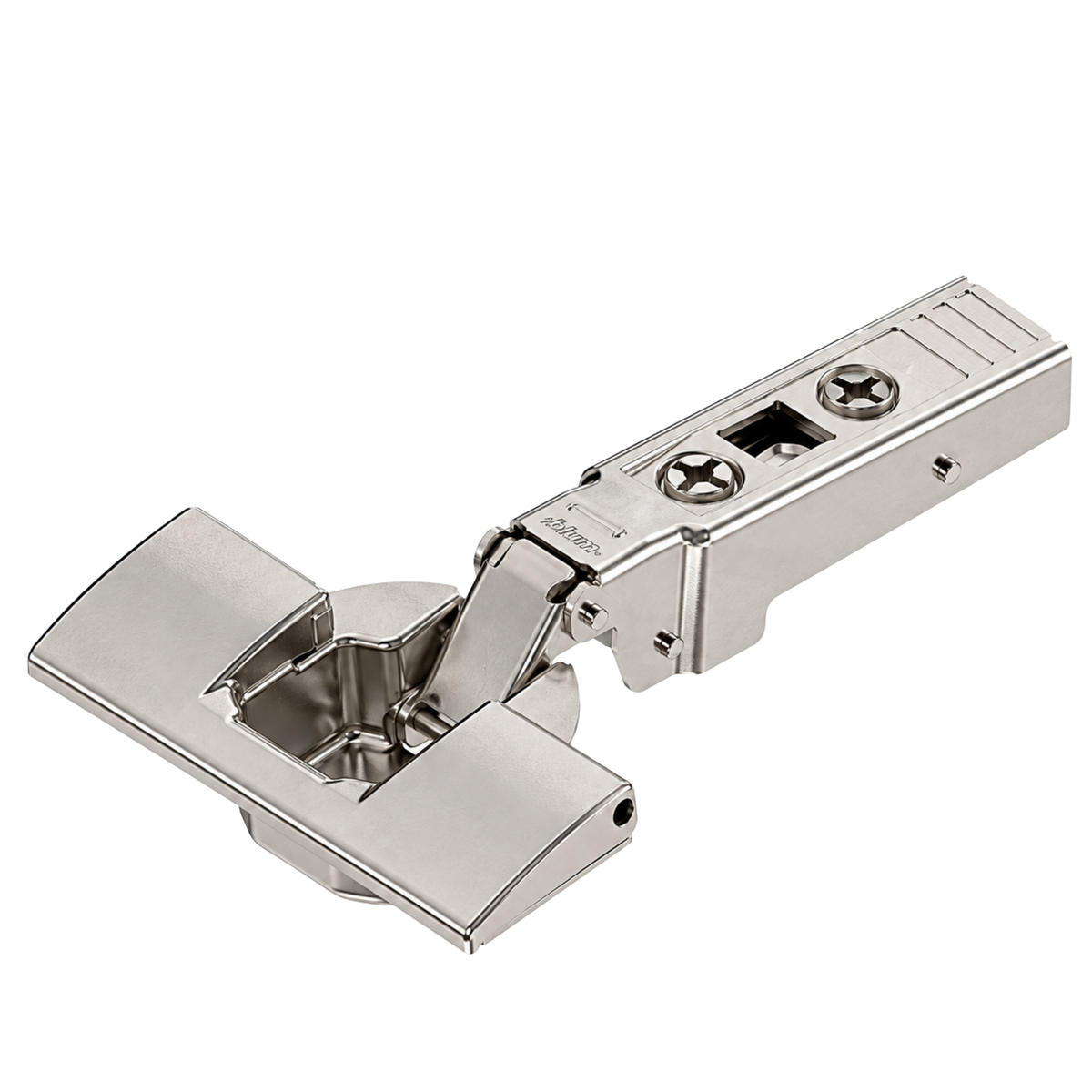

Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley
Blum's hinges combine ingenuity and precision, offering functionality that is both reliable and easy to adjust. Our hinge systems feature 3-dimensional adjustability, enabling flexible installation while enhancing ease of assembly and ensuring a clean, attractive finish.
Engineered for durability, our hinges are tested to endure over 200,000 opening and closing cycles, making them ideal for a variety of applications, from wood and glass to aluminum-framed doors. They also cater to more specialized needs, such as angled and blind corner installations.
Thanks to innovations like the INSERTA and CLIP mechanisms, attaching the hinge to doors and mounting plates is effortless and tool-free. Additionally, Blum provides a range of precision boring and insertion machines, assembly aids, and templates to ensure quick and accurate installation.
Blum’s CLIP system guarantees a simple, fast door-to-cabinet assembly with no tools required. Every door equipped with Blum hinges opens and closes smoothly and reliably.
Key Features:
- Rigorously tested for 200,000 cycles, ensuring long-lasting durability
- Versatile for a wide range of door types and materials
- 3-dimensional adjustment for easy and flexible alignment
- Tool-free assembly with CLIP system for quick installation
Specifications:
- Application: Profile door hinge
- Overlay Cranking: Overlay application
- Opening Angle: 95°
- Closing Mechanism: Spring-based
- Hinge Variant: Compatible with BLUMOTION 973A
- Cover Cap Types: 90M2503, 70.1553
- Boss Material: Steel (Nickel plated)
- Boss Assembly: INSERTA
- Flange Dimensions: Width: 65mm, Length: 23mm, Height: 7mm
- Hinge Boss Drilling Diameter: 35mm
- Fixing Hole Diameter: 8mm
- Eccentric Position of Fixing Holes to Boss Hole: 9.5mm
- Boss Drilling Depth: 12.6mm
- Side Adjustment: +/- 2mm (screw-based)
- Depth Adjustment: +3/-2mm (spiral screw)
- Gap: 1.5mm
- Packaging: Industrial packing (1 piece)
Note: All plates are sold separately.
