Blum Hinge Systems by Wilson and Bradley
Blum’s hinge systems combine ingenuity with practical design, providing unmatched functionality, precise adjustability, and effortless assembly. These hinges allow for 3-dimensional adjustments, ensuring a perfect fit and smooth operation every time.
Built to endure 200,000 cycles of opening and closing, Blum hinges cater to a wide range of applications, including wood, glass, and aluminum-framed doors, as well as both thin and thick doors. Special configurations are available for unique needs, such as blind corners and angled installations.
Compatible with all CLIP mounting plates, the CLIP top sprung hinge offers easy side, height, and depth adjustments via a spiral screw. Several mounting plates also include cam height adjustments, enabling tool-free attachment and removal of doors, making installation and adjustments quick and easy.
Thanks to Blum’s proven CLIP mechanism, assembling doors to cabinets is both fast and efficient, with no tools required. Every door equipped with Blum hinges operates smoothly and reliably.
Key Features:
- Tested to over 200,000 cycles for reliable long-term performance
- Versatile for a wide variety of door materials and applications
- 3-dimensional adjustment for precise alignment
- Quick and easy assembly with Blum’s CLIP system, no tools needed
Specifications:

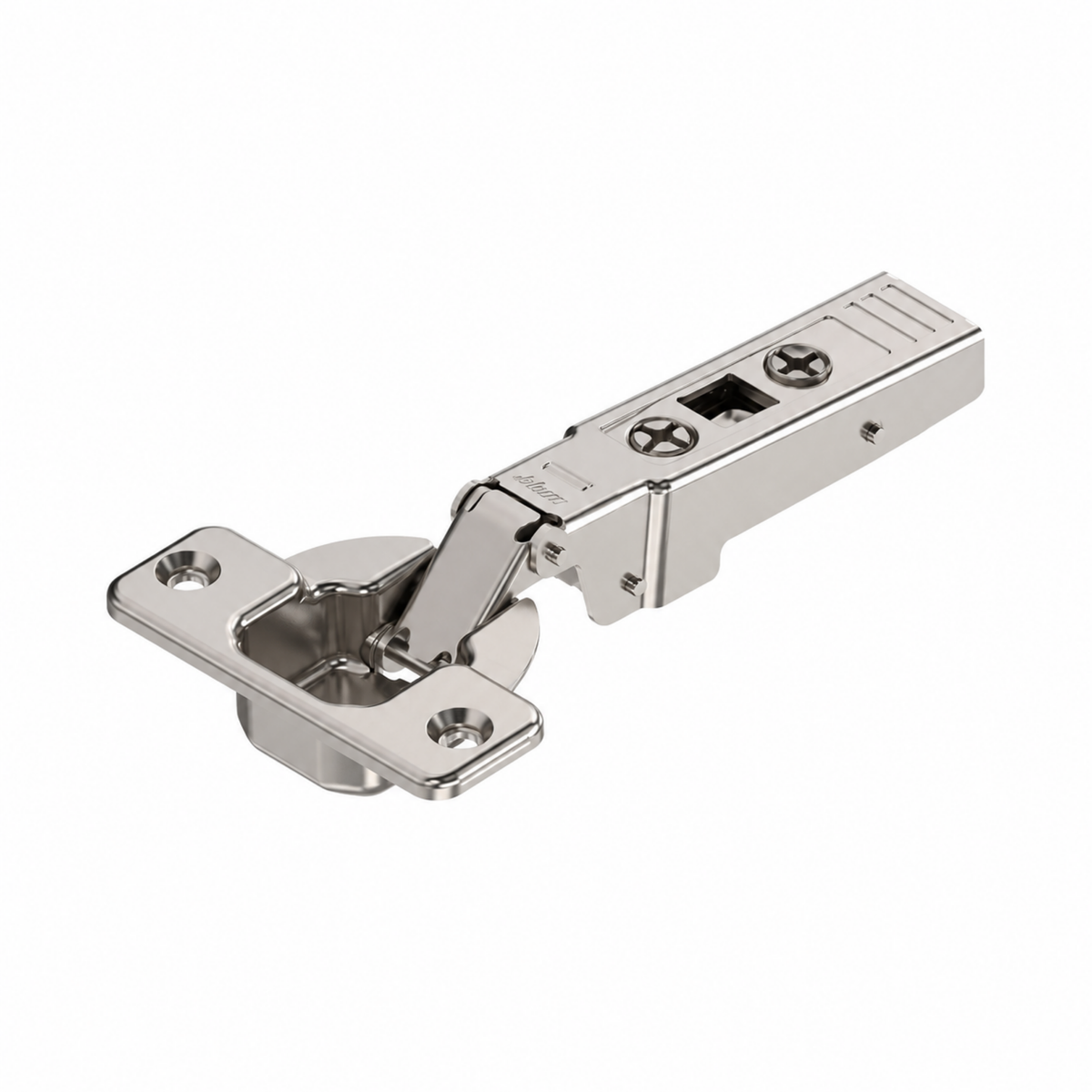

- Application: Profile door hinge for overlay doors
- Opening Angle: 95°
- Closing Mechanism: Spring-based
- Cover Cap Types: 90M2503, 70.1553
- Boss Material: Steel, nickel plated
- Boss Assembly: Screw-on
- Flange: Width 57mm, Length 30.5mm, Height 3.2mm
- Hinge Boss Drilling: Diameter 35mm, Drilling Depth 12.3mm
- Drill Hole Spacing: 45mm, eccentric positioning (9.5mm)
- Side Adjustment: +/- 2mm with screw
- Depth Adjustment: +3/-2mm with spiral screw
- Gap: 1.5mm
- Item Package: 1 piece (industrial packaging)
Note: Plates sold separately.
