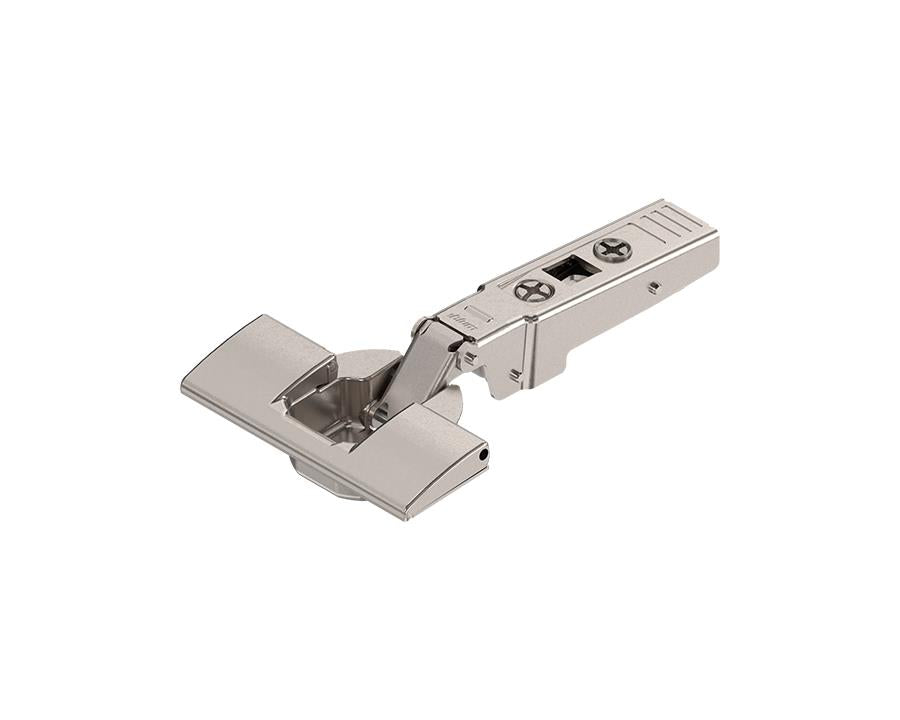

Blum Hinge Systems: Precision, Innovation, and Seamless Functionality by Wilson & Bradley
Wilson & Bradley brings you Blum’s cutting-edge hinge systems, designed with ingenuity to offer unmatched functionality, flexibility, and ease of installation. With 3-dimensional adjustment, these hinges provide exceptional precision, making them ideal for a wide range of applications, including wood, glass, and aluminum frame doors. Blum’s hinges are built to last, withstanding over 200,000 opening and closing cycles, and are perfect for both thin and thick doors, as well as unique configurations like blind corner and angled doors.
Blum’s TIP-ON motion technology facilitates handle-less front designs, adding a modern and sleek touch to any space. Coupled with Blum’s CLIP system, door-to-cabinet assembly is tool-free, quick, and easy. Every door with Blum hinges opens and closes smoothly, ensuring reliability for years.
Key Features:
Tested for over 200,000 cycles of consistent operation
Suitable for various materials including wood, glass, and aluminum
TIP-ON motion technology for handle-free designs
3-dimensional adjustment for precise alignment
CLIP mechanism for tool-free, easy assembly
Technical Specifications:

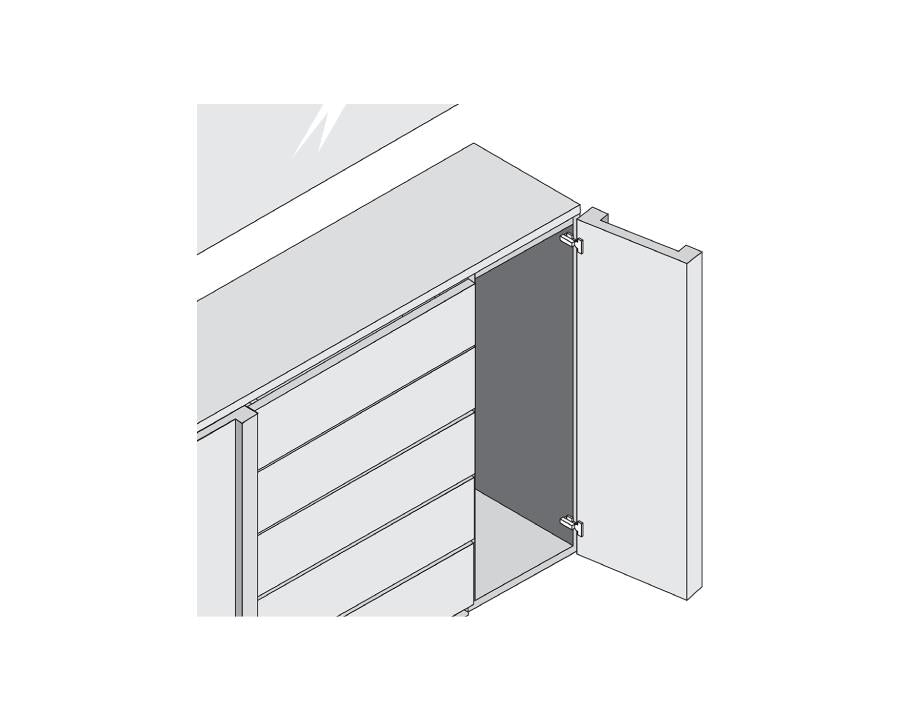

Application: Profile door hinge
Cranking: Overlay application
Opening angle: 95°
Closing mechanism: Unsprung
Hinge variant: Special exterior lever with TIP-ON motion
Cover cap type: 70.1553
Boss material: Steel
Boss finish: Nickel plated
Boss assembly: Screw-on
Flange dimensions:
Width: 65mm
Length: 23mm
Height: 7mm
Hinge boss drilling diameter: 35mm
Fixing holes diameter: 8mm
Distance between drillings: 45mm
Eccentric position of fixing holes to hinge boss hole: 9.5mm
Boss drilling depth: 12.6mm
Minimum drilling distance: 3mm
Maximum drilling distance: 7mm
Arm material: Steel
Arm finish: Nickel plated
Collision measurement (hinge arm height): 22mm
Fixed dimension/factory fitting: 11mm
Side adjustment: +/- 2mm (with screw)
Depth adjustment: Convenient with spiral screw (+3/-2mm)
