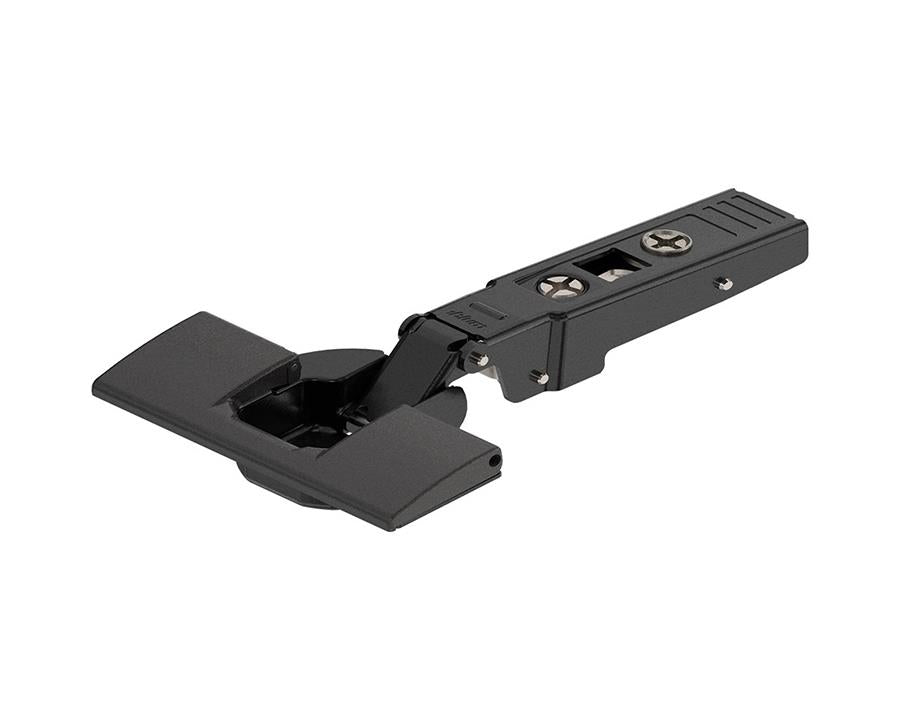

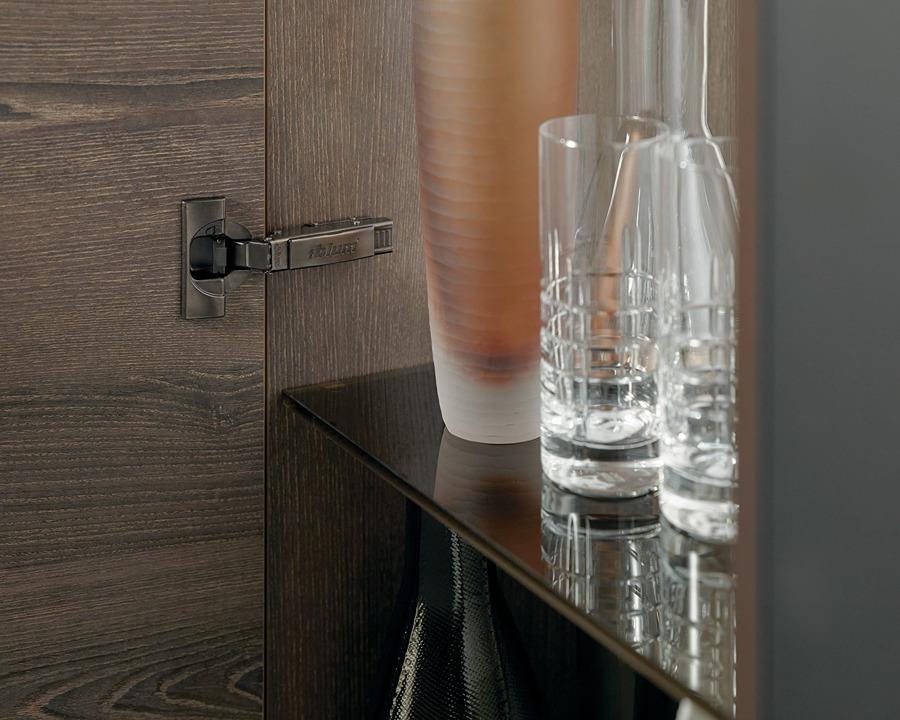

Blum CLIP top Profile Hinge 95 Degree. Full overlay. Unsprung. Boss: INSERTA. In onyx black 70T9590BTL by W&B

Blum CLIP top Profile Hinge 95 Degree. Full overlay. Unsprung. Boss: INSERTA. In onyx black 70T9590BTL by W&B

Regular price $9.83 AUD
Regular price Sale price $9.83 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Wilson and Bradley Profile Door Hinge with TIP-ON Motion Technology

Wilson and Bradley’s hinge systems combine cutting-edge technology and design to offer functionality that’s reliable, easy to adjust, and aesthetically appealing. Engineered to withstand over 200,000 opening and closing cycles, our range of hinges is perfect for a variety of door applications, from wood and glass to aluminum frames and thicker doors. We also offer solutions for unique setups like blind corner and angled doors.

Our TIP-ON motion technology allows for handle-less front panels, delivering a sleek and modern appearance, while our time-tested CLIP mechanism ensures fast, tool-free assembly, so your cabinets are always easy to work with.

Features:

  • 200,000+ cycles for durability and long-lasting performance
  • TIP-ON technology for handle-less cabinet doors

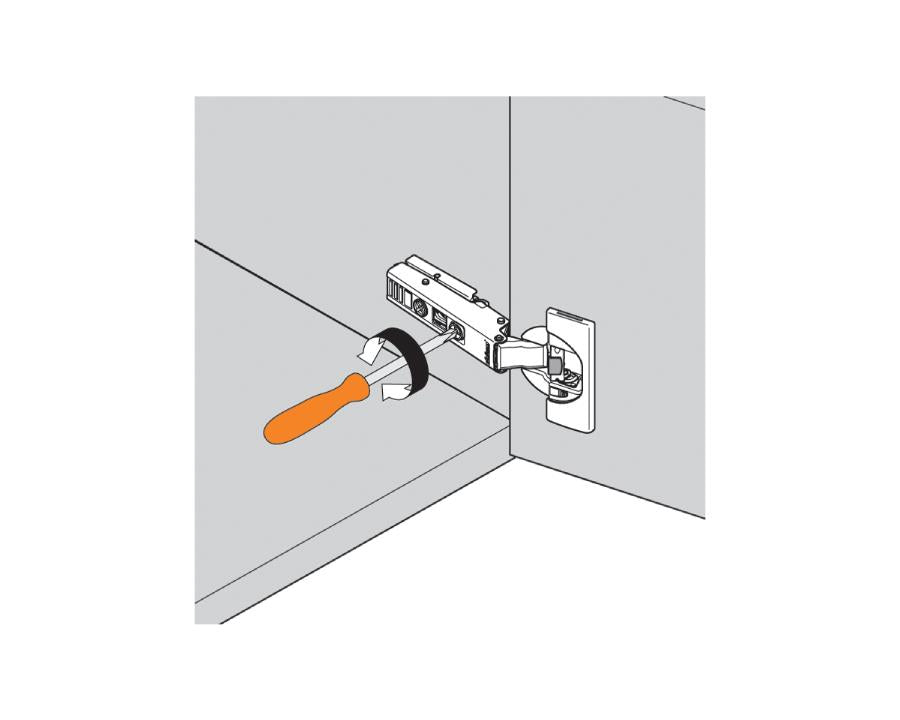

  • 3-dimensional adjustment for perfect alignment

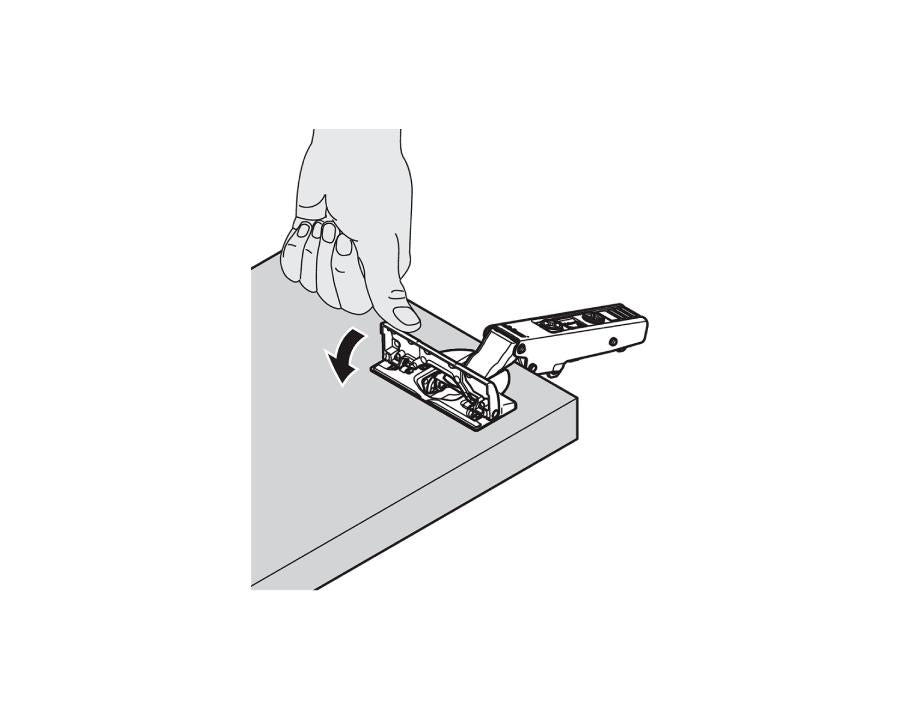

  • Tool-free assembly with CLIP mechanism for convenience

Specifications:

  • Application: Profile door hinge
  • Opening angle: 95°
  • Closing mechanism: Unsprung
  • Hinge variant: Special exterior lever, with free movement for TIP-ON
  • Cover cap type: 70.1553
  • Boss material: Steel, Onyx black finish
  • Boss assembly: Screw-On
  • Flange dimensions:
    • Width: 65mm
    • Length: 23mm
    • Height: 7mm
  • Diameter of fixing holes: 8mm
  • Distance between drillings: 45mm
  • Boss drilling depth: 12.6mm
  • Minimum/Maximum drilling distance: 3mm / 7mm
  • Arm material: Zinc, Onyx black finish
  • Collision measurement (hinge arm height): 22mm
  • Fixed dimension/factory setting: 11mm

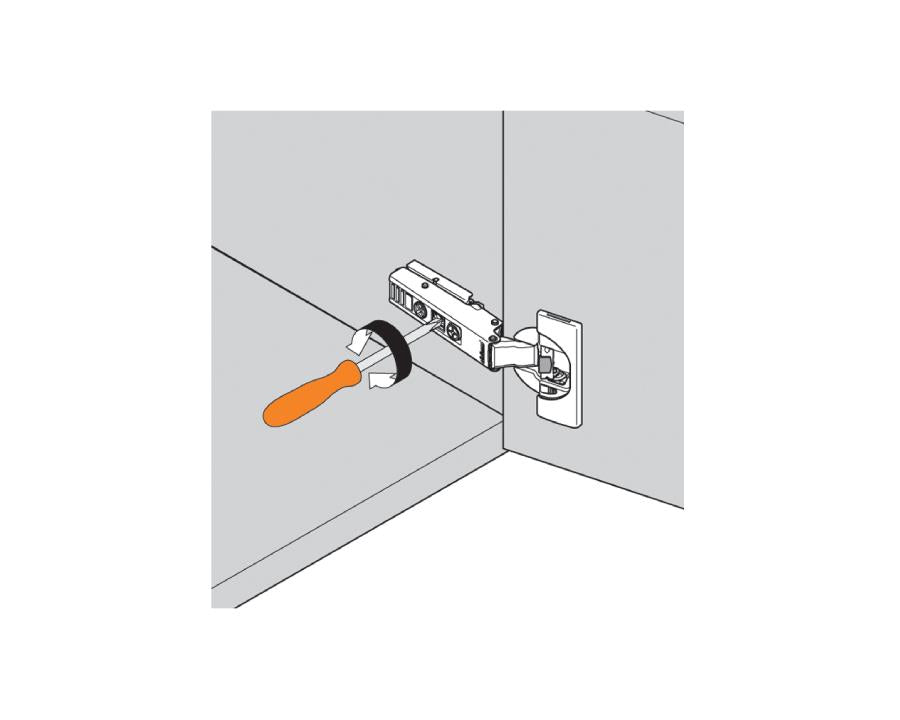

  • Side adjustment: +/- 2mm (with screw)

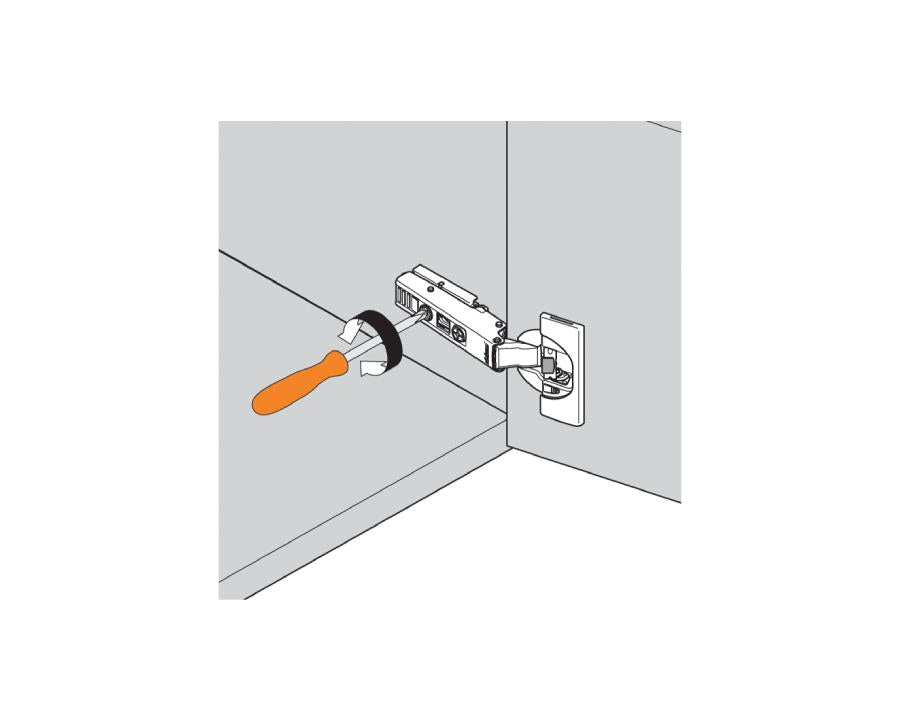

  • Depth adjustment: +/- 2mm (with spiral screw)
  • Gap: 1.5mm
  • Item package: 1 piece
  • Packaging: Commercial packing

Note: All plates are sold separately
