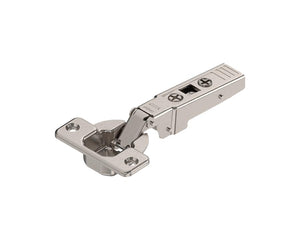

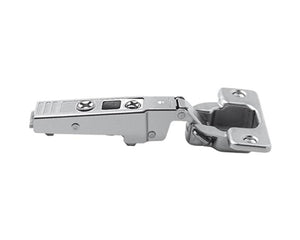

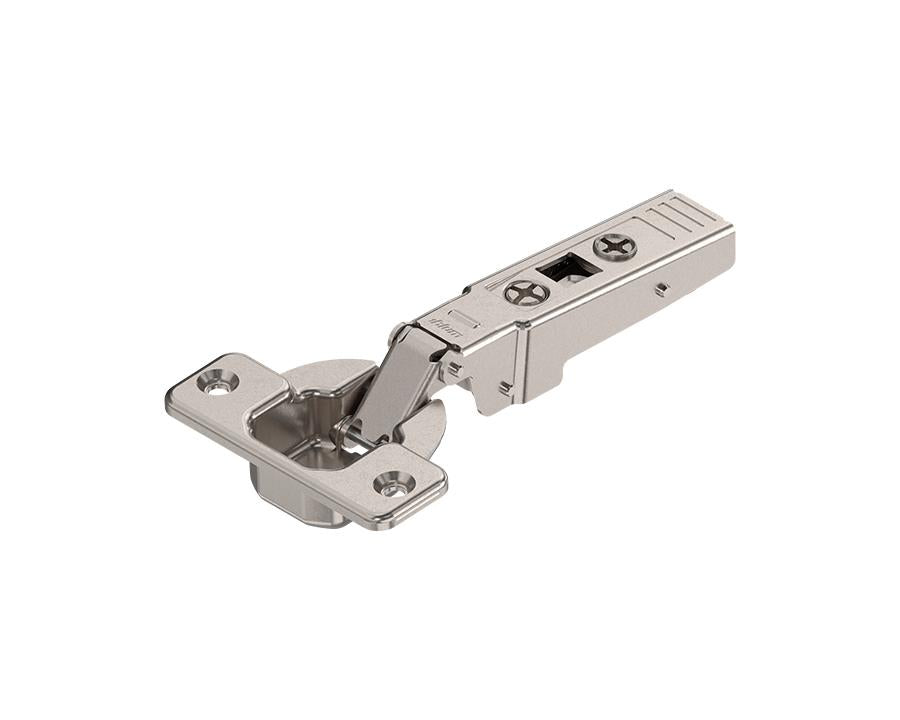

Blum Hinge Systems: Innovation, Precision, and Effortless Functionality by Wilson & Bradley
Wilson & Bradley’s Blum hinge systems are designed with ingenuity and cutting-edge engineering to offer exceptional functionality, precision, and ease of installation. Featuring 3-dimensional adjustment, these hinges provide unmatched flexibility in alignment. Built to endure over 200,000 opening and closing cycles, they are perfect for a variety of applications, including wood, glass, and aluminum-framed doors, as well as both thin and thick doors. Specialized solutions for angled and blind corner doors are also available.
With Blum'sTIP-ON motion technology, handle-free fronts are made possible, while the CLIP system ensures quick, tool-free assembly, streamlining the door-to-cabinet connection. Blum hinges guarantee smooth, reliable door operation every time, making them a versatile choice for your cabinet solutions.
Key Features:
Tested to withstand over 200,000 opening and closing cycles
Suitable for various materials: wood, glass, aluminum
TIP-ON technology enables handle-free fronts
3-dimensional adjustment for precise and easy alignment
CLIP mechanism for fast, tool-free door assembly
Technical Specifications:

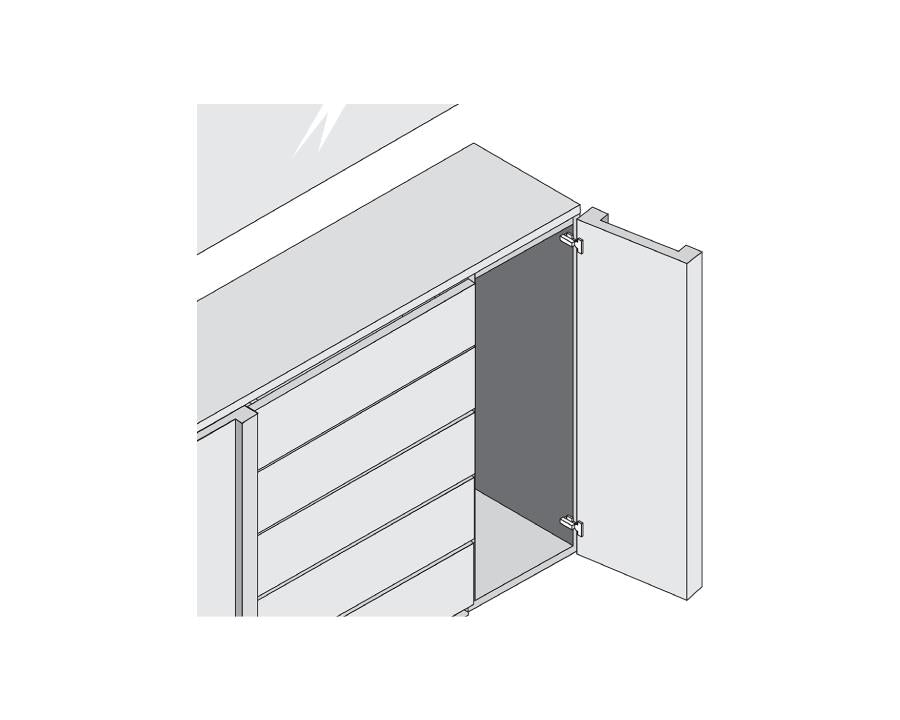

Application: Profile door hinge
Cranking: Overlay application
Opening angle: 95°
Closing mechanism: Unsprung
Hinge variant: Special exterior lever with TIP-ON motion
Cover cap types: 70.1553
Boss material: Steel
Boss finish: Nickel plated

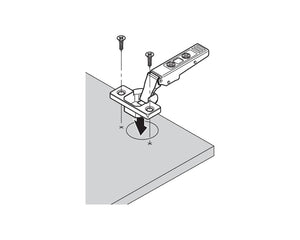

Boss assembly: Screw-on
Flange dimensions:
Width: 57mm
Length: 22mm
Height: 3.2mm
Hinge boss drilling diameter: 35mm
Fixing holes diameter: 8mm
Distance between drillings: 45mm
Eccentric position of fixing holes to hinge boss hole: 9.5mm
Boss drilling depth: 12.3mm
Minimum drilling distance: 3mm
Maximum drilling distance: 7mm
Arm material: Steel
Arm finish: Nickel plated
Collision measurement (hinge arm height): 22mm
Fixed dimension/factory fitting: 11mm

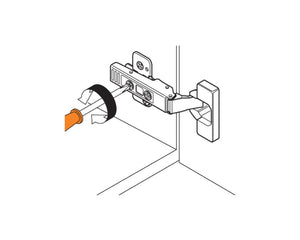

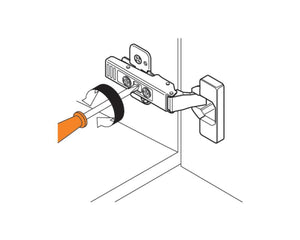

Side adjustment: +/- 2mm (with screw)

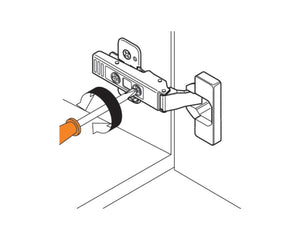

Depth adjustment: Convenient with spiral screw (+3/-2mm)
