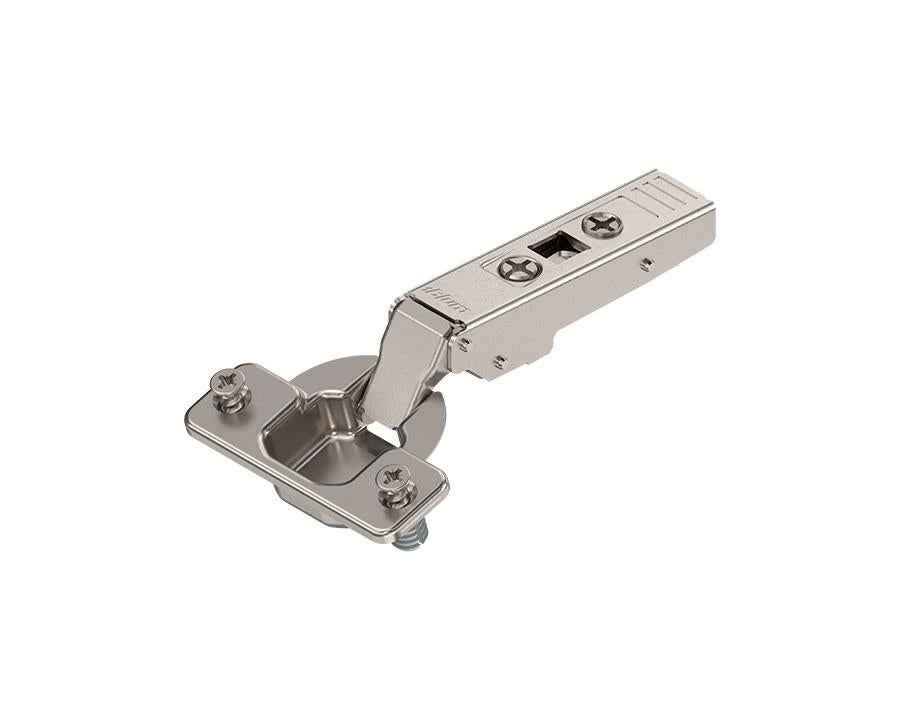

Blum CLIP top Standard Hinge 107 Degree. Full Overlay. Boss: EXPANDO 75T158E by W&B
Blum CLIP top Standard Hinge 107 Degree. Full Overlay. Boss: EXPANDO 75T158E by W&B
Couldn't load pickup availability
Request bulk / project pricing
Before you submit an enquiry
Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.
To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.
For single-item purchases or small quantities, the website price is usually the best available price.
For larger quantities, project orders or repeat trade customers.
Delivery & Collection Note
Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.
Product Support
Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.
Returns & Exchanges
Returns are handled according to the product condition, order type and Imperial return policy.
Wilson and Bradley Standard Hinge with BLUMOTION
Wilson and Bradley's innovative hinge systems are designed for reliable performance, ease of adjustment, and effortless installation. With 3-dimensional adjustment capabilities, these hinges offer flexibility and precision for a variety of applications.
Built to endure up to 200,000 opening and closing cycles, our range accommodates wood, glass, aluminum frame doors, and both thin and thick door profiles. Additionally, we provide solutions for blind corner and angled applications.
The integrated BLUMOTION ensures smooth, silent closing of doors, regardless of their size or how they are closed. CLIP technology allows for quick, tool-free assembly and ensures that every door opens and closes with ease.
Features:
- Tested to withstand over 200,000 opening/closing cycles
- Versatile for multiple door types
- 3-dimensional adjustability for precise fitting
- Tool-free, easy installation with CLIP system
Specifications:
- Application: Standard hinge

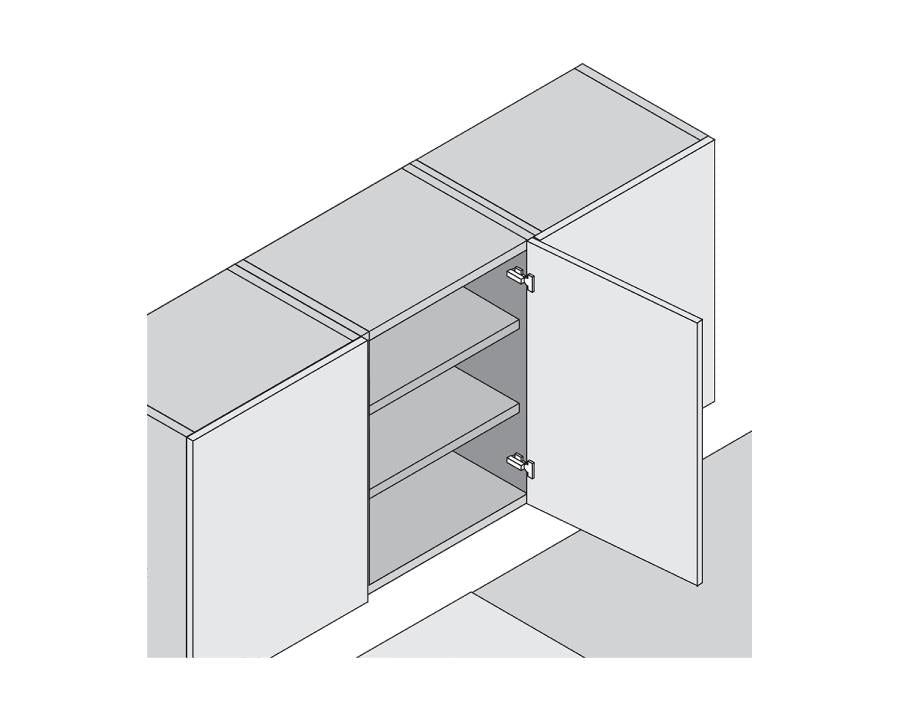

- Cranking: Overlay
- Opening angle: 107°
- Closing mechanism: With spring
- Hinge variant: With integrated BLUMOTION
- Cover cap type: 90M2503
- Boss material: Steel, Nickel plated
- Boss assembly: EXPANDO
-
Flange dimensions:
- Width: 57mm
- Length: 20mm
- Height: 3.2mm
- Diameter of fixing holes: 8mm
- Distance between drillings: 45mm
- Boss drilling depth: 11.5mm
- Minimum/Maximum drilling distance: 3mm / 6mm
- Arm material: Steel
- Arm finish: Nickel plated
- Collision measurement (hinge arm height): 21mm
- Side adjustment: +/- 2mm (with screw)
- Depth adjustment: +/- 3/-2mm (with spiral screw)
- Gap: 1.5mm
- Packaging: Industrial packing
Note: All plates are sold separately
