cabinet hardware

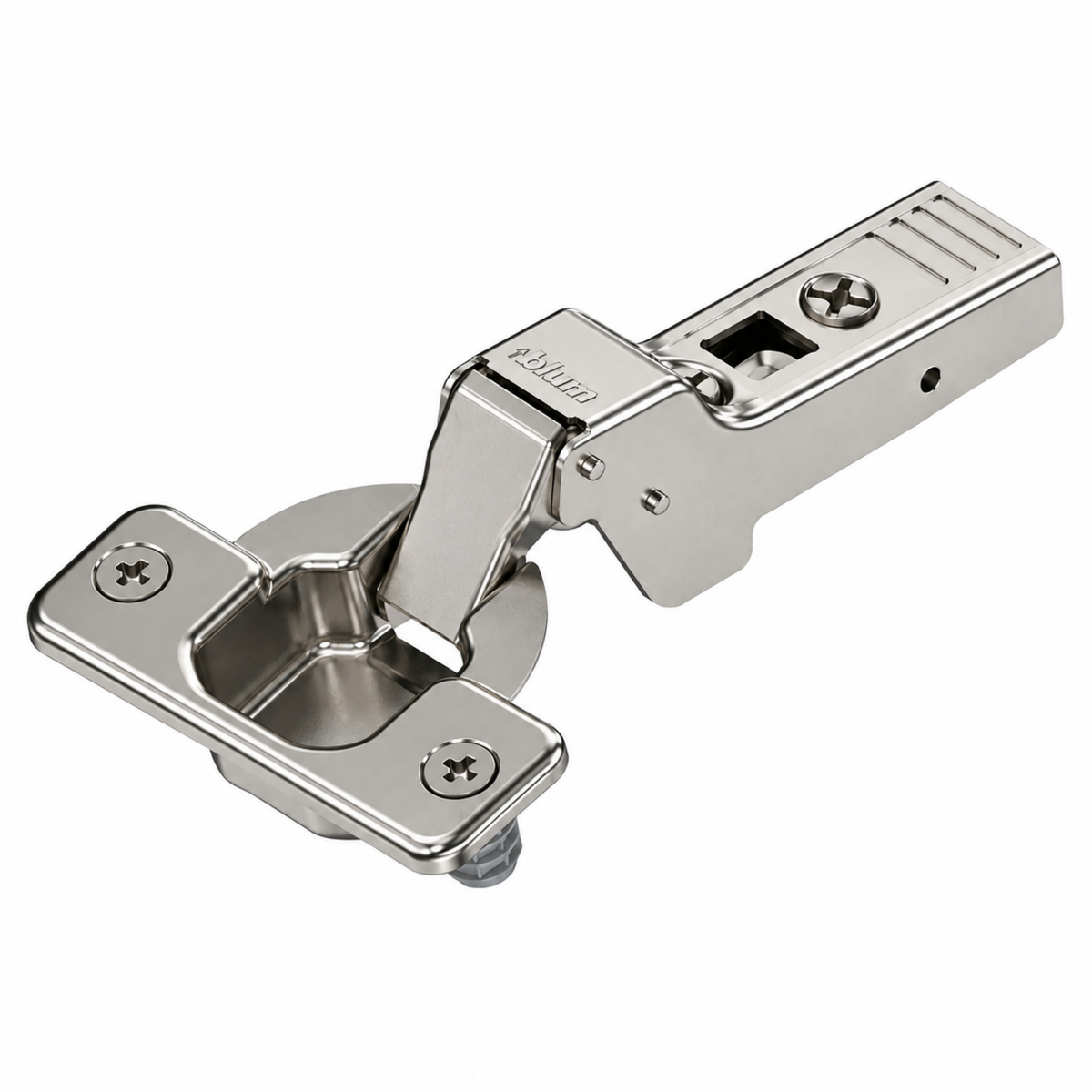

Blum CLIP top Standard Hinge 107 Degree Half Overlay Boss Knock-In BM75168 by W&B

SKU: IWBCTSH107DHOBKI

Price

$7.07

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note+

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support+

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges+

Returns are handled according to the product condition, order type and Imperial return policy.

Description+

Blum Hinge Systems – Advanced Functionality by Wilson and Bradley

Blum's innovative design and engineering set the standard for hinge systems that combine reliable performance, enhanced adjustability, and a sleek aesthetic. With 3-dimensional adjustment capabilities, our hinges offer superior ease of installation and precision.

Built to withstand over 200,000 cycles of opening and closing, Blum hinges are ideal for a wide range of applications, from wood to glass and aluminum frame doors, as well as both thin and thick doors. We also offer specialized solutions for corner configurations and angled applications.

Fully compatible with all CLIP mounting plates, our CLIP top sprung hinges provide easy adjustments in side, height, and depth using a spiral screw mechanism. Many of the mounting plates also include cam height adjustment. Door fronts can be quickly attached and removed without the need for tools.

Blum's proven CLIP mechanism ensures a simple, tool-free door-to-cabinet assembly that is both fast and reliable, ensuring smooth operation of every door equipped with Blum hinges.

Key Features:

Rigorously tested to endure over 200,000 opening and closing cycles
Suitable for a variety of door materials and thicknesses
3-dimensional adjustment for perfect alignment
Quick and tool-free assembly

Specifications:

Application: Standard hinge
Cranking: Dual application
Opening angle: 107°
Closing mechanism: Spring-assisted
Cover cap types: 94M3603, 70.1663
Boss material: Steel, nickel-plated
Boss assembly: Knock-in
Flange dimensions: 57mm (width) x 20mm (length) x 3.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric positioning: 9.5mm
Boss drilling depth: 11.5mm
Arm material: Steel, nickel-plated
Collision measurement (arm height): 31mm
Factory setting (fixed dimension): 1.5mm
Side adjustment: +/-2mm (with screw)
Depth adjustment: +3/-2mm (via spiral screw)
Gap: 1.5mm
Packaging: Industrial packing (1 piece per package)

Note: All plates are sold separately.
