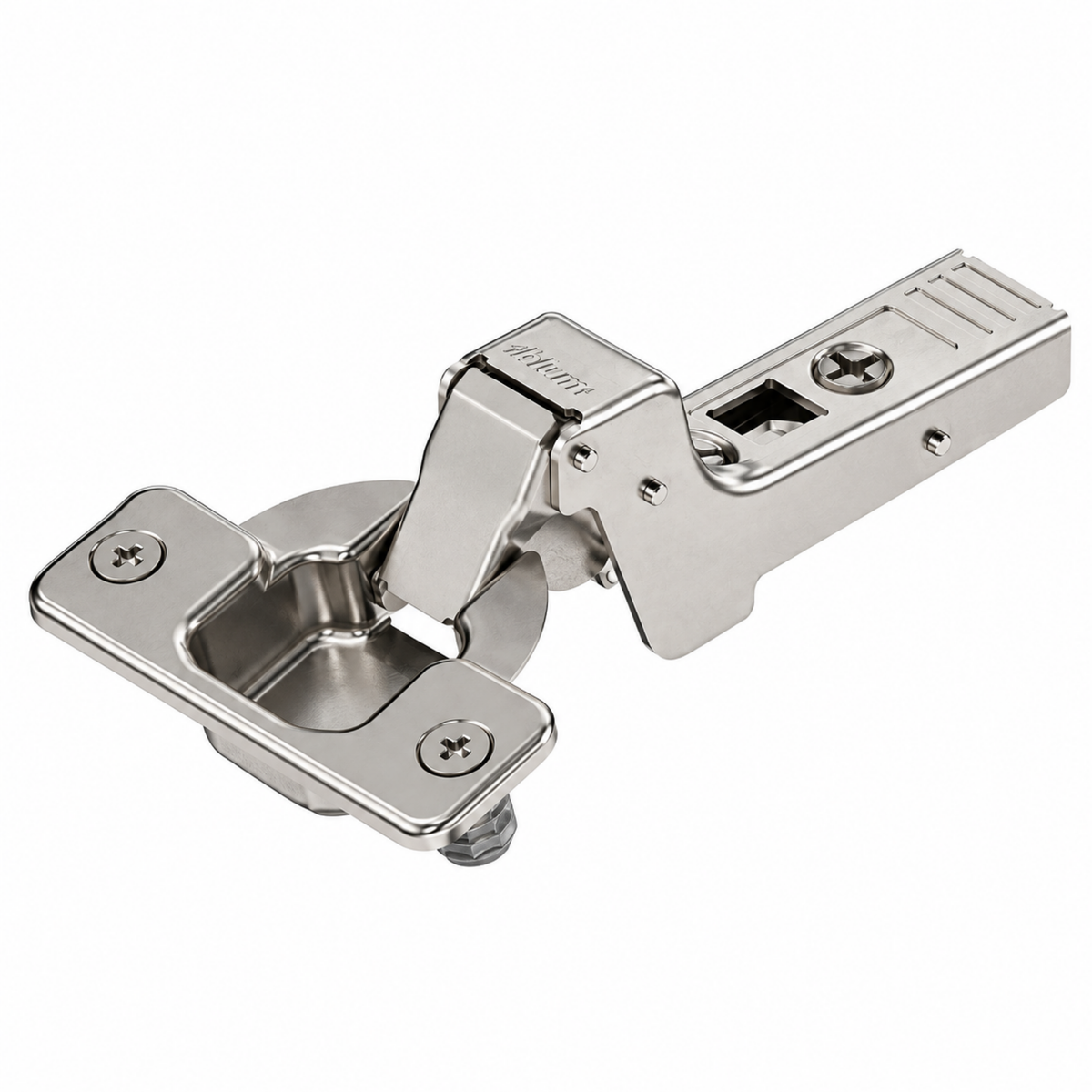

Blum CLIP top Standard Hinge 107 Degree Inset Application Boss Knock-In BM75178 by W&B

SKU: IWBCTSH107DIABKI

Price

$7.23

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note+

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support+

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges+

Returns are handled according to the product condition, order type and Imperial return policy.

Description+

Blum Hinge Systems – Advanced Functionality by Wilson and Bradley

Blum's ingenuity and engineering excellence are embodied in our innovative hinge systems. Designed for reliability, ease of adjustment, and attractive design, our hinges provide 3-dimensional adjustment for maximum flexibility in installation.

Built to endure 200,000 opening and closing cycles, our hinge systems cater to a wide range of applications, including wood, glass, and aluminium frame doors, as well as both thin and thick doors. We also offer specialized solutions for blind corner and angled applications.

Our CLIP top sprung hinges are fully compatible with all CLIP mounting plates, allowing for effortless side, height, and infinitely adjustable depth with a spiral screw mechanism. Many mounting plates offer cam height adjustments, and fronts can be easily attached or removed without tools.

Blum's time-tested CLIP mechanism ensures tool-free assembly, making the door-to-cabinet process fast and simple while guaranteeing smooth and reliable operation with every door.

Key Features:

Tested to endure 200,000 opening and closing cycles
Compatible with various door materials and thicknesses
3-dimensional adjustment for precise alignment
Easy, tool-free assembly

Specifications:

Application: Standard hinge
Cranking: Dual application
Opening angle: 107°
Closing mechanism: Spring-assisted
Cover cap types: 94M3603, 70.1663
Boss material: Steel, nickel-plated
Boss assembly: Knock-in
Flange dimensions: 57mm (width) x 20mm (length) x 3.2mm (height)
Hinge boss drilling diameter: 35mm
Fixing hole diameter: 8mm
Distance between holes: 45mm
Eccentric positioning: 9.5mm
Boss drilling depth: 11.5mm
Arm material: Steel, nickel-plated
Collision measurement (arm height): 31mm
Factory setting (fixed dimension): 1.5mm
Side adjustment: +/-2mm (with screw)
Depth adjustment: +3/-2mm (via spiral screw)
Gap: 1.5mm
Packaging: Industrial packing (1 piece per package)

Note: All plates are sold separately.
