Blum Hinge Systems by Wilson and Bradley
Blum hinges combine inventive design with practical functionality. Known for their reliability, easy adjustments, and sleek design, our hinges offer 3-dimensional adjustability for a perfect fit.
Engineered to withstand over 200,000 opening and closing cycles, Blum hinges are perfect for a wide range of applications. Whether it’s wood, glass, aluminum-frame doors, or both thin and thick doors, we provide solutions for every need. Special solutions, including configurations for blind corners and angled doors, are also available.

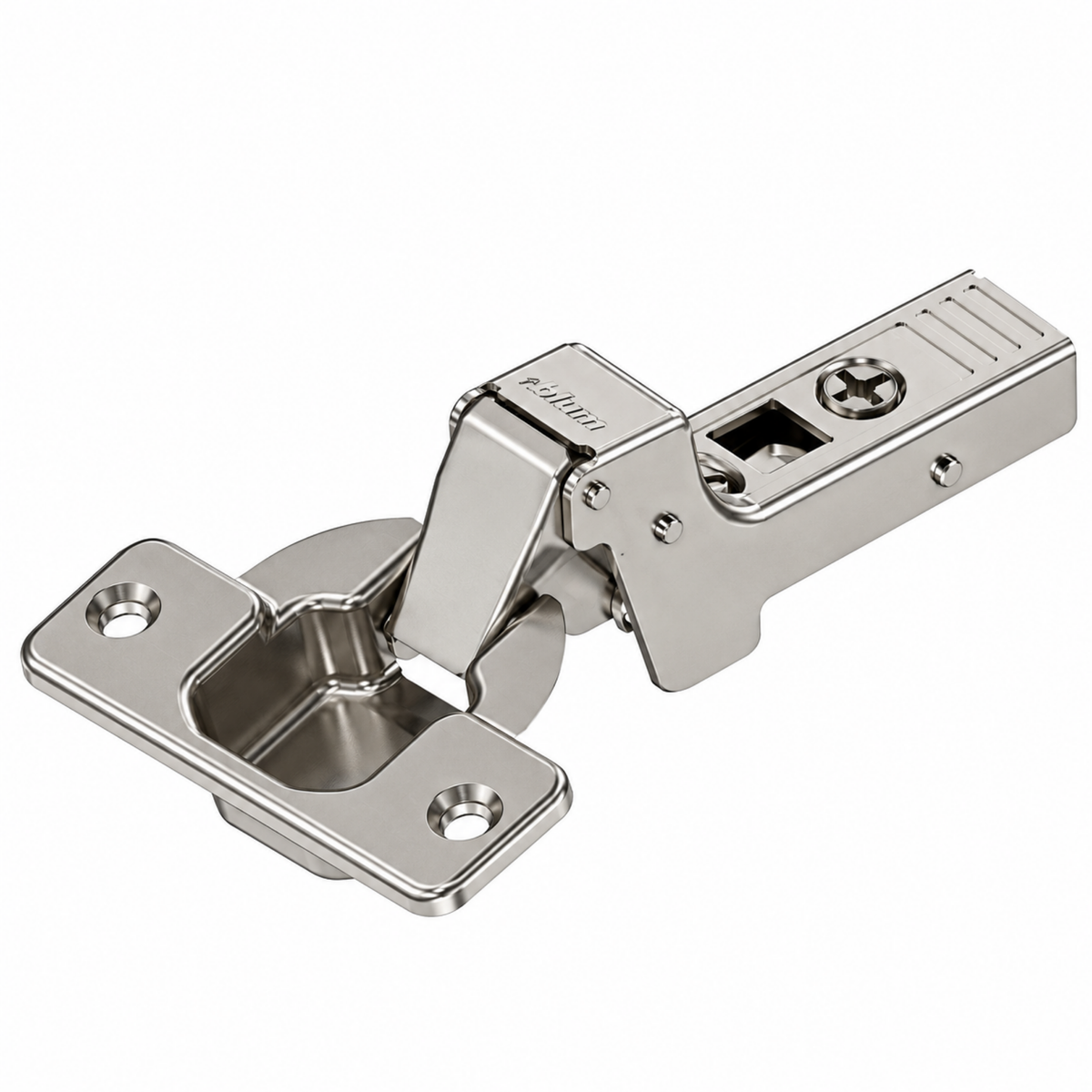

The CLIP top sprung hinge is fully compatible with all CLIP mounting plates, making installation a breeze with side, height, and infinite depth adjustments via spiral screws. Many mounting plates also feature cam height adjustments. Doors can be attached or removed quickly, without the need for tools.
Thanks to Blum’s CLIP mechanism, door-to-cabinet assembly is simple, fast, and tool-free, ensuring smooth and reliable operation every time.
Features:
- Tested durability: Withstands 200,000 opening/closing cycles
- Versatile: Suitable for various door types and materials
- 3-dimensional adjustability: Side, height, and depth can be easily customized
- Effortless assembly: Quick and tool-free with the CLIP system
Specifications:
- Application: Standard hinge for overlay doors
- Opening Angle: 107°
- Closing Mechanism: Spring-assisted
- Cover Cap Types: 94M3603, 70.1503 (BPC10021)
- Boss Material: Steel, nickel-plated
- Boss Assembly: Screw-on
- Flange Dimensions: 57mm (width), 30.5mm (length), 3.2mm (height)
- Hinge Boss Drilling: Diameter 35mm, Drilling Depth 11.5mm
- Drill Hole Spacing: 45mm, eccentric position (9.5mm)
- Side Adjustment: +/- 2mm via screw
- Depth Adjustment: +3/-2mm with spiral screw
- Gap: 1.5mm
- Packaging: 1 piece (industrial packing)
Note: Plates sold separately.
