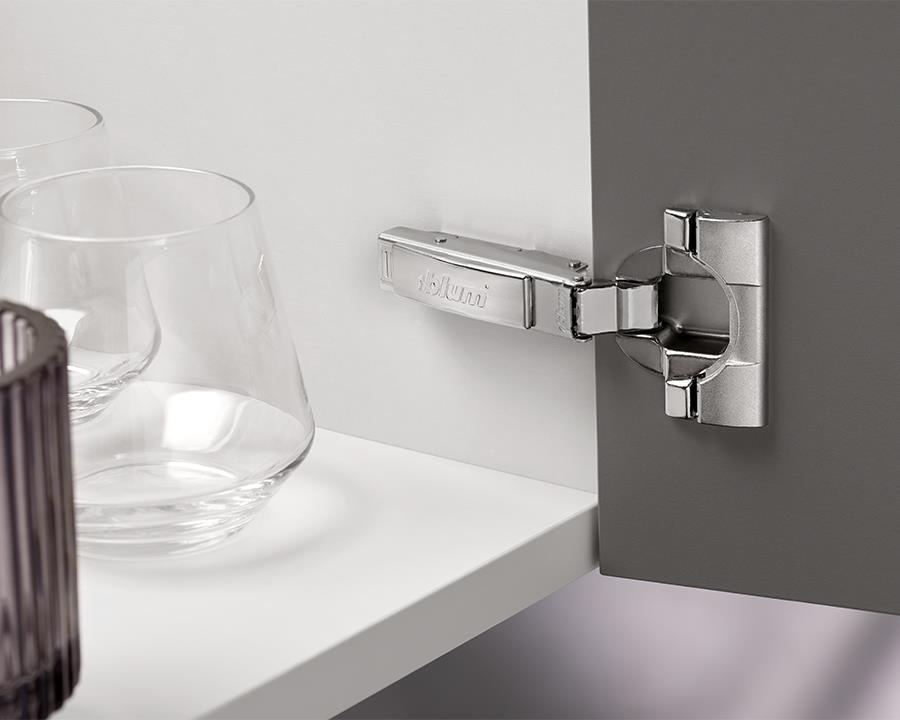

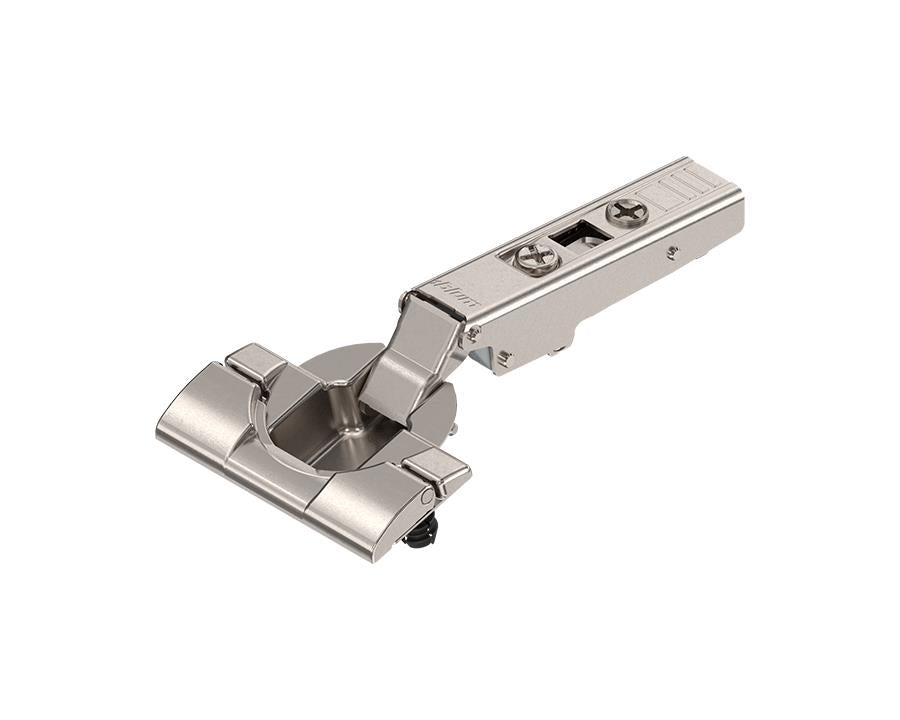

Blum Hinge Systems: Precision, Functionality, and Innovative Design by Wilson & Bradley
Blum’s hinge systems combine ingenuity and precision, providing reliable functionality, easy adjustment, and an attractive design. With 3-dimensional adjustment, Blum hinges deliver unmatched flexibility, making them the ideal solution for various applications, from wood and glass to aluminum frame doors, as well as both thin and thick doors. We also offer customized solutions for blind corner and angled doors.
Blum’s TIP-ON motion technology allows for sleek, handle-free fronts, while the time-tested CLIP mechanism ensures quick, tool-free assembly of doors to cabinets. With these hinges, every door opens and closes with effortless reliability, making Blum the go-to choice for modern cabinetry solutions.
Key Features:
- Tested to endure over 200,000 opening and closing cycles
- Ideal for all types of doors, including wood, glass, and aluminum
- TIP-ON technology for handle-less front designs
- Easy 3-dimensional adjustment for precise door alignment
- CLIP mechanism for fast, tool-free assembly
Technical Specifications:
- Application: Standard hinge
- Cranking: Overlay application
- Opening angle: 110°
- Closing mechanism: Unsprung
- Hinge variant: With free movement for TIP-ON
- Cover cap types: 90M2503, 70.1503
- Boss material: Steel
- Boss finish: Nickel plated
- Boss assembly: Inserta
- Flange dimensions:
- Width: 57mm
- Length: 27.5mm
- Height: 6.4mm
- Hinge boss drilling diameter: 35mm
- Fixing holes diameter: 8mm
- Distance between drillings: 45mm
- Eccentric position of fixing holes to hinge boss hole: 9.5mm
- Boss drilling depth: 13mm
- Minimum drilling distance: 3mm
- Maximum drilling distance: 7mm
- Arm material: Steel
- Arm finish: Nickel plated
- Collision measurement (hinge arm height): 21.5mm
- Fixed dimension/factory setting: 11mm
- Side adjustment: +/- 2mm (with screw)
- Depth adjustment: Convenient with spiral screw (+3/-2mm)
- Gap: 1.5mm
- Item package: 1 piece
- Packaging: Commercial packing
Note: All plates are sold separately
