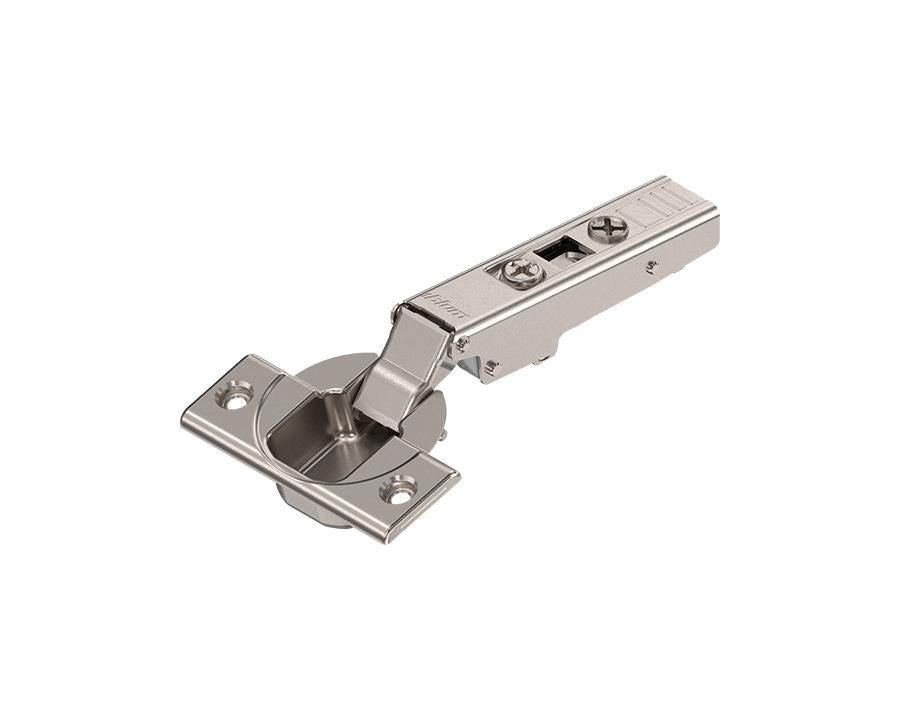

Blum Hinge Systems: Precision, Innovation, and Seamless Functionality by Wilson & Bradley
Wilson & Bradley presents Blum's exceptional hinge systems, crafted with innovative engineering to provide unmatched reliability, flexibility, and ease of installation. Featuring 3-dimensional adjustment, Blum's hinges offer superior precision for a variety of applications, including wood, glass, and aluminum frame doors, as well as both thin and thick doors. Designed to endure over 200,000 opening and closing cycles, they are perfect for various configurations, including blind corner and angled doors.
Blum’sTIP-ON motion technology allows for elegant, handle-less front designs, while the CLIP system ensures easy, tool-free assembly. With Blum hinges, every door opens and closes smoothly, delivering a seamless and reliable user experience.
Key Features:
Tested to endure over 200,000 cycles of opening and closing
Ideal for a wide range of materials, including wood, glass, and aluminum
TIP-ON technology enables handle-less doors
3-dimensional adjustment for precise alignment
CLIP mechanism for easy, tool-free assembly
Technical Specifications:
Application: Standard hinge
Cranking: Overlay application
Opening angle: 110°
Closing mechanism: Unsprung
Hinge variant: With free movement for TIP-ON
Cover cap types: 90M2503, 70.1503, 70T3504 (boss cover cap)
Boss material: Steel
Boss finish: Nickel plated
Boss assembly: Screw-on
Flange dimensions:
Width: 57mm
Length: 22mm
Height: 3.2mm
Hinge boss drilling diameter: 35mm
Fixing holes diameter: 8mm
Distance between drillings: 45mm
Eccentric position of fixing holes to hinge boss hole: 9.5mm
Boss drilling depth: 13mm
Minimum drilling distance: 3mm
Maximum drilling distance: 7mm
Arm material: Steel
Arm finish: Nickel plated
Collision measurement (hinge arm height): 21.5mm
Fixed dimension/factory setting: 11mm
Side adjustment: +/- 2mm (with screw)
Depth adjustment: Convenient with spiral screw (+3/-2mm)
