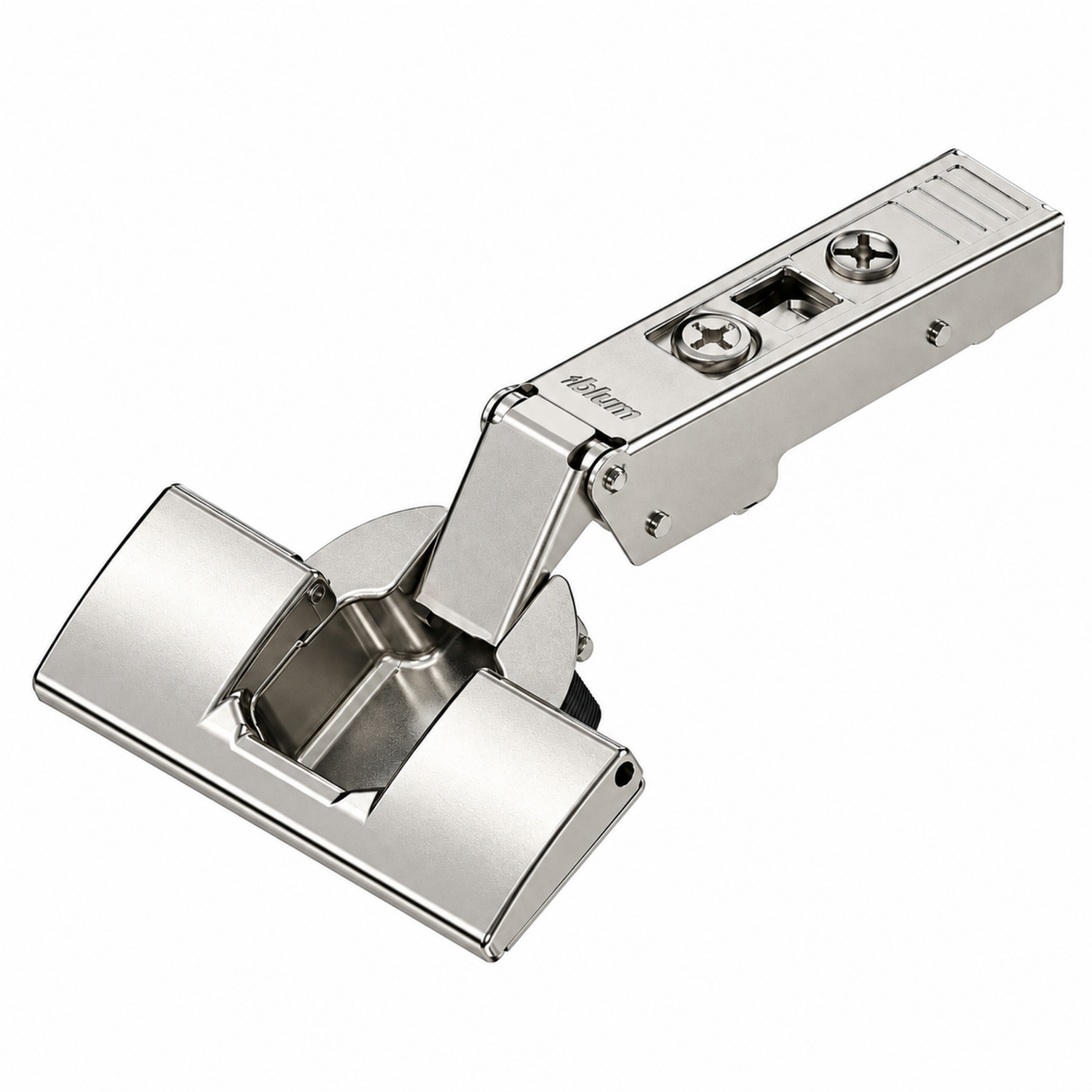

Blum Hinge Systems – Advanced Functionality by Wilson and Bradley
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable performance, enhanced adjustability, assembly ease, and attractive design. With 3-dimensional adjustability, Blum hinges ensure precise alignment, making installation and functionality simpler than ever.
Built to endure over 200,000 opening and closing cycles, our hinge range accommodates a variety of applications, including wood, glass, and aluminum frame doors, as well as thin and thick doors. We also provide specialized solutions for blind corner and angled door applications.
Features like INSERTA and the CLIP attachment mechanism make attaching the hinge to the door and mounting plate easy, with quick, tool-free installation. Blum offers a variety of boring and insertion machines, assembly aids, and templates to help make Blum products quick, accurate, and easy to install.
Blum’s trusted CLIP mechanism allows door-to-cabinet assembly to be tool-free, fast, and efficient, ensuring every door opens and closes smoothly.
Key Features:
- Rigorously tested to withstand over 200,000 opening and closing cycles
- Suitable for all applications
- 3-dimensional adjustment for optimal door alignment
- Tool-free, quick assembly and adjustment
Specifications:
- Application: Standard hinge
- Cranking: Overlay application
- Opening angle: 120°
- Closing mechanism: Spring-assisted
- Cover cap types: 90M2503, 70.1503 (BPC10021)
- Boss material: Steel, nickel-plated
- Boss assembly: INSERTA
- Flange dimensions: 65mm (width) x 23mm (length) x 7mm (height)
- Hinge boss drilling diameter: 35mm
- Fixing hole diameter: 8mm
- Eccentric positioning: 9.5mm
- Boss drilling depth: 12.8mm
- Arm material: Steel, nickel-plated
- Collision measurement (hinge arm height): 20.5mm
- Factory setting (fixed dimension): 11mm
- Side adjustment: +/-2mm (via screw)
- Depth adjustment: +3/-2mm (via spiral screw)
- Gap: 1.5mm
- Packaging: Industrial packing (1 piece per package)
Note: All plates are sold separately.
