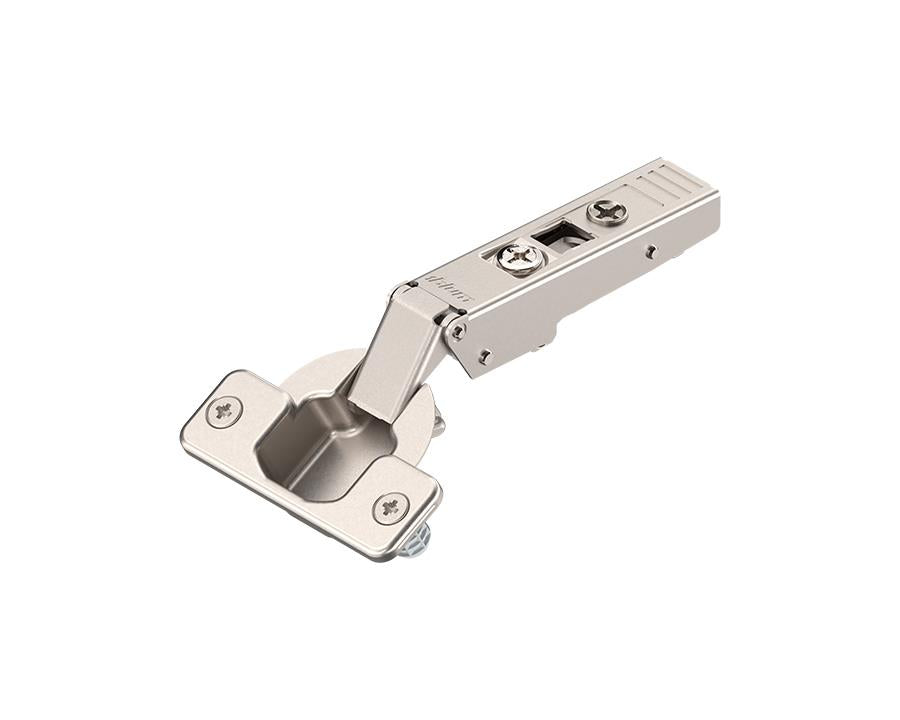

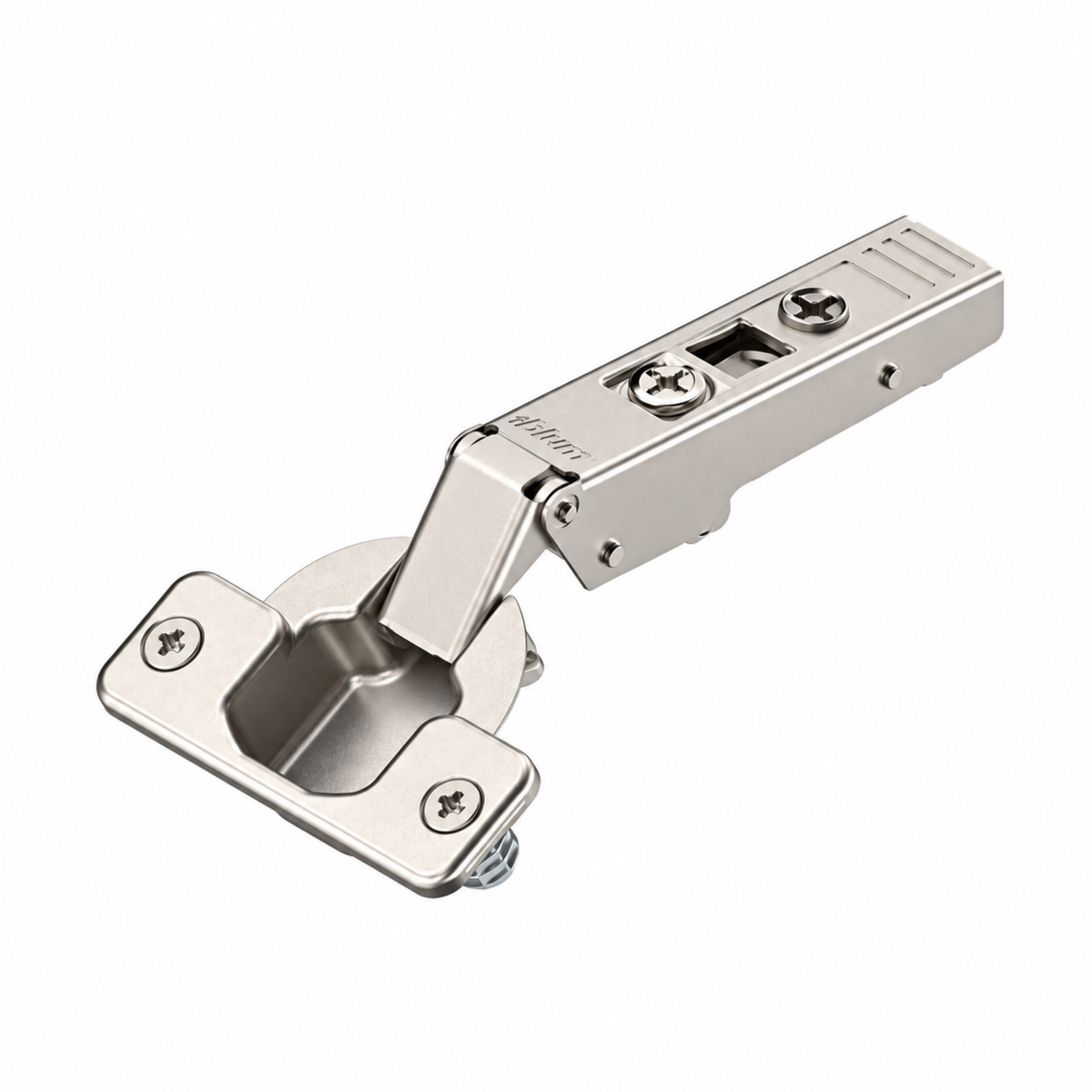

Blum Hinge Systems – Advanced Functionality by Wilson and Bradley
Blum combines innovation and technical excellence to deliver hinge systems that offer unique functionality. Our hinges provide reliability, easy adjustability, effortless assembly, and a sleek, modern design. Featuring 3-dimensional adjustability, Blum hinges ensure precision alignment for every door.
Engineered for durability, Blum hinges are rigorously tested to last over 200,000 opening and closing cycles. They are suitable for a wide range of applications, including wood, glass, aluminum frame doors, and both thin and thick doors. We also offer specialized solutions for blind corner and angled installations.
Compatible with all CLIP mounting plates, Blum’s CLIP top sprung hinges allow quick, easy adjustment for side, height, and depth using a spiral screw. Additionally, some mounting plates provide cam height adjustment, ensuring flawless front attachment and removal without the need for tools.
Blum’s proven CLIP mechanism ensures fast, tool-free door-to-cabinet assembly, giving you dependable, smooth operation on every door equipped with Blum hinges.
Key Features:
- Tested to withstand 200,000+ opening and closing cycles
- Ideal for a wide range of applications
- 3-dimensional adjustment for perfect door alignment
- Easy installation and adjustment
Specifications:
- Application: Standard hinge
- Cranking: Overlay application
- Opening angle: 120°
- Closing mechanism: Spring-assisted
- Cover cap types: 90M2503, 70.1503 (BPC10021)
- Boss material: Steel, nickel-plated
- Boss assembly: Knock-in
- Flange dimensions: 57mm (width) x 20mm (length) x 3.2mm (height)
- Hinge boss drilling diameter: 35mm
- Fixing hole diameter: 8mm
- Hole distance: 45mm
- Eccentric position: 9.5mm
- Boss drilling depth: 12.6mm
- Arm material: Steel, nickel-plated
- Collision measurement (arm height): 20.5mm
- Factory setting (fixed dimension): 11mm
- Side adjustment: +/-2mm (via screw)
- Depth adjustment: +3/-2mm (via screw)
- Gap: 1.5mm
- Packaging: Industrial packing (1 piece)
Note: All plates are sold separately.
