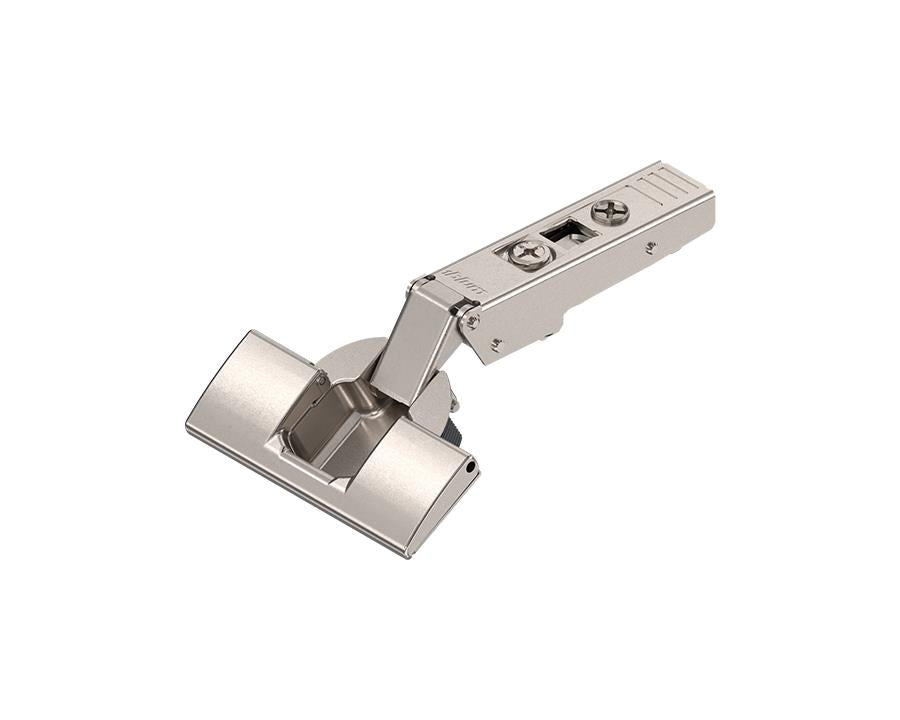

Blum Hinge Systems: Innovation, Precision, and Effortless Functionality by Wilson and Bradley
Blum’s hinge systems are crafted with ingenuity and inventive engineering, delivering exceptional functionality, design, and ease of use. With 3-dimensional adjustment, our hinges offer unparalleled flexibility in installation. Built to withstand over 200,000 opening and closing cycles, they are ideal for various door applications including wood, glass, and aluminum frames, as well as both thin and thick doors. We also provide specialized solutions for blind corner and angled doors.
Blum's TIP-ON motion technology allows for sleek, handle-less fronts, while our proven CLIP mechanism ensures a tool-free, quick, and easy assembly of doors to cabinets. Every door equipped with Blum hinges opens and closes smoothly, ensuring reliable operation every time.
Key Features:
Tested to endure over 200,000 opening and closing cycles
Ideal for a wide variety of applications, including wood, glass, and aluminum
TIP-ON technology allows for handle-free fronts
3-dimensional adjustment for precise door alignment
Simple, tool-free assembly with CLIP mechanism
Technical Specifications:
Application: Standard hinge

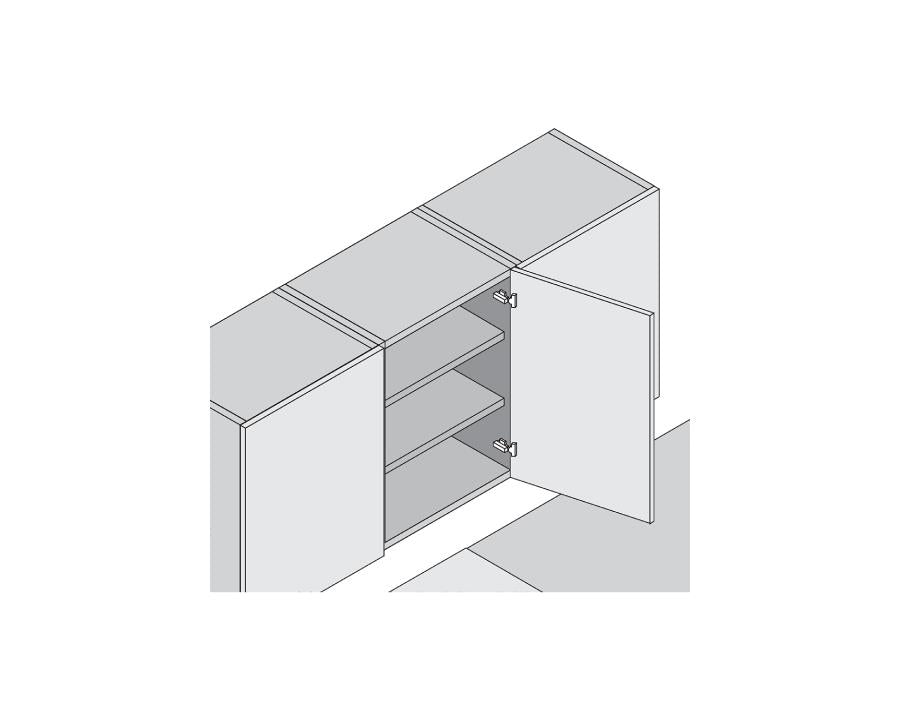

Cranking: Overlay application
Opening angle: 120°
Closing mechanism: Unsprung
Hinge variant: With free movement for TIP-ON
Cover cap types: 90M2503, 70.1503
Boss material: Steel
Boss finish: Nickel plated
Boss assembly: Screw-on
Flange dimensions:
Width: 65mm
Length: 23mm
Height: 7mm
Hinge boss drilling diameter: 35mm
Fixing holes diameter: 8mm
Distance between drillings: 45mm
Eccentric position of fixing holes to hinge boss hole: 9.5mm
Boss drilling depth: 12.8mm
Minimum drilling distance: 3mm
Maximum drilling distance: 6mm
Arm material: Steel
Arm finish: Nickel plated
Collision measurement (hinge arm height): 20.5mm
Fixed dimension/factory fitting: 11mm
Side adjustment: +/- 2mm (with screw)

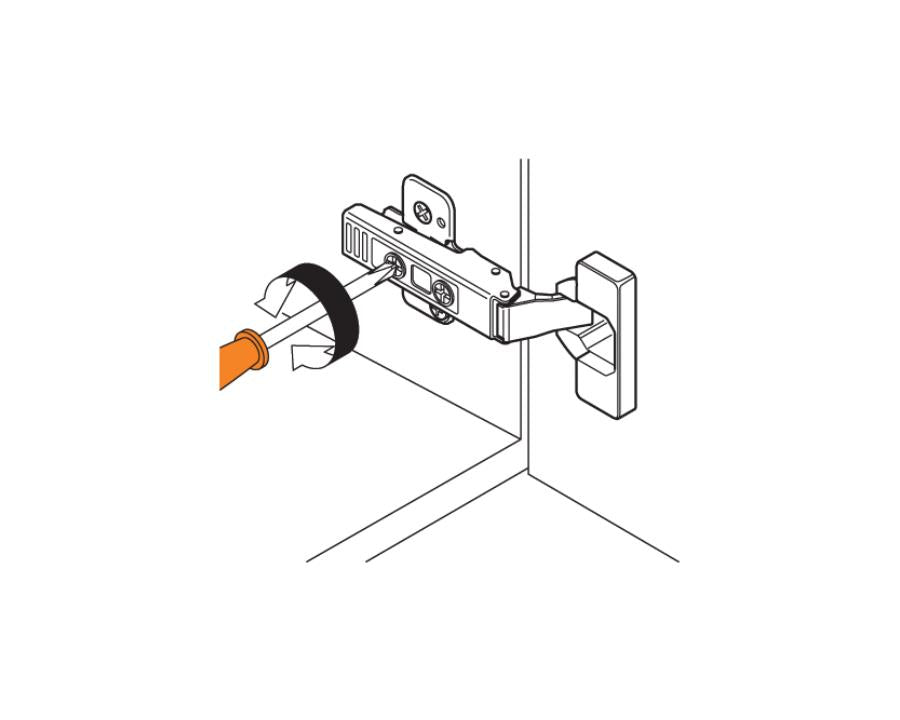

Depth adjustment: Convenient with spiral screw (+3/-2mm)
