SKU:IWBCTSH12070T5550.Tl

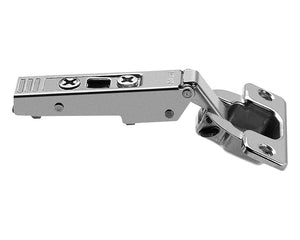

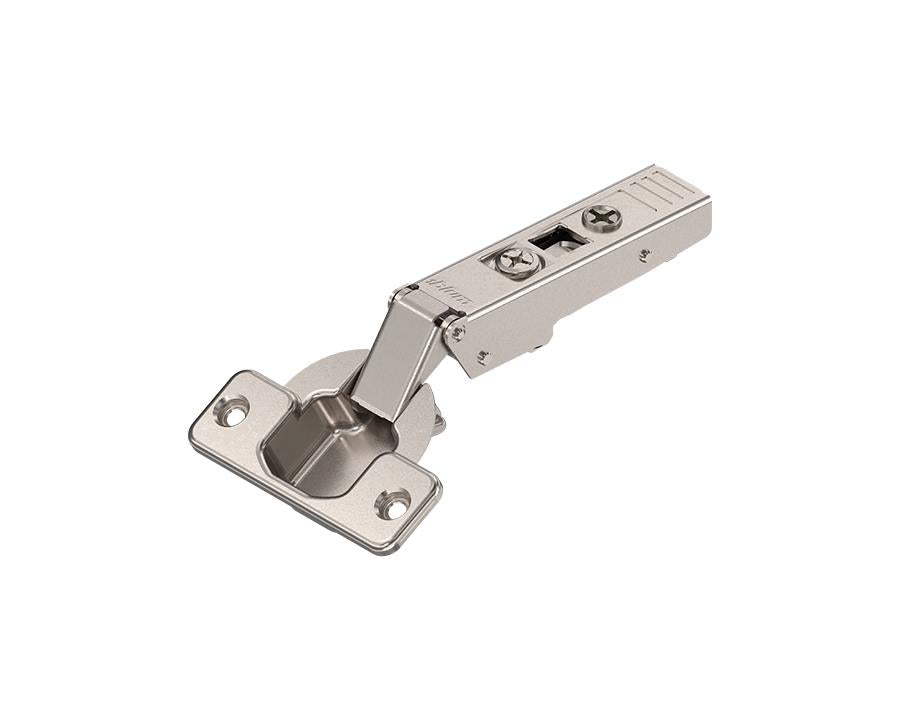

Blum CLIP top Standard Hinge 120 Degrees. Unsprung, Screw-On 70T5550.Tl *For Use with AVENTOS* by W&B

Blum CLIP top Standard Hinge 120 Degrees. Unsprung, Screw-On 70T5550.Tl *For Use with AVENTOS* by W&B

Regular price $5.90 AUD
Regular price Sale price $5.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Blum Hinge Systems: Precision, Durability, and Innovation by Wilson and Bradley

Blum’s hinge systems embody inventive design and reliable functionality, offering 3-dimensional adjustability for precision alignment. Engineered to withstand over 200,000 opening and closing cycles, these hinges are perfect for a wide variety of applications, including wood, glass, and aluminum frame doors, as well as both thin and thick materials. Blum also provides specialized solutions for unique applications such as blind corner and angled door installations.

Blum’s TIP-ON motion technology facilitates handle-less fronts, giving you the freedom to create modern, minimalist designs without sacrificing ease of use. Additionally, Blum’s CLIP mechanism ensures that door-to-cabinet assembly is quick, tool-free, and simple. Every door equipped with Blum hinges opens and closes effortlessly, providing reliable functionality and smooth operation.

Key Features:

  • Tested to exceed 200,000 opening and closing cycles for durability
  • Suitable for a wide range of door applications including wood, glass, and aluminum
  • TIP-ON motion technology enables handle-less front designs
  • 3-dimensional adjustability for precision installation
  • Easy assembly and adjustments for streamlined processes

Technical Specifications:

  • Application: Standard hinge

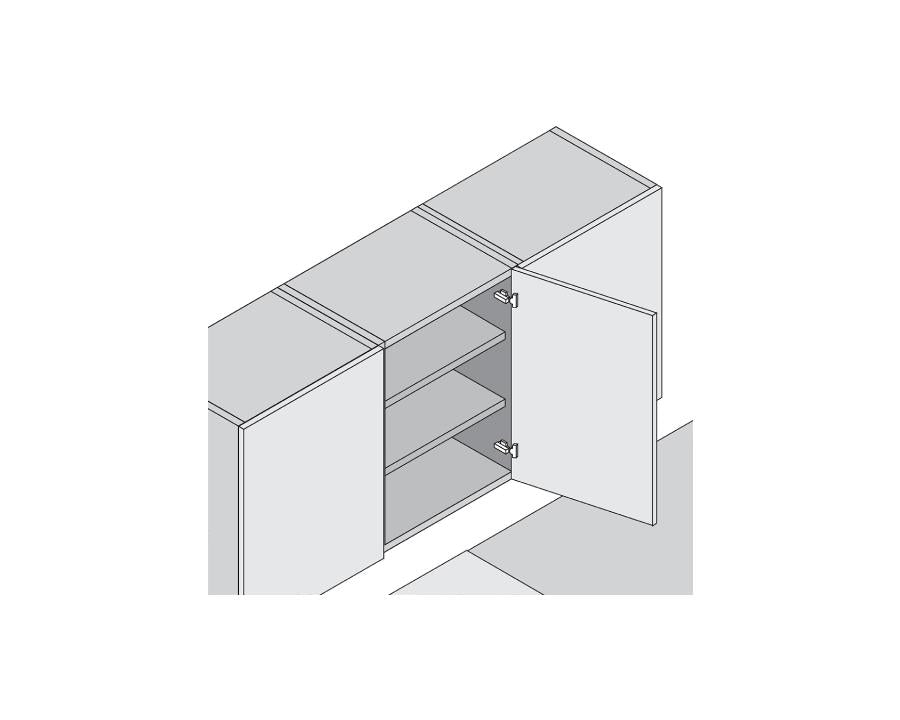

  • Cranking: Overlay application
  • Opening angle: 120°
  • Closing mechanism: Unsprung
  • Hinge variant: With free movement for TIP-ON
  • Cover cap types: 90M2503, 70.1503
  • Boss material: Steel
  • Boss finish: Nickel plated

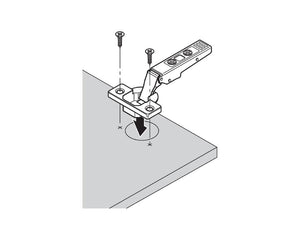

  • Boss assembly: Screw-on
  • Flange dimensions:
    • Width: 57mm
    • Length: 22mm
    • Height: 3.2mm
  • Hinge boss drilling diameter: 35mm
  • Distance between drillings: 45mm
  • Eccentric position of fixing holes to hinge boss hole: 9.5mm
  • Boss drilling depth: 12.6mm
  • Minimum drilling distance: 3mm
  • Maximum drilling distance: 6mm
  • Arm material: Steel
  • Arm finish: Nickel plated
  • Collision measurement (hinge arm height): 20.5mm
  • Fixed dimension/factory fitting: 11mm

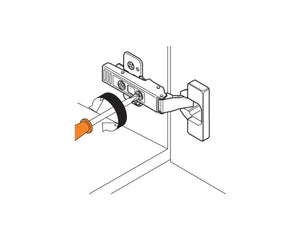

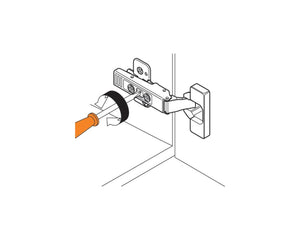

  • Side adjustment: +/- 2mm with screw

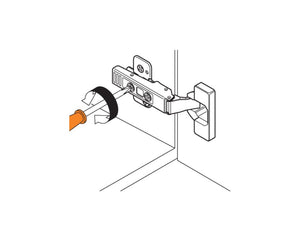

  • Depth adjustment: Convenient with spiral screw (+3/-2mm)
  • Gap: 1.5mm
  • Item package: 1 piece
  • Packaging: Commercial packing

Note: All plates are sold separately
