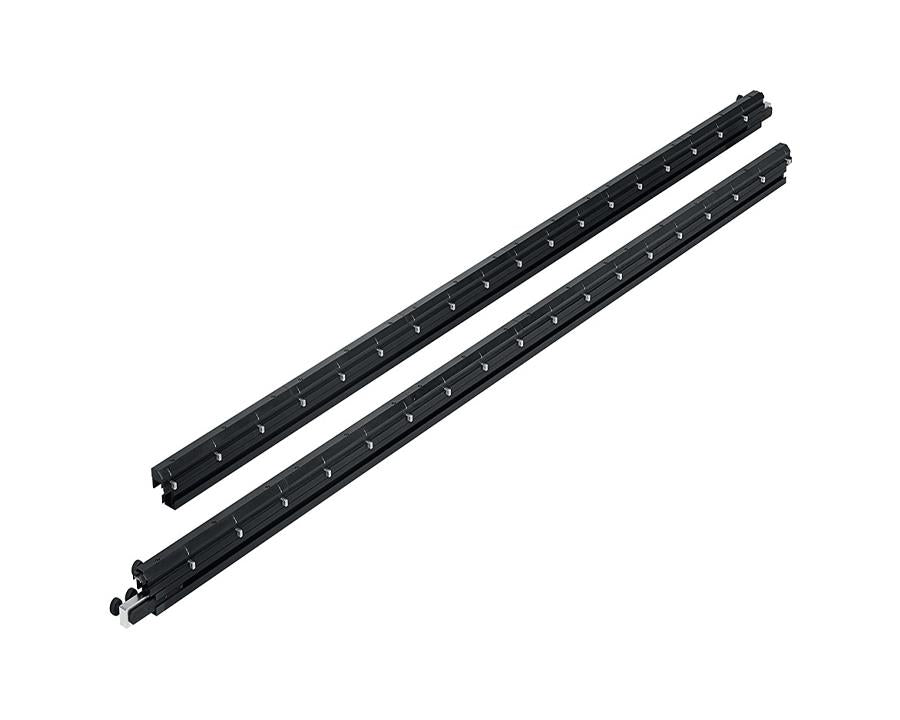

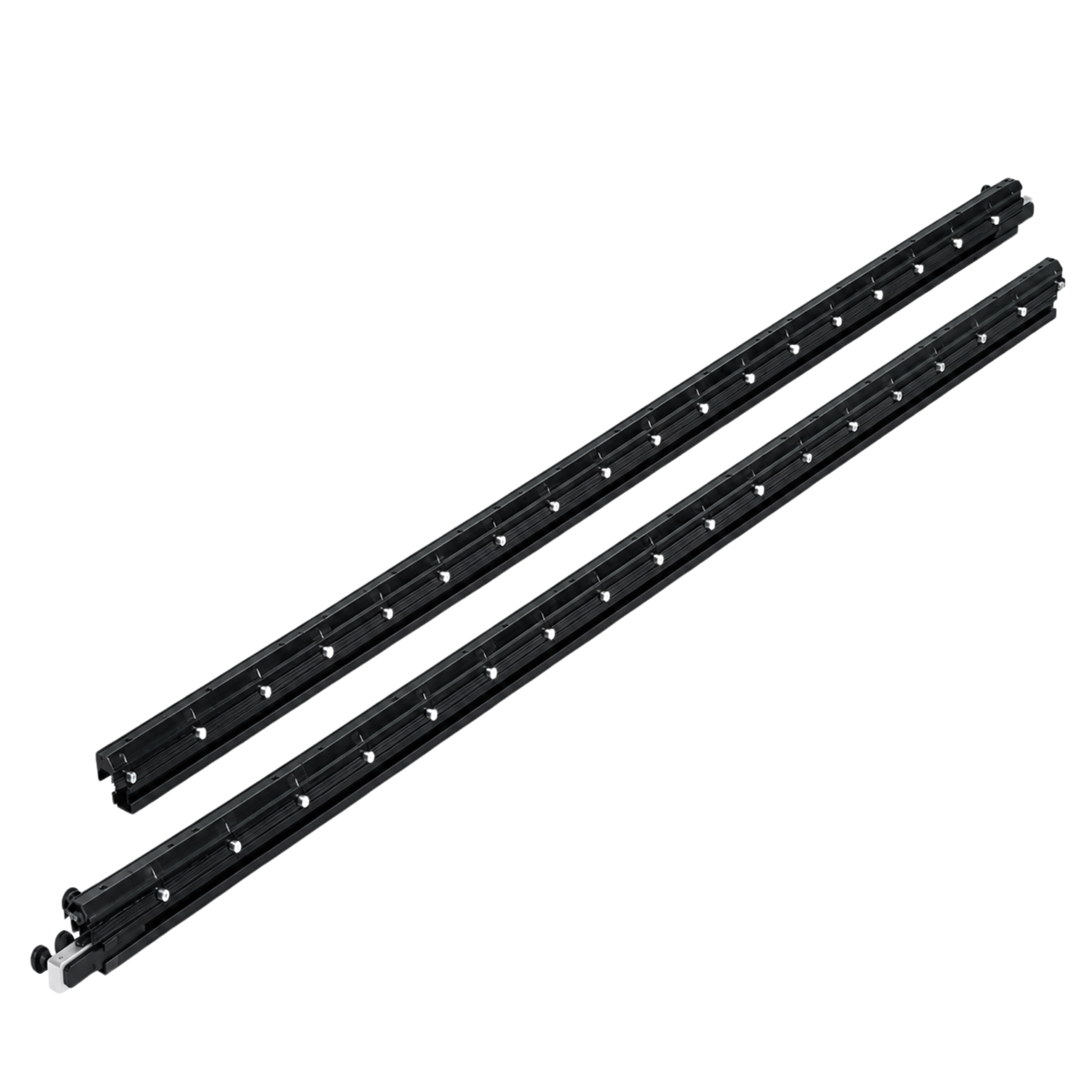

Blum EASYSTICK Extension Ruler for MINIPRESS PRO MINIPRESS P and MINIPRESS top Left and Right Hand MZD.2V00 by W&B

SKU: IWBESERMPLAR

Price

$2,956.57

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note+

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support+

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges+

Returns are handled according to the product condition, order type and Imperial return policy.

Description+

MINIPRESS P Drilling and Insertion Machine by Wilson and Bradley

The MINIPRESS P by Wilson and Bradley is a high-precision machine engineered specifically for Blum product assembly, offering excellent drilling and insertion accuracy. Whether you're handling front assemblies or intricate fitting installations, the MINIPRESS P ensures top-tier efficiency and reliability.

With a pneumatic feed system for smooth operation and an adjustable spindle for precise drilling distances, this machine guarantees both safety and accuracy. The MINIPRESS P is equipped with a multi-swivel gearbox that enables easy and tool-free adjustments to various drilling patterns, providing the flexibility to tackle different furniture assembly tasks. Additionally, its ability to insert Blum fittings with precision makes it a must-have in any workshop. The option to retrofit with EASYSTICK enhances automation, allowing for movable stops in the X-axis for even greater efficiency.

With the MINIPRESS P, you can achieve fast, reliable, and precise assembly every time, backed by Blum’s lifetime product guarantee.

Features:

Vertical drilling and insertion of Blum fittings
Adjustable spindle for precise drilling distance settings
Pneumatic feed for smooth, consistent operation

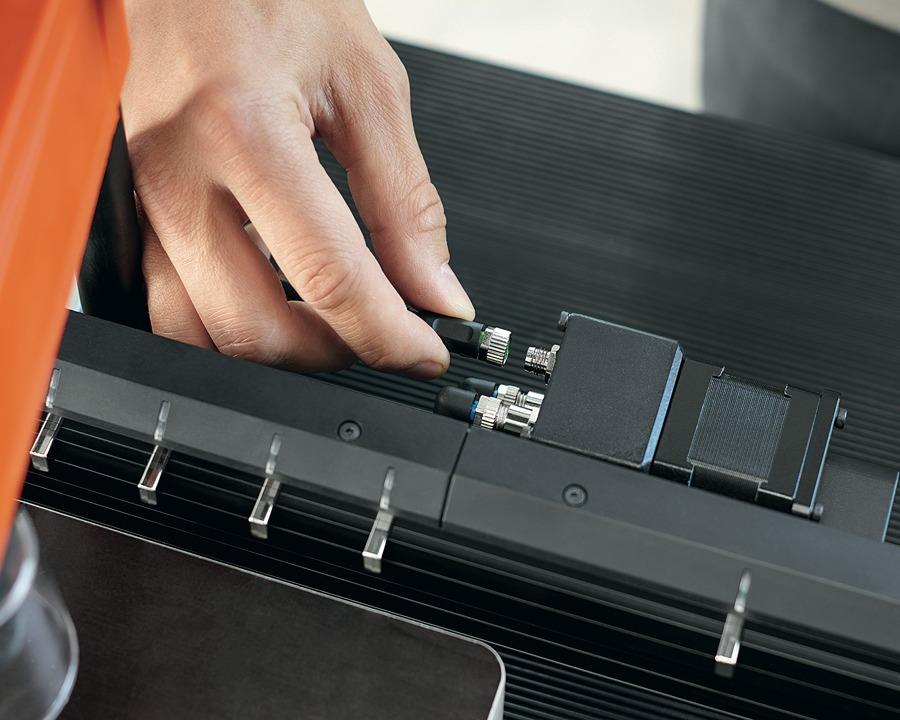

EASYSTICK retrofit option for automatic stops in the X axis
9-spindle drilling head for efficient line drilling within the 32 mm tier system
8-spindle drilling head for AVENTOS lift mechanisms, box front fixings, and cabinet profiles

Specifications:

Type of Machine: EASYSTICK extension ruler
Assembly Device Variation: Assembly device accessories
Suitable for:
- EASYSTICK
- MINIPRESS TOP
- MINIPRESS P
Maximum Width: 5406 mm
Possible Stop Positions: 953 to 2681 mm
Number of Stop Positions: 18
Distance Between Stop Positions: 96 mm
Material: Steel/zinc/aluminium/plastic
EASYSTICK/Ruler Connection: Tool-free
Colour/Finish: Black
Model: 2019
Certification: CE declaration of conformity
Maximum Wood Thickness: Depending on machine used
Nominal Voltage: 24V
Nominal Current: 0.2A
Motor Performance: 0.0048 kW
Accessories for Assembly Devices: Tool set
Net Weight: 0.59 kg
Item Package: Right + Left
Dimensions (Height/Width/Depth): 54.1 mm / 1788.4 mm / 59.7 mm (during transportation)

Installation & documents+

Technical brochures, installation guides, sizing diagrams and product documents can appear here when available.

Product Overview Programme Brochure
