MINIPRESS P Drilling and Insertion Machine by Wilson and Bradley
Blum drilling and insertion machines are designed for accurate and efficient installation of Blum fittings. They provide precise drilling, easy setup, and straightforward operation for various furniture assembly applications.
MINIPRESS P is designed for front assembly, delivering reliable drilling and insertion performance. It features a pneumatic feed system and spindle-based drilling distance adjustment for safe, accurate, and consistent results.
The multi-swivel gearbox allows quick, tool-free adjustments for different drilling patterns. MINIPRESS P also simplifies the insertion of Blum fittings, helping improve accuracy and workshop efficiency.

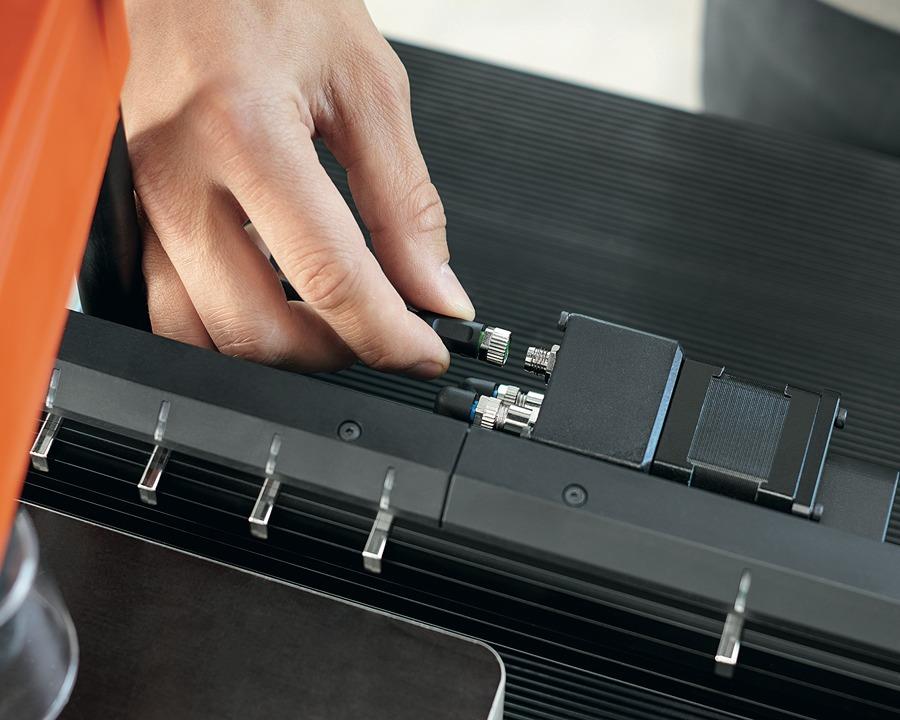

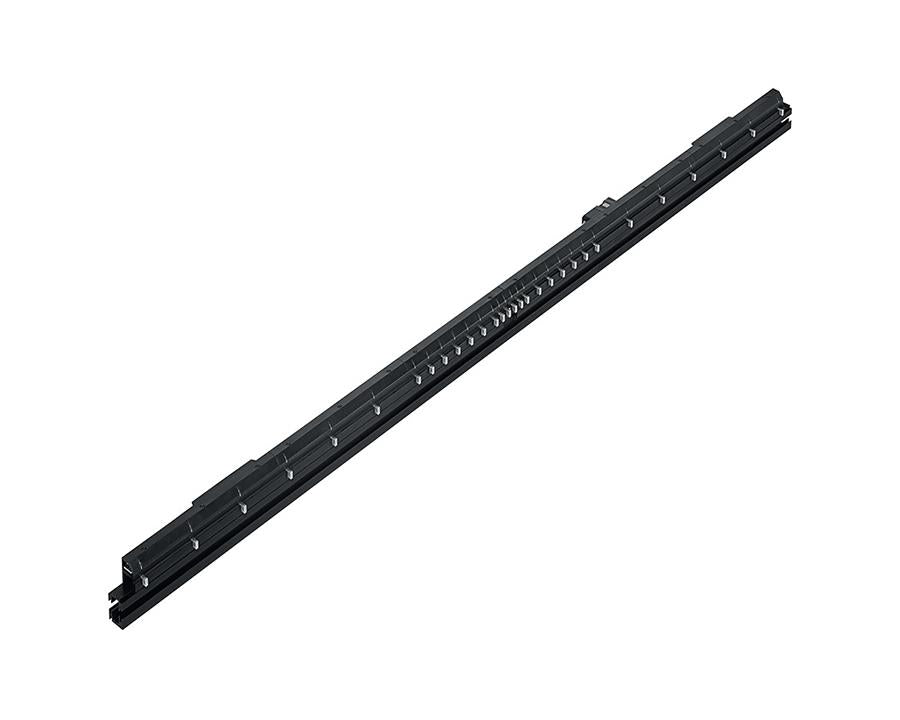

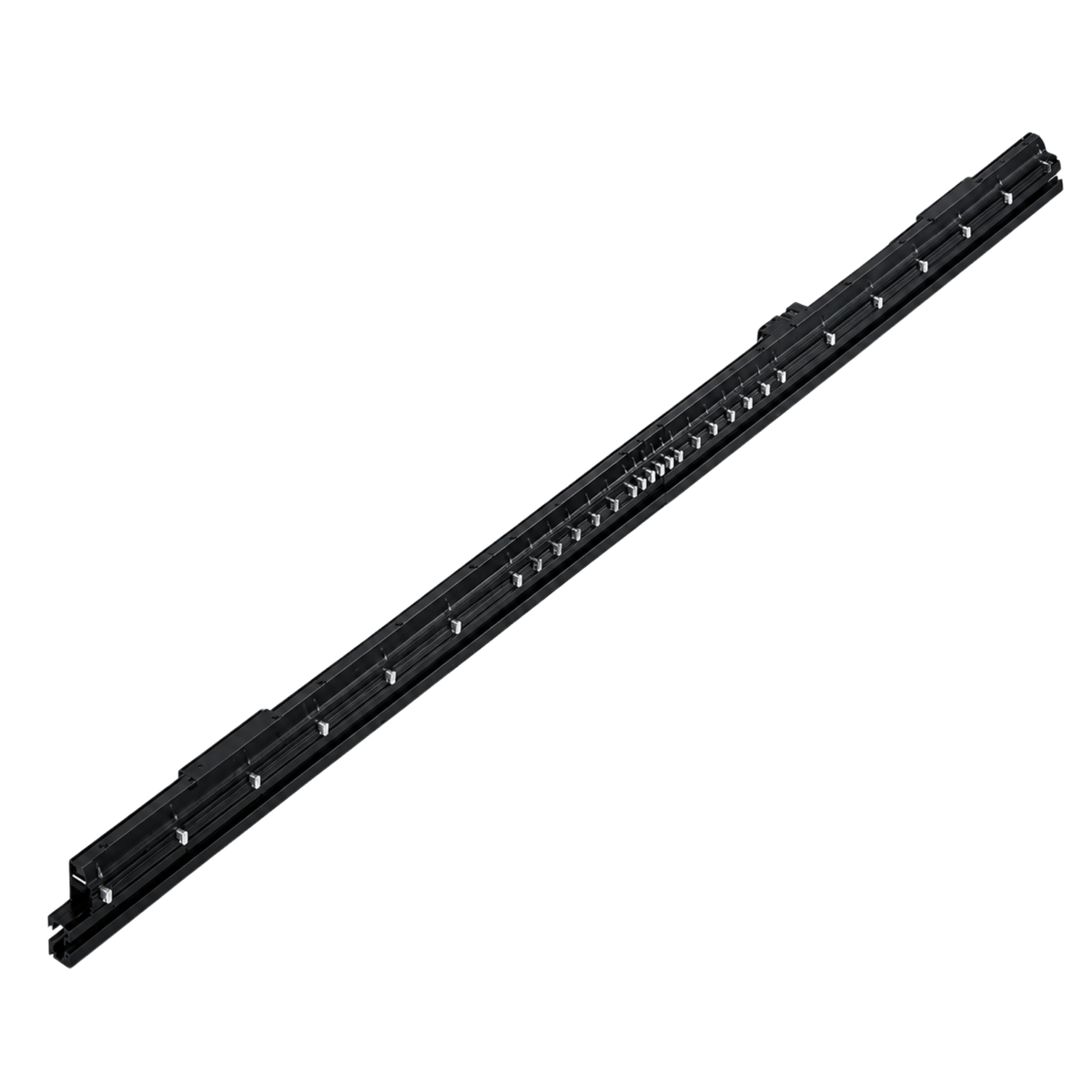

The EASYSTICK ruler is designed for use with MINIPRESS PRO and MINIPRESS P machines. It supports accurate stop positioning for vertical drilling applications, helping improve precision and efficiency during furniture assembly. With multiple stop positions and spacing options, it offers flexibility for different drilling requirements.
Features
Vertical Drilling and Insertion: Compatible MINIPRESS machines support precise vertical drilling and installation of Blum fittings.
Spindle-Based Distance Adjustment: MINIPRESS P allows accurate drilling distance settings using a spindle mechanism.
Pneumatic Feed System: MINIPRESS P provides controlled pneumatic feed for drilling and fitting insertion.
EASYSTICK Compatibility: MINIPRESS P can be optionally retrofitted with EASYSTICK for improved drilling and assembly efficiency.
Automatic X-Axis Stops: EASYSTICK enables optional automatically movable stops along the X-axis.
9-Spindle Drilling Head: Supports efficient line drilling within the 32 mm system.
8-Spindle Drilling Head: Designed for assembling AVENTOS lift mechanisms, box front fixings, and cabinet profiles.
Multiple Stop Positions: The EASYSTICK ruler provides 15 stop positions for accurate drilling alignment.
Flexible Stop Spacing: Supports distances of 16 mm, 32 mm, and 96 mm between stop positions.
Specifications
Type of Machine: EASYSTICK Ruler
Assembly Device Variation: EU
Suitable For: MINIPRESS PRO, MINIPRESS P
Processing Orientation: Vertical
Maximum Width: 1950 mm
Possible Stop Positions: 6–953 mm
Number of Stop Positions: 15
Distance Between Stop Positions: 16 mm, 32 mm, 96 mm
Material: Steel/Zinc/Aluminium/Plastic
Colour/Finish: Black
Model: 2019
Safety Certificate: CE Declaration of Conformity
Maximum Wood Thickness: Depends on the machine used
Minimum Workable Wood Thickness: Depends on the machine used, table thickness, and assembly configuration
