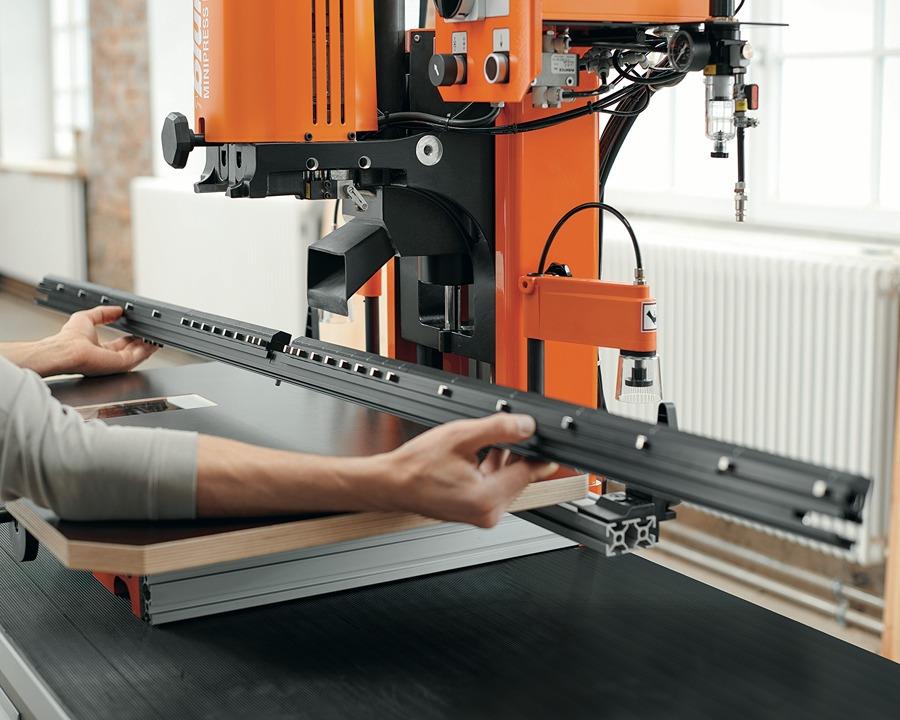

MINIPRESS Top with EASYSTICK Ruler by Wilson and Bradley
The MINIPRESS Top is a versatile solution for precise drilling and fitting installation. With EASYSTICK, it ensures efficient assembly processes with minimal effort and maximum accuracy. Ideal for vertical and horizontal drilling, the MINIPRESS Top provides customizable convenience levels to meet your production needs.
Key Features:
Vertical and Horizontal Drilling: Provides flexibility for all assembly needs, especially when working with Blum fittings
Ease of Use: No programming required to get started, making it simple for any user to operate
Digitalized Process: Allows you to plan and transfer cabinet designs directly onto the machine
Quick Tool-Free Drill Head Clamping: Swap out drill heads with ease using the new tool-free system
Adjustable Y-Axis: Provides up to 350 mm of manual adjustment for precise drilling

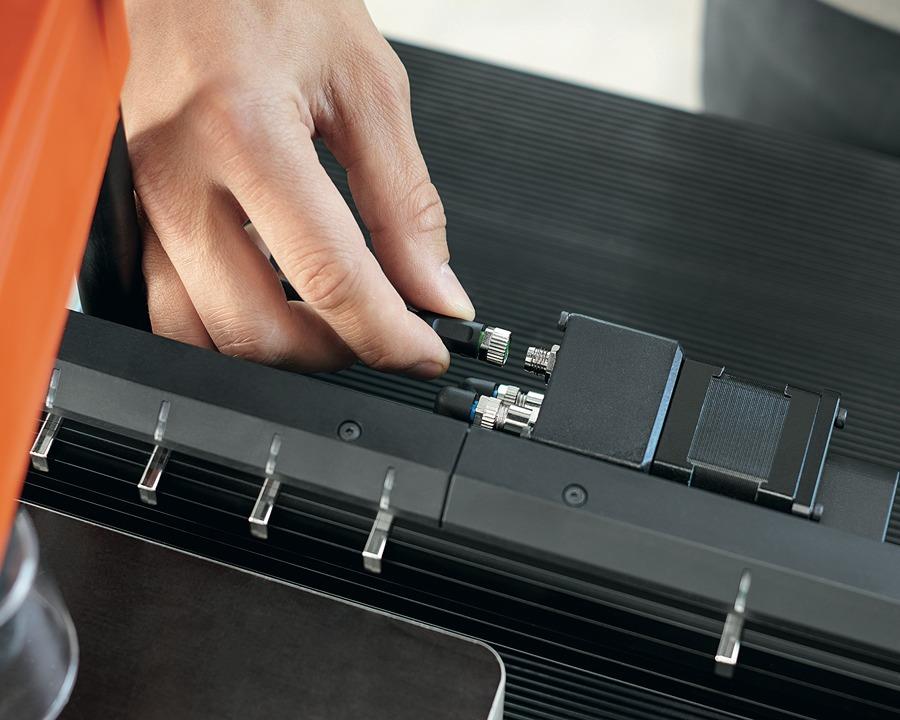

EASYSTICK Integration: Automates stop positioning, ensuring your assembly is always perfect, every time
Specifications:

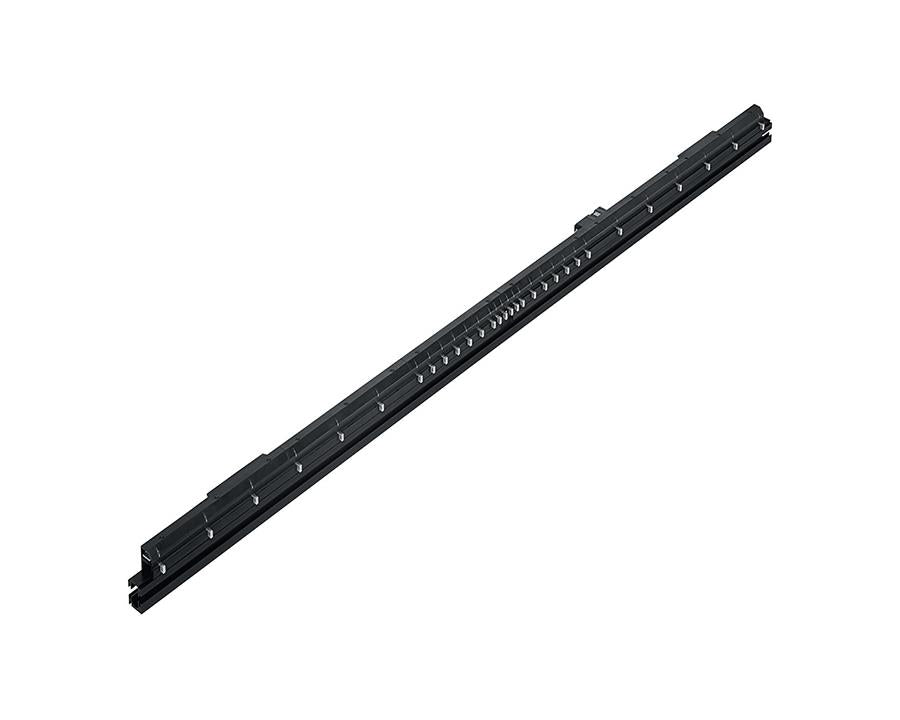

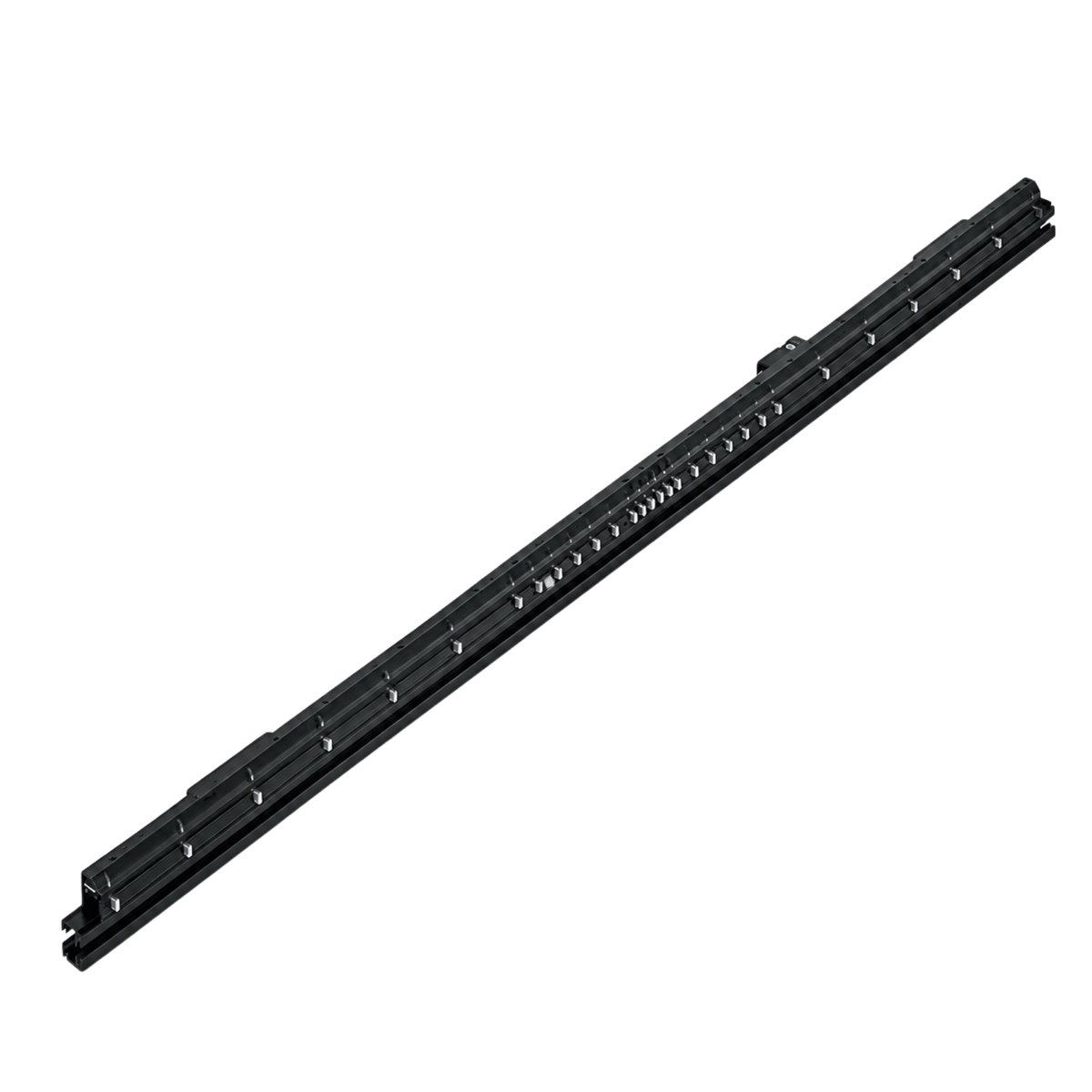

Type of Device: EASYSTICK Ruler
Compatible with: MINIPRESS top
Processing: Vertical and horizontal drilling
Maximum Width: 1950 mm
Stop Positions: 15 positions, adjustable between 6 mm and 953 mm
Stop Distance: 16 mm, 32 mm, 96 mm increments
Material: Steel, zinc, aluminum, plastic
Colour/Finish: Black
Nominal Voltage: 24 V
Nominal Current: 1 A
Motor Performance: 0.024 kW
Accessories Included: Tool set for assembly
Net Weight: 3.7 kg
Dimensions (HxWxD): 61.7 mm x 1700 mm x 85 mm (transport dimensions)
Safety Certification: CE Declaration of Conformity
Maximum Wood Thickness: Dependent on the machine used
Minimum Wood Thickness: Dependent on the machine used and table thickness
