SKU:IW-BLFDS-550MMCB

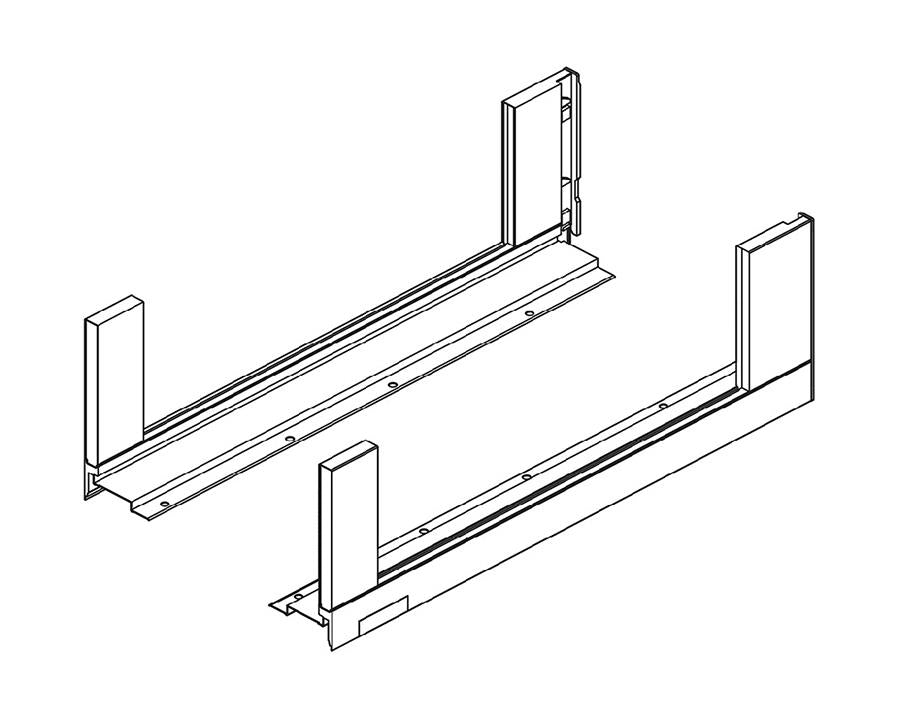

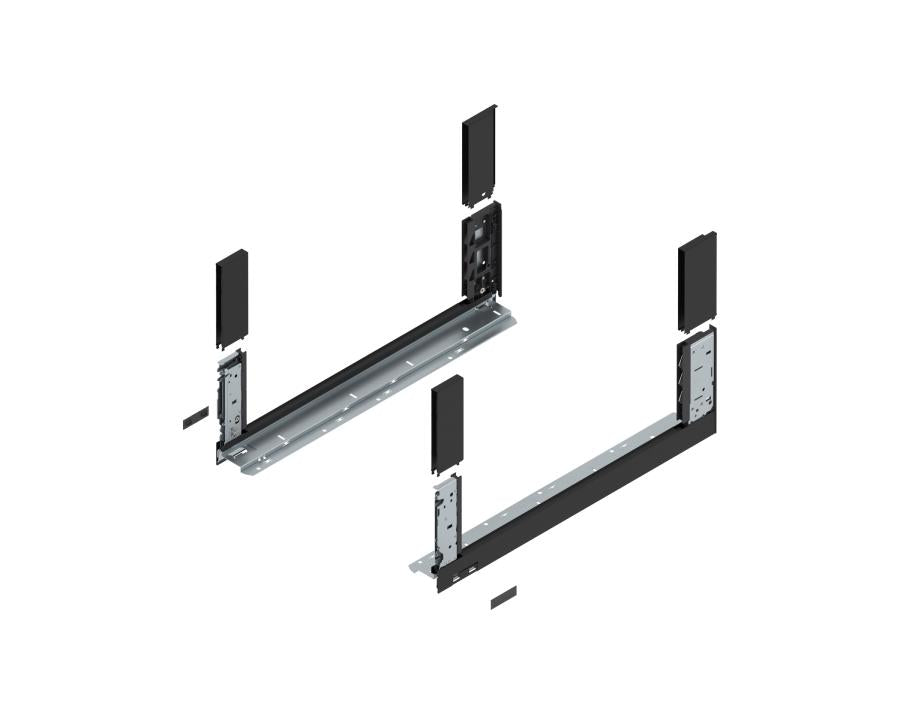

Blum LEGRABOX free drawer side, C height, 550mm, Carbon Black R&L 780C5502S
Blum LEGRABOX free drawer side, C height, 550mm, Carbon Black R&L 780C5502S
Straight lines, sleek design with clearly defined shapes and especially high quality of motion that’s LEGRABOX, the elegant new box system from Blum. Combined with outstanding running characteristics, LEGRABOX can be used for any application in the home.
Extending the design options available for LEGRABOX pull-outs and drawer system is Blum LEGRABOX free. Exclusively available for C-height pull outs, LEGRABOX free supports clever and unique designs in both kitchen and living areas. Which allows for large surface area design elements to be integrated harmoniously and effectively into furniture.
Backed by a lifetime warranty on all Blum products, LEGRABOX free is the innovative solution to your storage applications needs.
Features
● Modern, slim design
● Coated in a Carbon black matt
● Made from quality steel
● Coordinates perfectly with all C-height components
● Backed by a lifetime warranty on all Blum products
Specifications
● Type of box: LEGRABOX free drawer side
● Material: Steel
● Drawer side height: C (177mm)
● Design option: Free
● Design: Plain
● Nominal length: 550mm
● Box variant: LEGRABOX free drawer side
● Connection drawer side to frontal: Front fixing bracket
● Connection drawer side to frontal
● Connection drawer side to back: Clip om (steel back or wooden back fixing bracket)
● Length: of drawer side hat (internal drawer length): 539.4mm
● Install.dim.drawer side (inn.carc.depth till outer base edge: 17mm
● Fixing base to drawer side: Prong connection or screw-in
● Bottom thickness: 16mm
● Finish of fixing bracket: Carbon black matt
● Stay-open stop: No
● Minimum internal cabinet depth: 553mm
● Additions: ZA7.070 external cover caps, enclosed
● Additions: ZA7.570 inner cover caps, enclosed
● Item package: Right + Left
● Packaging: Commercial packing
● Drawer type: Full extension
● Dynamic load bearing drawer side/drawer profile: 40kg
