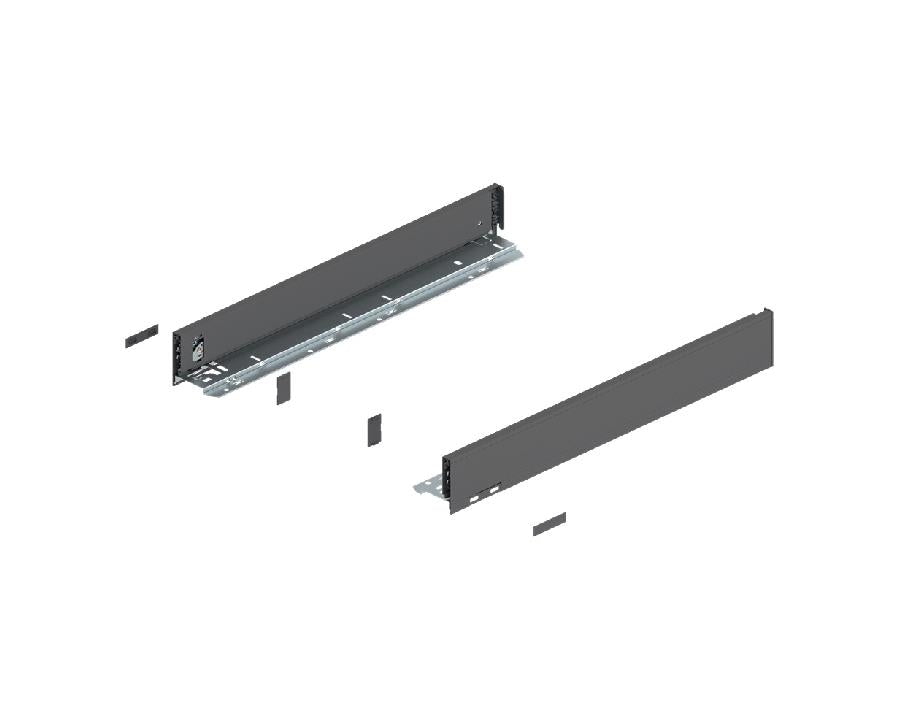

Blum LEGRABOX Pure M Height Orion Grey Size: 500mm 770M5002S by W&B

LEGRABOX – by Wilson and Bradley

LEGRABOX features a remarkable combination of elegant design, cutting-edge technology, and user-friendly operation. Its standout quality is the extensive design freedom offered by its adaptable box system.

Features:
● Slim, modern side panel design
● Finished with a distinctive Orion grey coating
● Supports a dynamic load capacity of 40 kg
● Fully compatible with all LEGRABOX components
● Comes with Blum’s lifetime warranty

Specifications:

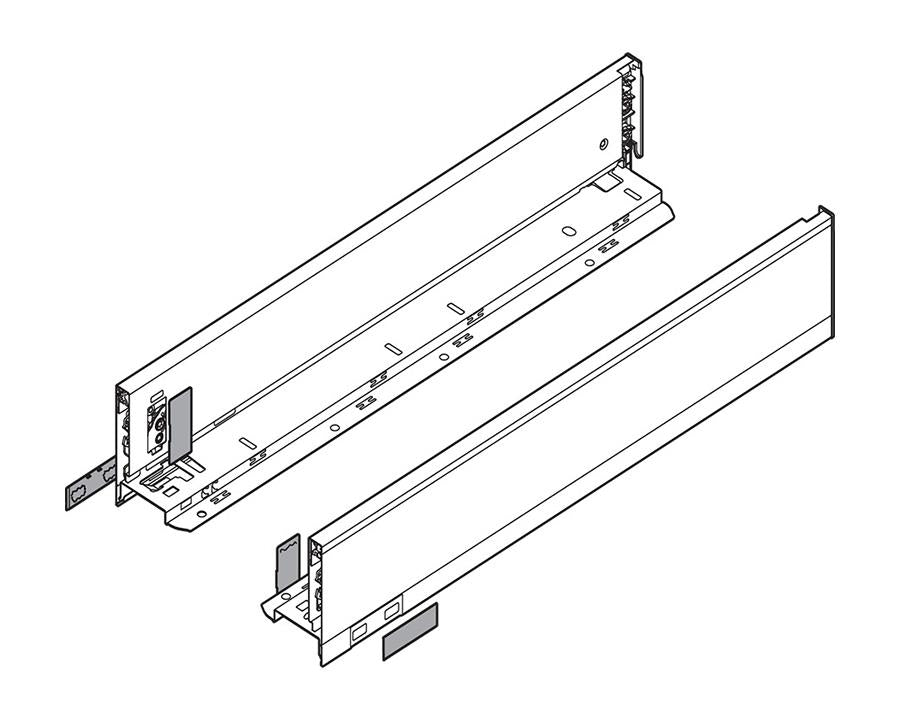

● Box type: LEGRABOX drawer side
● Material: Steel
● Drawer side height: M (90.5 mm)
● Design option: Pure
● Style: Plain
● Nominal length: 400 mm
● Front connection: Front fixing bracket
● Rear connection: Clip-on for steel or wooden back fixing bracket
● Internal drawer length: 389.8 mm
● Installation depth (carcass to outer base edge): 17 mm
● Height adjustment: Yes
● Base-to-drawer side fixing: Prong connection or screw-in
● Bottom thickness: 16 mm
● Back fixing bracket finish: Orion grey matt
● Stay-open stop: Not included
● Minimum internal cabinet depth: 403 mm
● Additional parts: ZA7.070 external cover caps, ZA7.570 inner cover caps
● Packaging: Right and left set, commercial packing
● Drawer type: Full extension
● Dynamic load rating: 40 kg
