Blum’s latest box system MERIVOBOX provides a unique combination of a slim drawer side design, high stability, and easy assembly. It allows you to create a broad range of drawers with just a few components, and all with the same easy assembly process.
MERIVOBOX brings together four innovations. A platform for simplified manufacturing, a minimalist design for a unique look, a new cabinet profile for enhanced functionality, and a well-thought-out assembly concept for easy implementation.
The L-shape of the cabinet profile, coupled with maximum functionality, makes the uniform box platform so innovative. Assembly is always the same, adjustment is simple, and MERIVOBOX boasts an award-winning design.
Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand. Experience maximum functionality combined with stunning design. MERIVOBOX makes your ideas and those of your customers happen.
Features: ● Steel drawer sides in Silk White Matt, Indium Grey Matt, and Orion Grey Matt ● Distinctive drawer side design ● Straight on the inside with flush cover cap ● Synchronised feather-light glide ● Insert the front in the holding position and simply clip on (easy attachment even if pull-out is already in place) ● 3-dimensional front adjustment ● BLUMOTION cabinet profile for all applications with interface for TIP-ON BLUMOTION and side stabilise ● Can be combined with SERVO-DRIVE

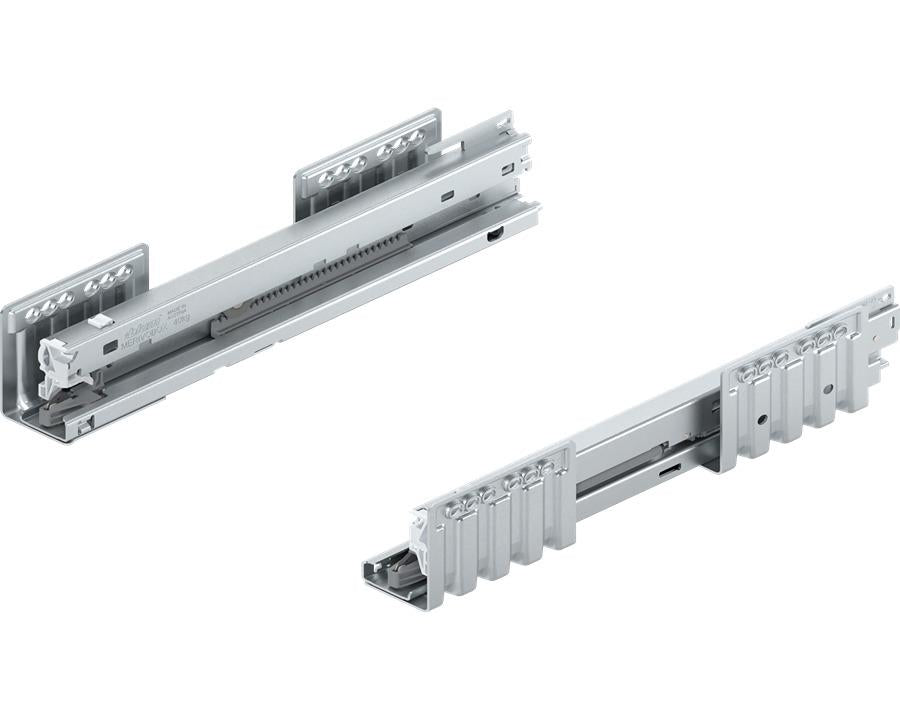

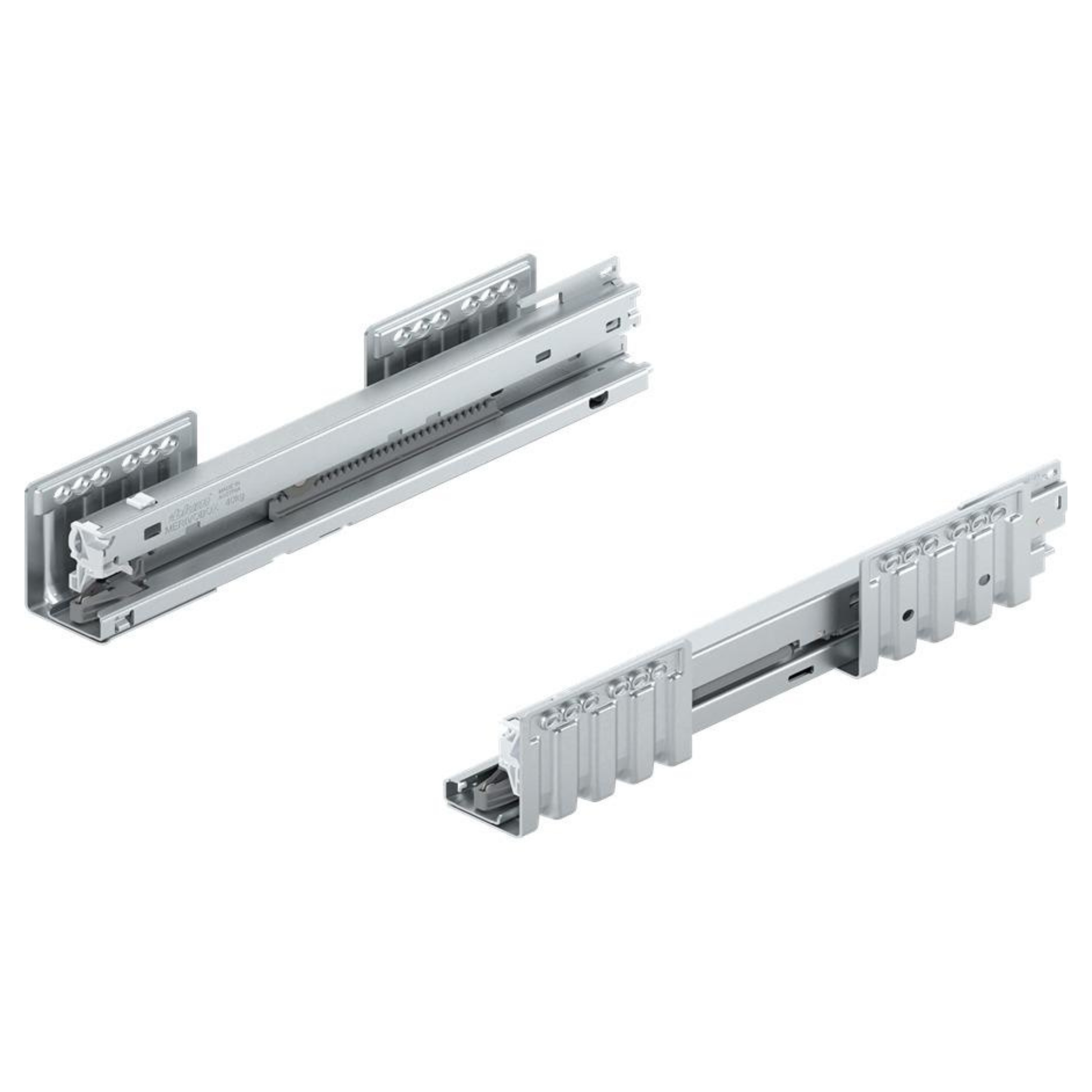

Specifications: ● Type of runner system: MERIVOBOX cabinet profile ● Dynamic load bearing: 40kg ● Nominal length: 270mm ● Motion technology: With BLUMOTION/for TIP-ON BLUMOTION ● Colour/finish: Zinc plated ● Material: Steel ● Pull-out type: Full extension ● Length of cabinet profile: 257.25mm ● Number of brackets: 2 ● Assembly type: Side mounted ● Cabinet profile fixing: With screws ● Cabinet profile width: 26.5mm ● Connection runner system with box or drawer: For locking device ● Hook position (From end of runner): 0.5mm ● Minimum internal cabinet depth: 273mm ● Item package: Right + Left ● Packaging: Commercial packing
