Blum’s latest box system MERIVOBOX provides a unique combination of a slim drawer side design, high stability, and easy assembly. It allows you to create a broad range of drawers with just a few components, and all with the same easy assembly process.
MERIVOBOX brings together four innovations. A platform for simplified manufacturing, a minimalist design for a unique look, a new cabinet profile for enhanced functionality, and a well-thought-out assembly concept for easy implementation.
The L-shape of the cabinet profile, coupled with maximum functionality, makes the uniform box platform so innovative. Assembly is always the same, adjustment is simple, and MERIVOBOX boasts an award-winning design.
Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand. Experience maximum functionality combined with stunning design. MERIVOBOX makes your ideas and those of your customers happen.
Features:
● Steel drawer sides in Silk White, Indium Grey, and Orion Grey
● Distinctive drawer side design
● Straight on the inside with flush cover cap
● Synchronised feather-light glide
● Insert the front in the holding position and simply clip on (easy attachment even if pull-out is already in place)
● 3-dimensional front adjustment
● BLUMOTION cabinet profile for all applications with interface for TIP-ON BLUMOTION and side stabilise
● Can be combined with SERVO-DRIVE

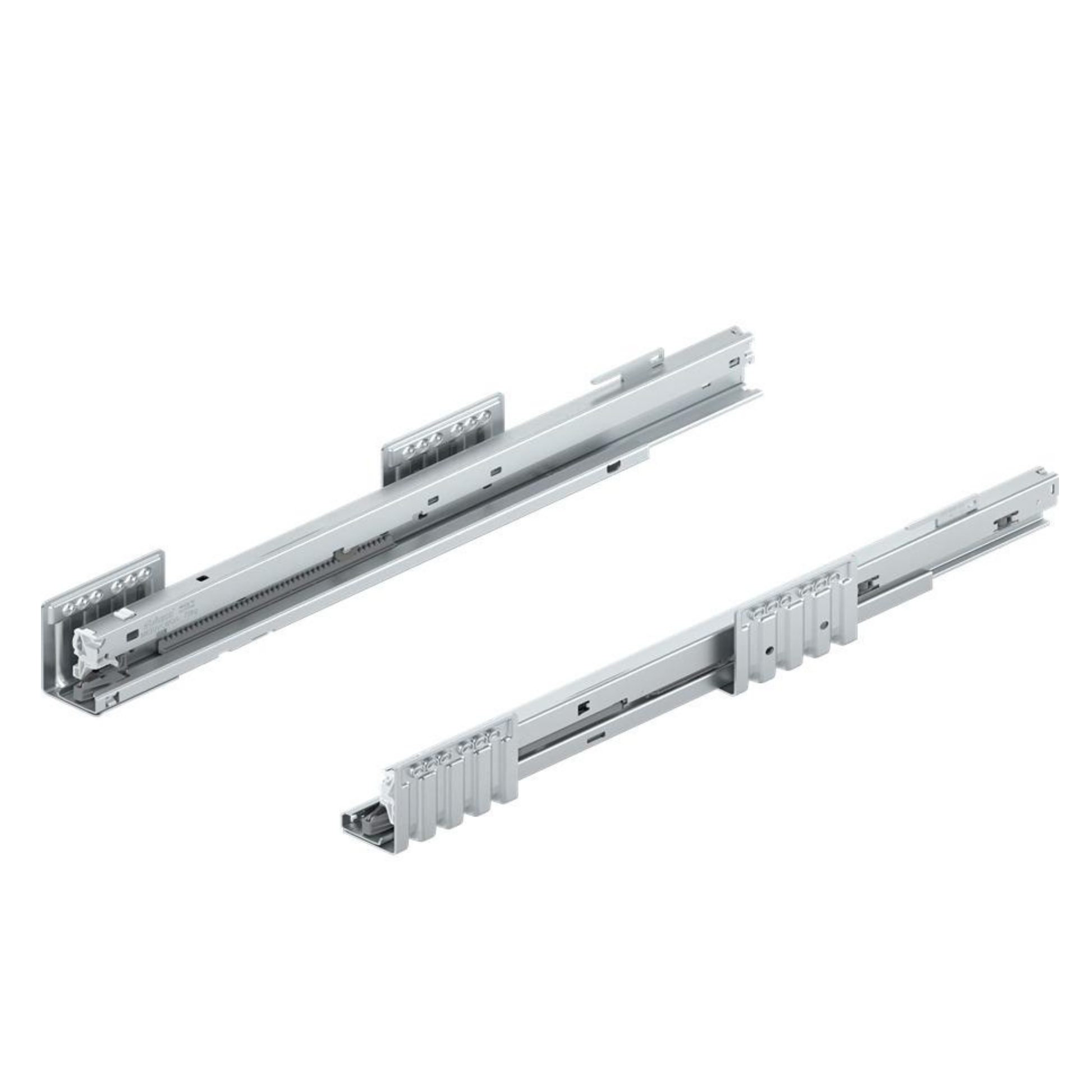

Specifications:
● Type of runner system: MERIVOBOX cabinet profile
● Dynamic load bearing: 70kg
● Nominal length: 550mm
● Motion technology: With BLUMOTION/for TIP-ON BLUMOTION
● Colour/finish: Zinc plated
● Material: Steel
● Pull-out type: Full extension
● Length of cabinet profile: 439.25mm
● Number of brackets: 2
● Assembly type: Side mounted
● Cabinet profile fixing: With screws
● Cabinet profile width: 26.5mm
● Connection runner system with box or drawer: For locking device
● Hook position (From end of runner): 0.5mm
● Minimum internal cabinet depth: 553mm
● Item package: Right + Left
● Packaging: Commercial packing
