Blum’s latest box system MERIVOBOX provides a unique combination of a slim drawer side design, high stability, and easy assembly. It allows you to create a broad range of drawers with just a few components, and all with the same easy assembly process.
MERIVOBOX brings together four innovations. A platform for simplified manufacturing, a minimalist design for a unique look, a new cabinet profile for enhanced functionality, and a well-thought-out assembly concept for easy implementation.
The L-shape of the cabinet profile, coupled with maximum functionality, makes the uniform box platform so innovative. Assembly is always the same, adjustment is simple, and MERIVOBOX boasts an award-winning design.
Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand. Experience maximum functionality combined with stunning design. MERIVOBOX makes your ideas and those of your customers happen.
Features:
● Distinctive drawer side design
● Drawer side straight on the inside with flush cover cap
● Synchronised feather-light glide
● Includes an integrated BLUMOTION damping effect for soft and effortless closing,
● Can be combined with SERVO-DRIVE or TIP-ON BLUMOTION
● Insert the front in the holding position and simply clip on (easy attachment even if pull-out is already in place)
● Tool-free front assembly
● 3-dimensional front adjustment
Specifications:

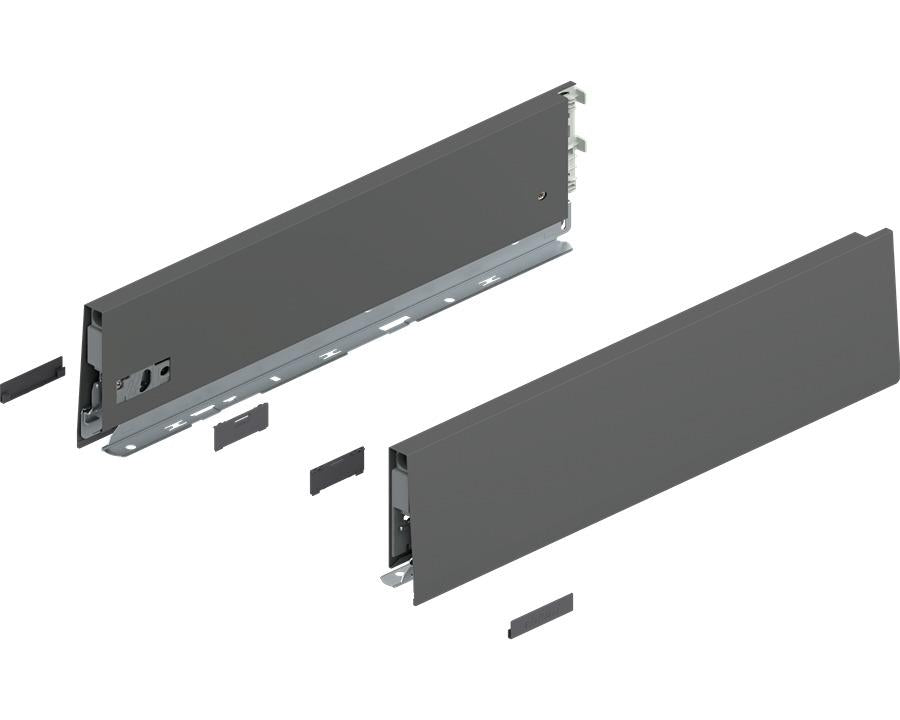

● Type of box: MERIVOBOX drawer side
● Drawer side height: K (129mm)
● Material: Steel
● Design: Plain
● Nominal length: 550mm
● Connection drawer side to frontal: Front fixing bracket
● Connection drawer side to back: Clip on (steel back or wooden back fixing bracket)
● Length of drawer side hat (internal drawer length): 540mm
● Height adjustment: Yes
● Fixing of base to drawer side: Prong connection or screw-on
●Bottom thickness: 16mm
● Finish of drawer side: Orion grey matt
● Finish of back fixing bracket: Natural
● Additions: ABD.100 external cover caps, enclosed
● Additions: ZA4.540 internal cover caps, enclosed
● Item package: Right + Left
● Packaging: Commercial packing
