Blum’s latest box system MERIVOBOX provides a unique combination of a slim drawer side design, high stability, and easy assembly. It allows you to create a broad range of drawers with just a few components, and all with the same easy assembly process.
MERIVOBOX brings together four innovations. A platform for simplified manufacturing, a minimalist design for a unique look, a new cabinet profile for enhanced functionality, and a well-thought-out assembly concept for easy implementation.
The L-shape of the cabinet profile, coupled with maximum functionality, makes the uniform box platform so innovative. Assembly is always the same, adjustment is simple, and MERIVOBOX boasts an award-winning design.
Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand. Experience maximum functionality combined with stunning design. MERIVOBOX makes your ideas and those of your customers happen.
Features: ● Distinctive drawer side design ● Drawer side straight on the inside with flush cover cap ● Synchronised feather-light glide ● Includes an integrated BLUMOTION damping effect for soft and effortless closing, ● Can be combined with SERVO-DRIVE or TIP-ON BLUMOTION ● Insert the front in the holding position and simply clip on (easy attachment even if pull-out is already in place) ● Tool-free front assembly ● 3-dimensional front adjustment

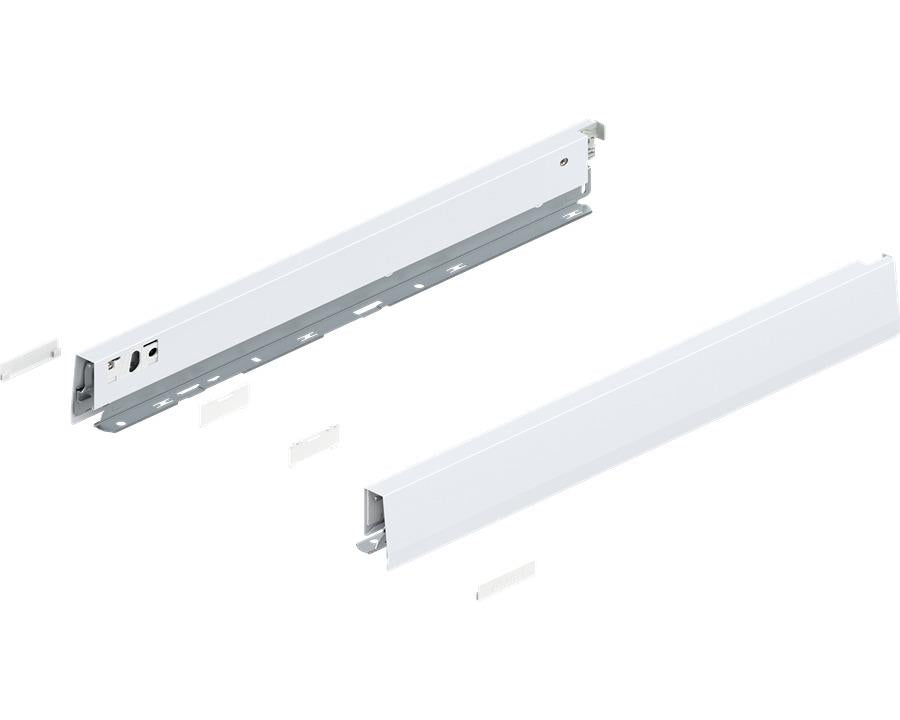

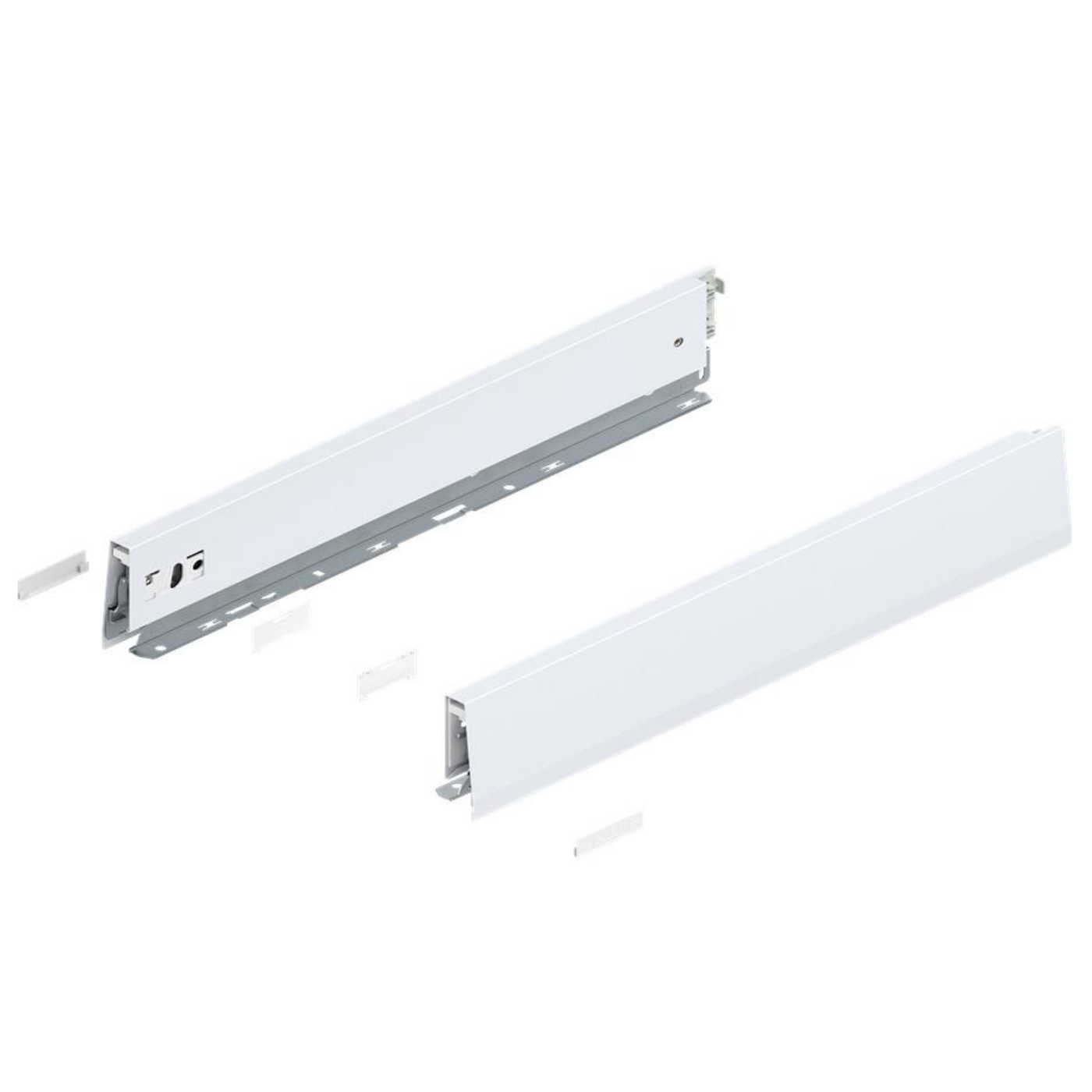

Specifications: ● Type of box: MERIVOBOX drawer side ● Drawer side height: N (68.5mm) ● Material: Steel ● Design: Plain ● Nominal length: 500mm ● Connection drawer side to frontal: Front fixing bracket ● Connection drawer side to back: Clip on (steel back or wooden back fixing bracket) ● Length of drawer side hat (internal drawer length): 490mm ● Height adjustment: Yes ● Fixing of base to drawer side: Prong connection or screw-on ●Bottom thickness: 16mm ● Finish of drawer side: Silk white matt ● Finish of back fixing bracket: Natural ● Additions: ABD.100 external cover caps, enclosed ● Additions: ZA4.540 internal cover caps, enclosed ● Item package: Right + Left ● Packaging: Commercial packing
