Blum’s latest box system MERIVOBOX provides a unique combination of a slim drawer side design, high stability, and easy assembly. It allows you to create a broad range of drawers with just a few components, and all with the same easy assembly process.
MERIVOBOX brings together four innovations. A platform for simplified manufacturing, a minimalist design for a unique look, a new cabinet profile for enhanced functionality, and a well-thought-out assembly concept for easy implementation.
The L-shape of the cabinet profile, coupled with maximum functionality, makes the uniform box platform so innovative. Assembly is always the same, adjustment is simple, and MERIVOBOX boasts an award-winning design.
Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand. Experience maximum functionality combined with stunning design. MERIVOBOX makes your ideas and those of your customers happen.
Features:
● For the connection of chipboard back fixings with chipboard back and drawer side with drawer bases
● Recommended that you use flat head screws for the chipboard back and drawer sides
● Made from steel
● Blum specific screw

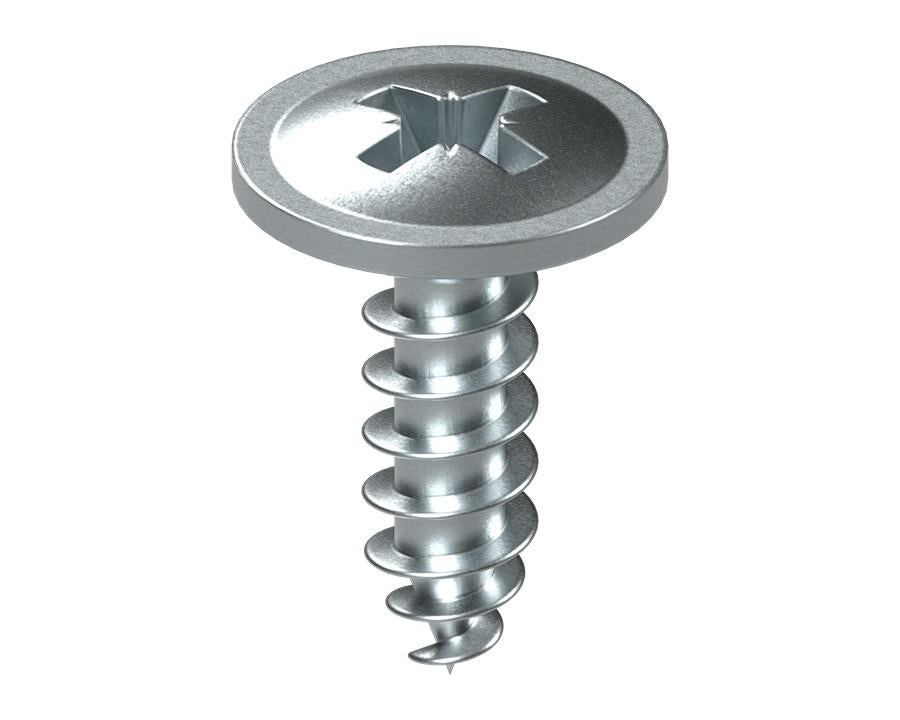

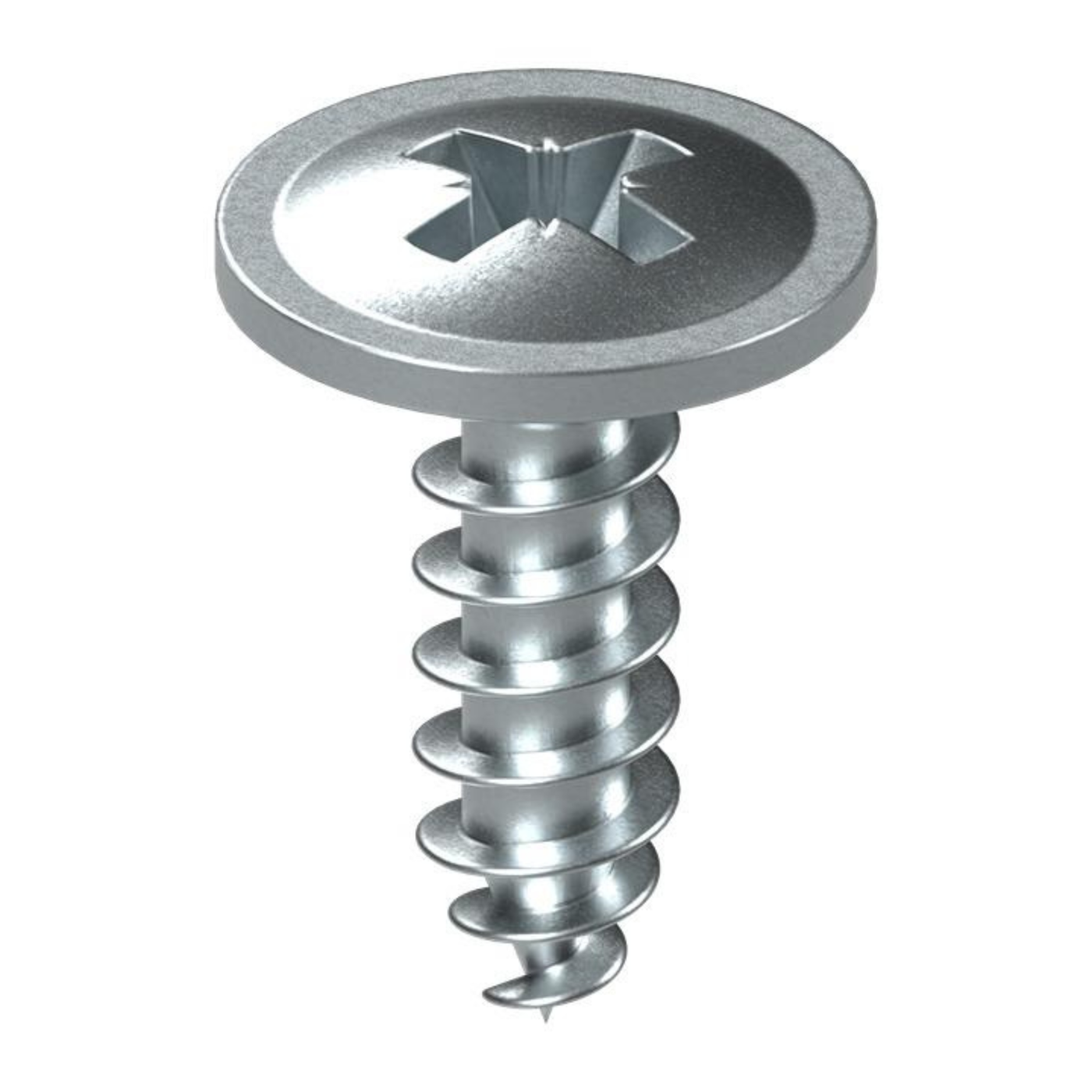

Specifications:
● Height of head: 1.5mm
● Type of screw: Side adjustment screw
● Head diameter: 7.9mm
● Standard information: Blum-specific screw with part number 61R
● Material: Steel
● Colour/finish: Zinc plated
● Temperature treatment: Case-hardened
● Head shape: Washer head screw
● Nominal length: 15mm
● Overall length (including head): 16.4mm
● Length of thread: 13.4mm
● Thread shape: Chipboard screw thread, included angle 35 degrees.
● Thread size: 3.5mm
● Slot shape/tool support: Combi cross slot Z size 2
● Shape of thread end: With tip (for wood screws and chipboard screws)
● Item package: 1 piece
● Packaging: Commercial packing
