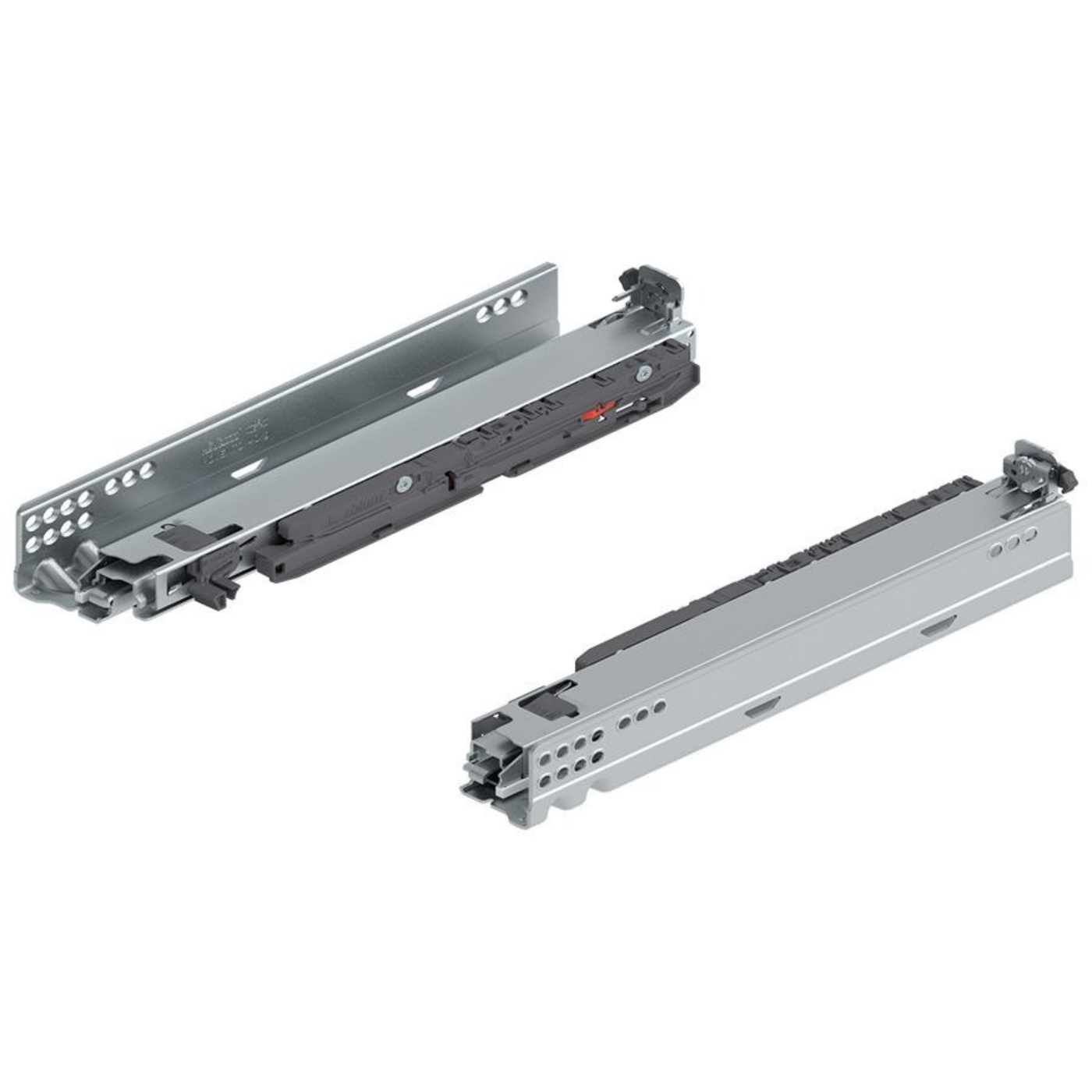

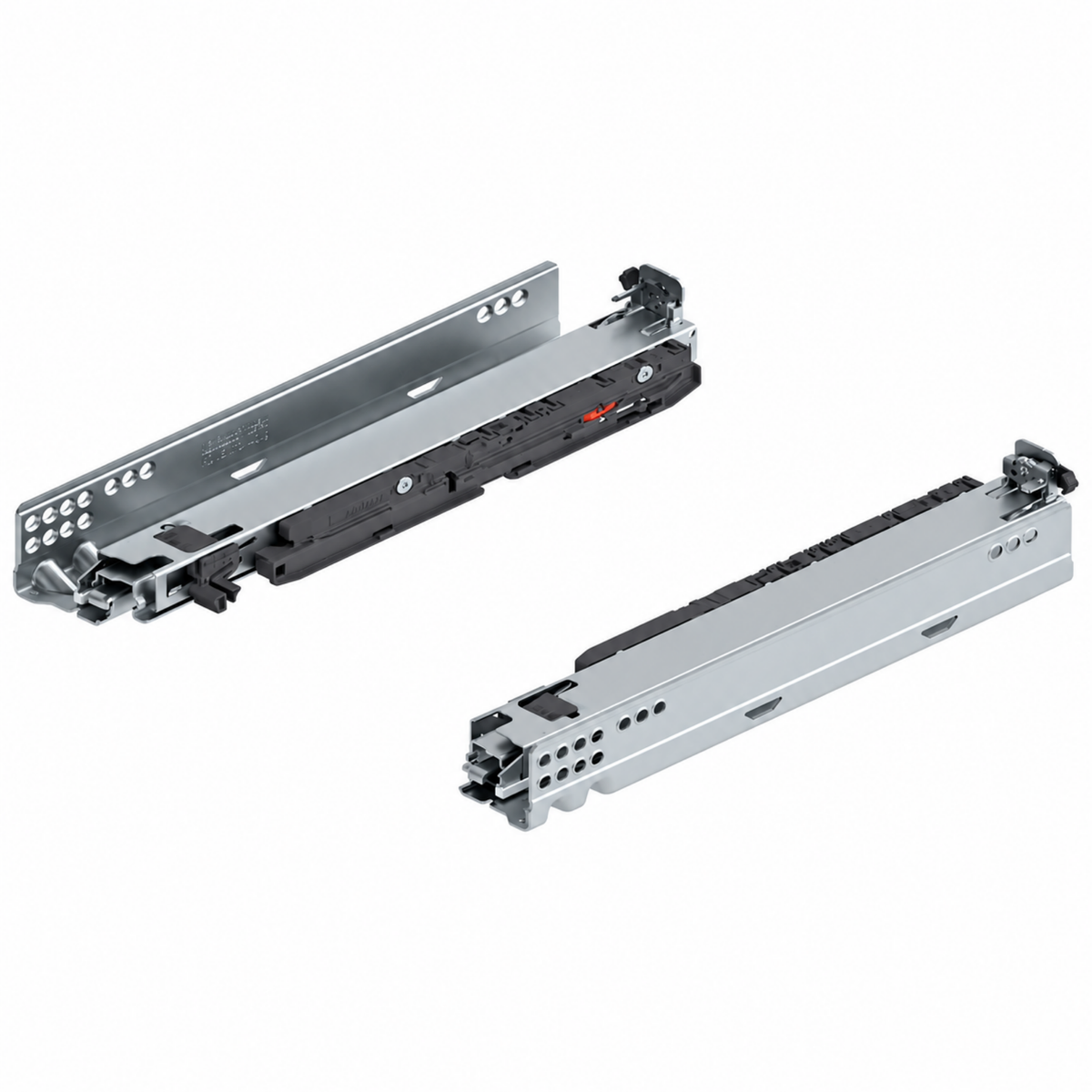

MOVENTO Concealed Runner System by Wilson and Bradley
The MOVENTO runner system offers a sophisticated solution for modern cabinetry, combining high performance with versatility. Whether you're working on a kitchen, wardrobe, or custom storage, this concealed system complements all wooden drawer designs. MOVENTO integrates seamlessly with Blum motion technologies, offering exceptional feather-light glide, precise 4-dimensional adjustment, and smooth, silent operation.
With a dynamic carrying capacity of 40kg, this system provides high stability and excellent sag values. The full extension feature enhances load-bearing capacity, while the 4-dimensional adjustment ensures accurate gap layout and a precise fit every time.
Features:
Compatible with 3 Blum motion technologies: BLUMOTION, SERVO-DRIVE, and TIP-ON BLUMOTION
Dynamic weight capacity of 40-60kg for reliable drawer movement
Synchronised feather-light glide for smooth, effortless opening and closing
4-dimensional adjustment for easy and precise alignment
Pull-out shelf locking system ensures drawer stability and prevents unwanted movement
Specifications:
Type of Runner System: MOVENTO
Furniture Components: Wooden drawer
Motion Technology: With BLUMOTION / for TIP-ON BLUMOTION
Dynamic Load Bearing: 40kg
Nominal Length: 270mm
Additional Features: BLUMOTION, For TIP-ON BLUMOTION
Material: Steel
Colour/Finish: Zinc plated
Pull-out Type: Full extension
Runner System: Synchronised roller carriage system
Drawer Profile Width: 29.7mm
Bearing Height: 28.5mm
Shank Height of Cabinet Profile: 47.5mm
Cabinet Profile Width: 40.9mm
Distance of Latch: 213.8mm
Distance of Centre Profile: 255mm
Distance of BLUMOTION and BLUMATIC: 199mm
Mounting Width (Including Spacing): 21mm
Cabinet Profile Fixing: With screws
Assembly Type: Side mounted
Connection Runner System with Box or Drawer: For locking device
