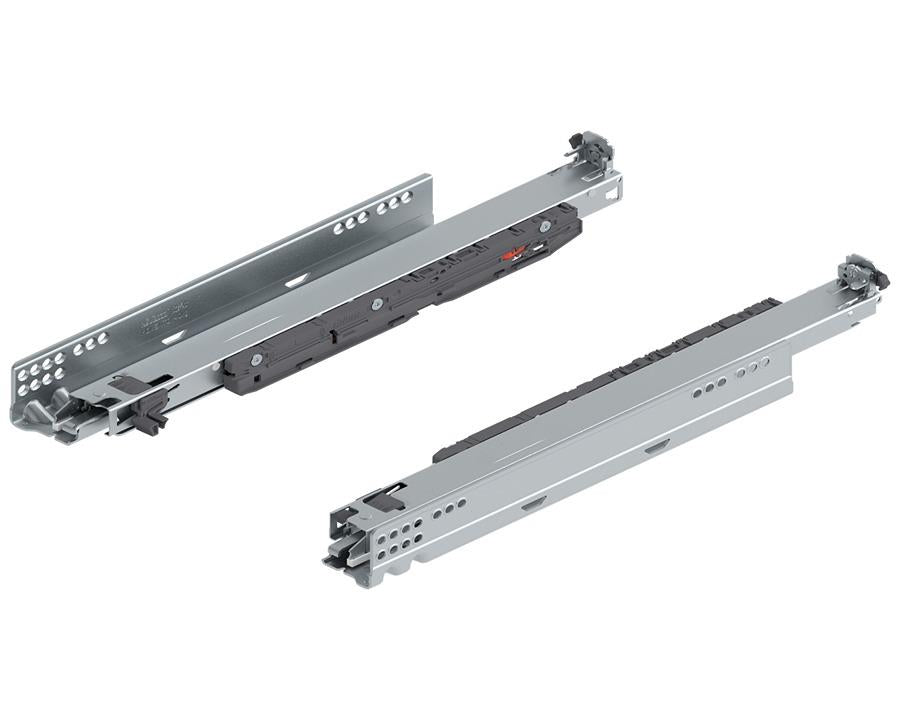

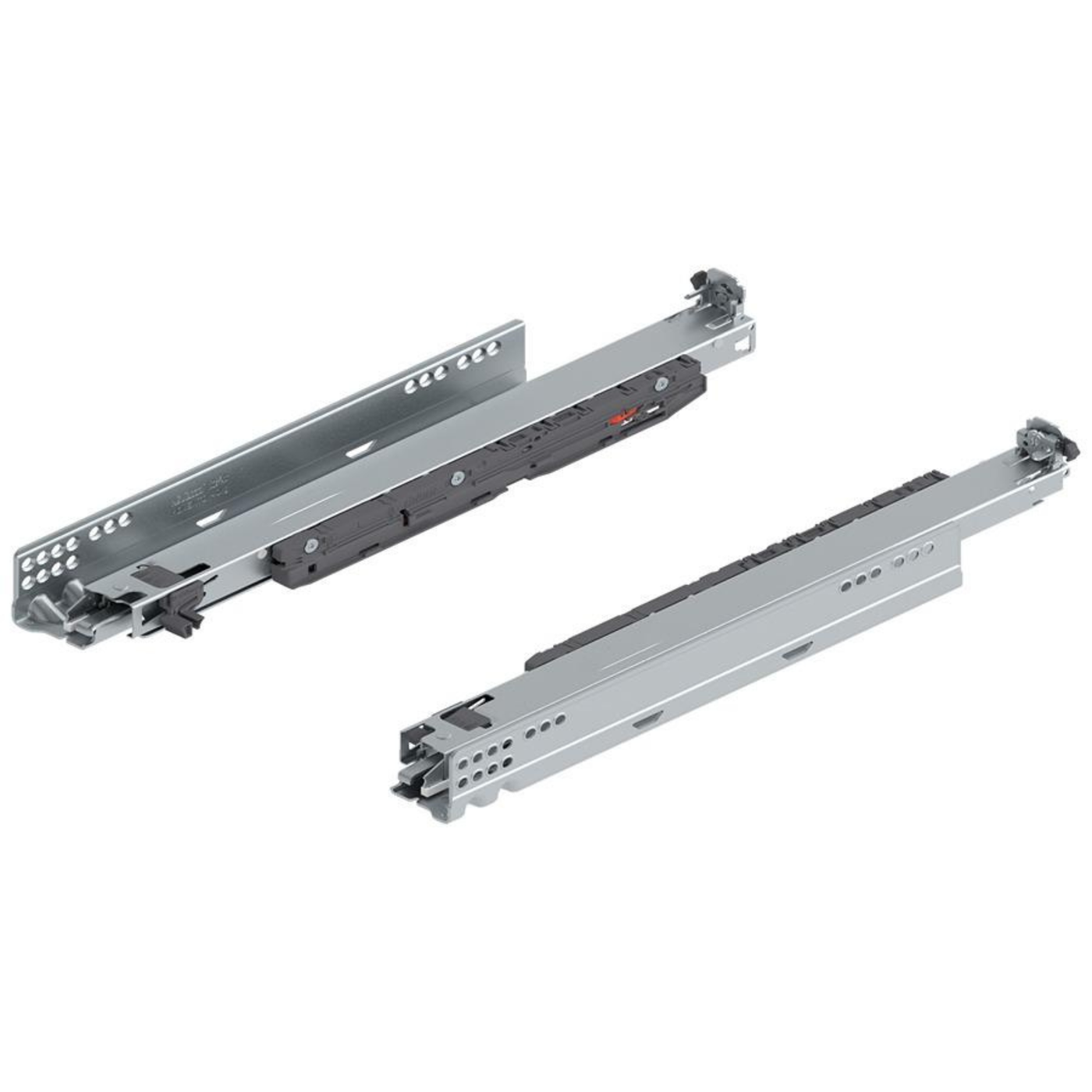

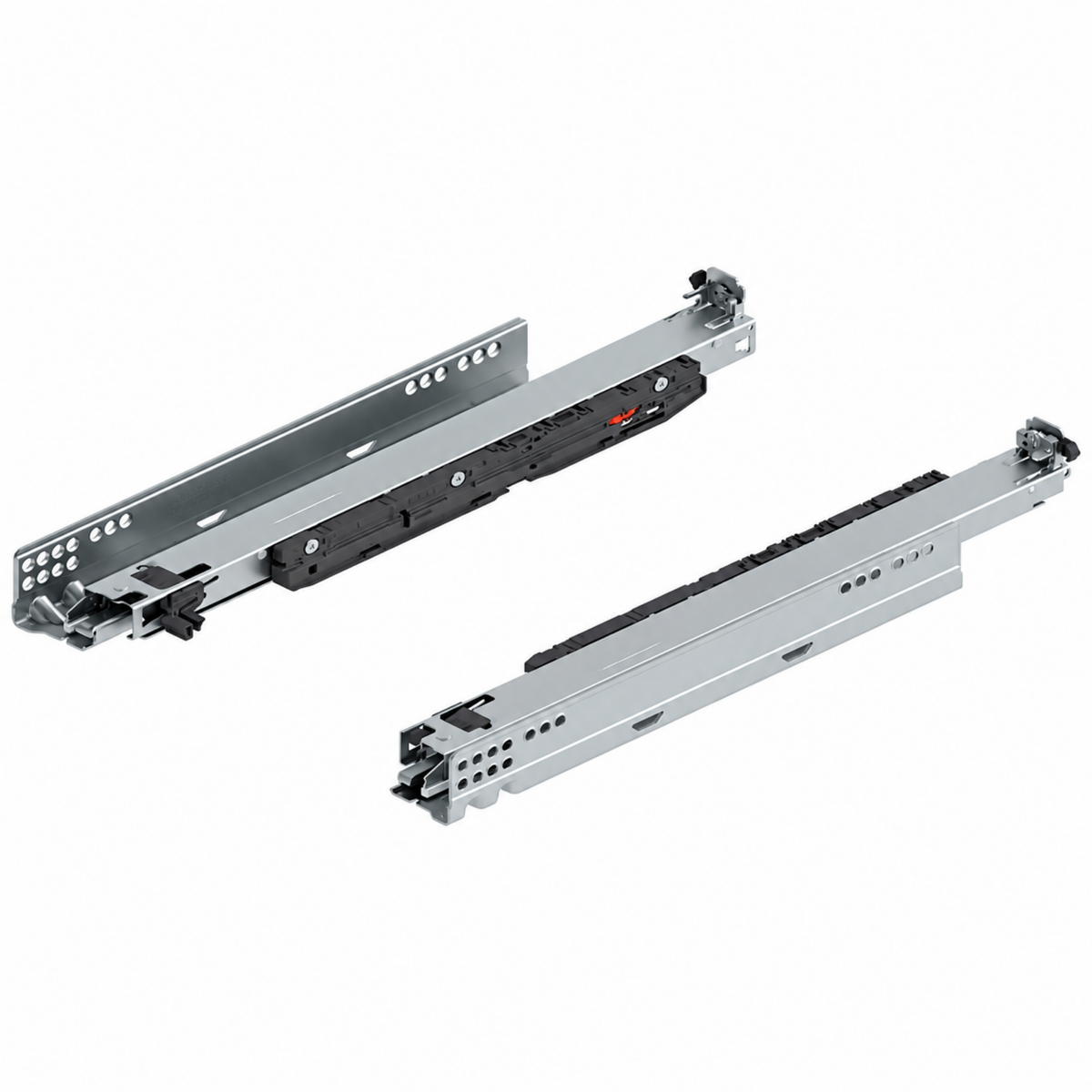

MOVENTO Concealed Runner System by Wilson and Bradley
The MOVENTO concealed runner system is engineered to meet the needs of modern cabinetry, offering both sleek design and robust performance. Ideal for wooden drawers in kitchens, wardrobes, and custom storage solutions, MOVENTO delivers effortless operation, smooth movement, and high stability, all while ensuring an aesthetic, hidden setup.
This sophisticated system boasts a synchronised feather-light glide, 4-dimensional adjustment for precision alignment, and compatibility with Blum's motion technologies for easy, soft closing and opening. With a dynamic load capacity of 40-60kg, MOVENTO excels in stability and sag resistance, offering optimal functionality for heavy-duty drawers.
Features:
Compatible with 3 Blum motion technologies: BLUMOTION, SERVO-DRIVE, and TIP-ON BLUMOTION
Dynamic load bearing: 40-60kg for high stability and reliability
Synchronised feather-light glide for smooth, easy opening and closing
4-dimensional adjustment for precise gap alignment and easy installation
Pull-out shelf locking system ensures drawer stability and prevents unwanted movement
Specifications:
Type of Runner System: MOVENTO
Furniture Components: Wooden drawer
Motion Technology: With BLUMOTION / for TIP-ON BLUMOTION
Dynamic Load Bearing: 40kg
Nominal Length: 400mm
Additional Features: BLUMOTION, For TIP-ON BLUMOTION
Material: Steel
Colour/Finish: Zinc plated
Pull-out Type: Full extension
Runner System: Synchronised roller carriage system
Drawer Profile Width: 29.7mm
Bearing Height: 28.5mm
Shank Height of Cabinet Profile: 47.5mm
Cabinet Profile Width: 40.9mm
Distance of Latch: 278.7mm
Distance of Centre Profile: 370mm
Distance of BLUMOTION and BLUMATIC: 298.5mm
Mounting Width (Including Spacing): 21mm
Cabinet Profile Fixing: With screws
Assembly Type: Side mounted
Connection Runner System with Box or Drawer: For locking device
