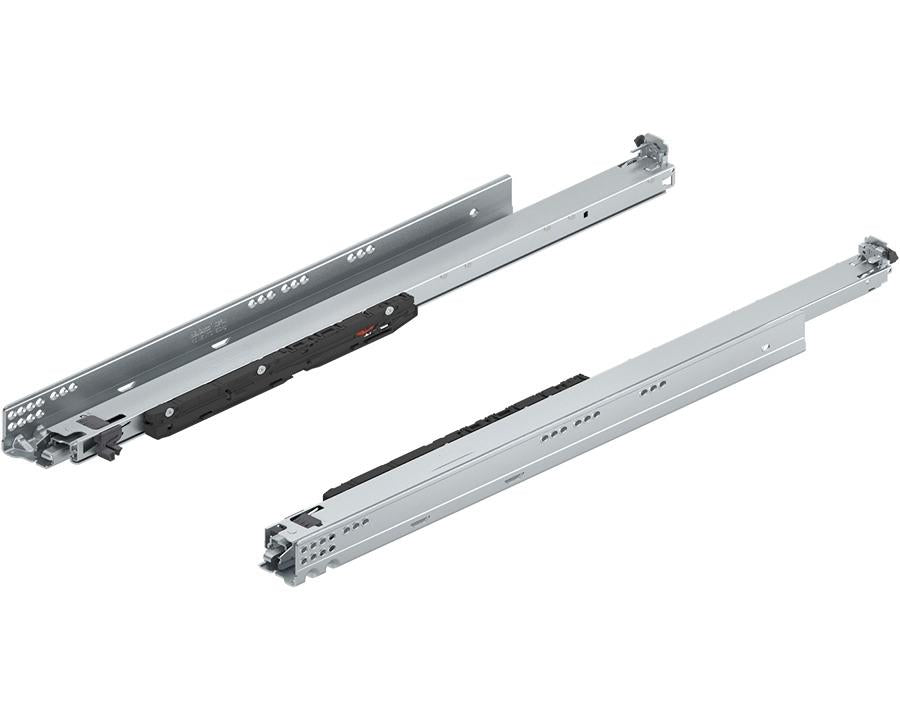

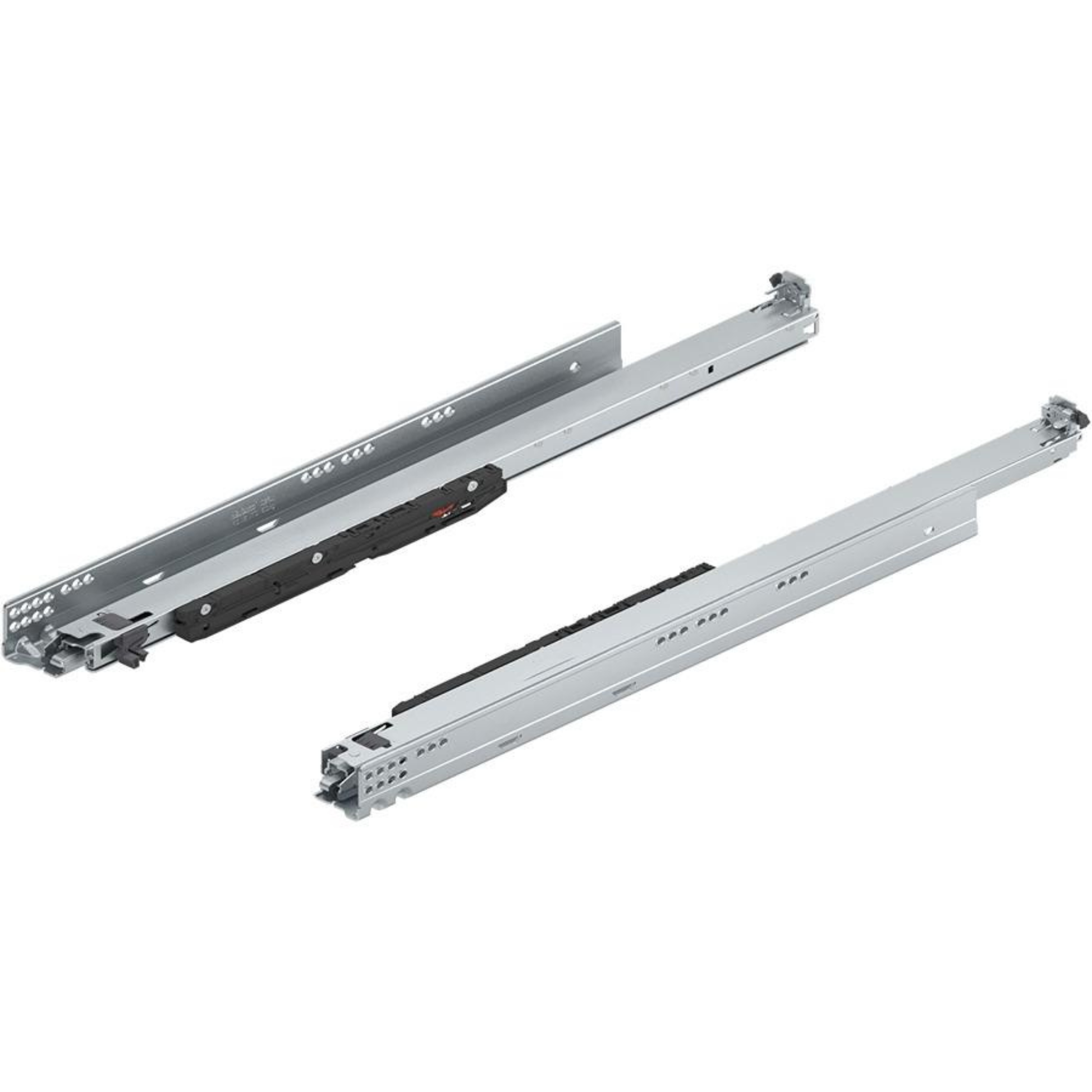

MOVENTO Concealed Runner System by Wilson and Bradley
The MOVENTO runner system offers a sophisticated solution for modern cabinetry, combining cutting-edge technology with the versatility to complement any wooden drawer design. Whether you're designing a new kitchen, upgrading your storage, or creating custom furniture, MOVENTO is a perfect choice. This concealed system integrates seamlessly with Blum motion technologies to provide feather-light glide, precise alignment, and smooth, silent operation.
Designed for dynamic weight capacities of 40-60kg, the MOVENTO system is built to deliver high stability and superior load-bearing capacity. It features 4-dimensional adjustment for precise gap layout and can handle the full extension of drawers with ease.
Features:
Compatible with Blum motion technologies: BLUMOTION, SERVO-DRIVE, and TIP-ON BLUMOTION
Dynamic load capacity: 40-60kg, ideal for both light and heavy-duty applications
Feather-light glide ensures smooth, effortless opening and closing of drawers
4-dimensional adjustment provides precise gap alignment and accurate positioning
Pull-out shelf locking system enhances drawer stability and safety
Specifications:
Type of Runner System: MOVENTO
Furniture Components: Wooden drawers
Motion Technology: With BLUMOTION / for TIP-ON BLUMOTION
Dynamic Load Bearing: 70kg
Nominal Length: 600mm
Additional Features: BLUMOTION, For TIP-ON BLUMOTION
Material: Steel
Colour/Finish: Zinc plated
Pull-out Type: Full extension
Runner System: Synchronised roller carriage system
Drawer Profile Width: 29.7mm
Bearing Height: 28.5mm
Shank Height of Cabinet Profile: 47.5mm
Cabinet Profile Width: 40.9mm
Distance of Latch: 259.2mm
Cabinet Profile Fixing: With screws
Assembly Type: Side mounted
Connection Runner System with Box or Drawer: For locking device
