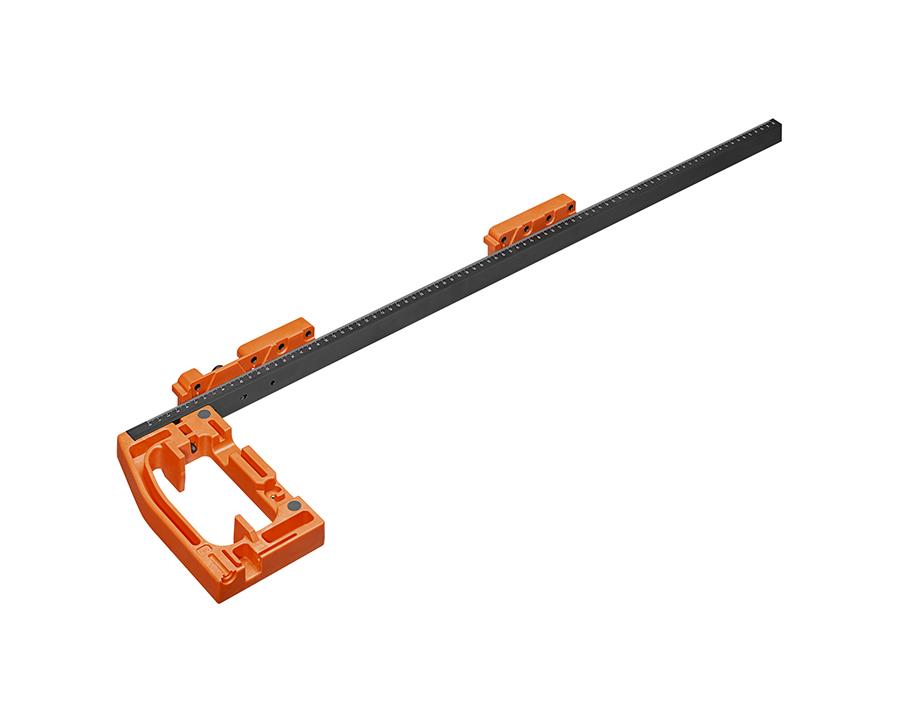

Drilling Template – by Wilson and Bradley Application: Designed for REVEGO Uno & Duo systems
This drilling template provides precise guidance for accurate positioning of REVEGO pocket connectors, ensuring correct installation and reliable long-term performance.
Key Features:
Specifically developed for REVEGO Uno and Duo sliding pocket door systems
Optimised for use with horizontal drilling and track cut-outs
Enables efficient, repeatable installation with high accuracy
Intended for use with CNC machinery or Blum MINIPRESS top with EASYSTICK
Important Information:
Blum Countersunk Screw 6 x 14.5mm (6611450HG) is required and sold separately
The CBR04DS Door Straightener is strongly recommended for every REVEGO Uno & Duo setup (sold separately)
Internal cabinet dimensions (W x H x D) define the maximum space available for construction
Start design planning with the widest front panel when combining fronts
Tested durability: 40,000 opening and closing cycles
Manual operating force: Under 70 N (based on durability tests)
Full drilling specs, part lists, and sizing data available via the Blum Product Configurator
