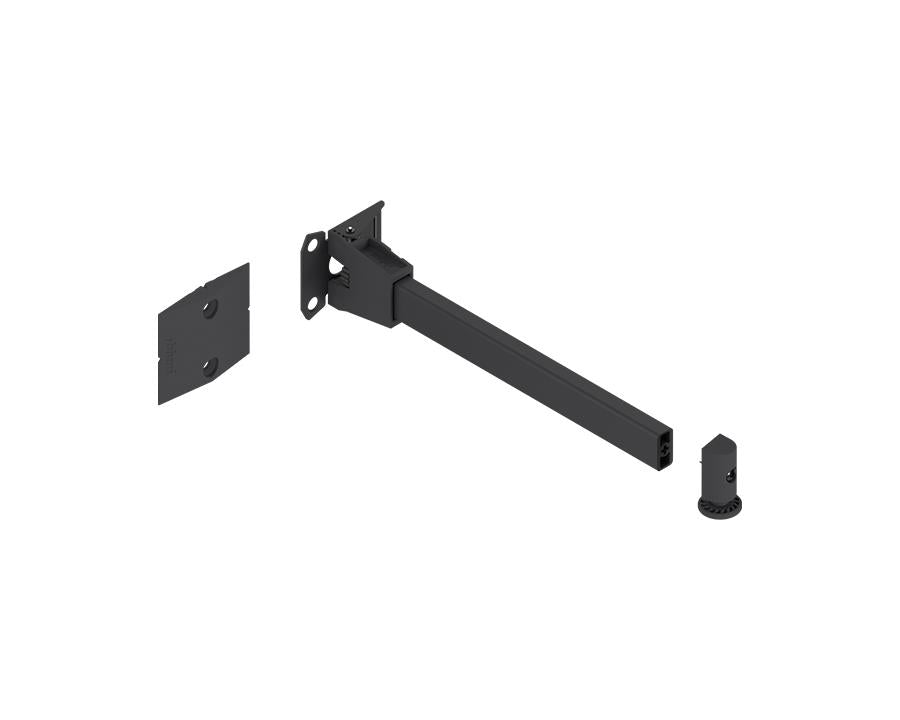

Inner Door Support by Wilson and Bradley – for REVEGO duo
Type: Inner Door Support Application: For REVEGO duo Length: 41 mm Support Length: 218 mm Material: Nylon Colour / Finish: Black Fixing Method: Screw-on Item Package: Set
Required Accessories (sold separately):
Blum System Screw, Countersunk Head 6 x 14.5 mm (6611450HG) – must be used
Door Straightener CBR04DS – recommended for all REVEGO uno & duo pocket systems
Notes:
Internal dimensions (width x height x depth) determine the maximum space to be planned for internal construction
Design the widest front first for combined applications
Certified durability of 40,000 opening and closing cycles
Manual operating force is less than 70 N (according to durability test)
Drilling patterns, cut-to-size dimensions, and detailed parts lists available via Blum Product Configurator
Assembly:
Requires CNC machine or MINIPRESS top with EASYSTICK from Blum to machine wooden parts
Both horizontal drillings and track cut-out are necessary
Blum recommends using the drilling template for REVEGO pocket connectors for accurate horizontal drillings
