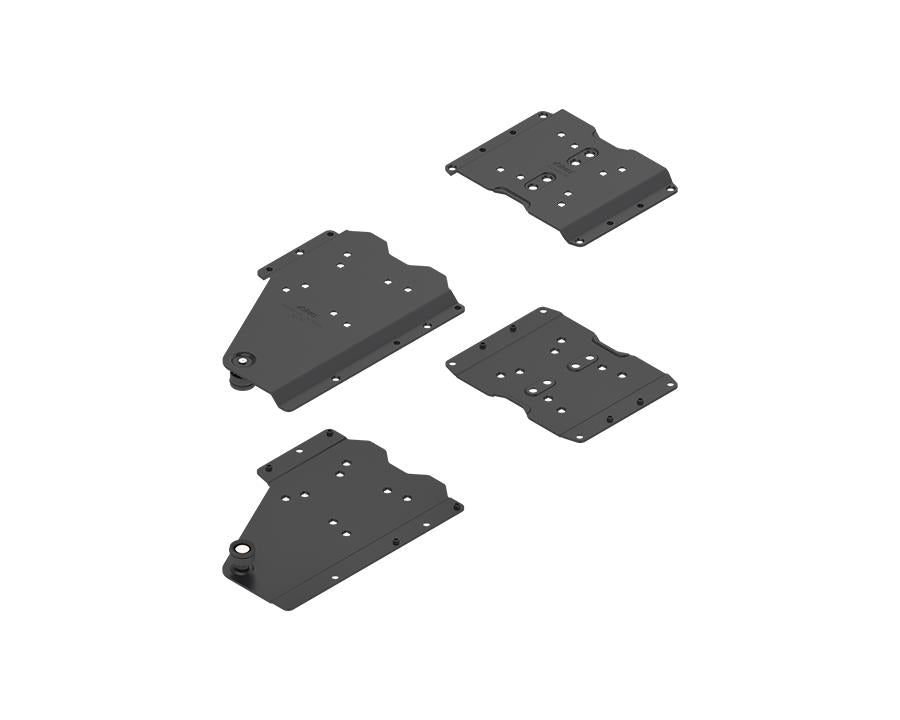

Blum REVEGO duo Pocket Connector Set for Application Without Plinth. For Pocket Side Thickness 18 to 19mm. Right. 802V680B.R1 by W&B

Pocket Connector by Wilson and Bradley – without Plinth

• Type: Pocket Connector
• Version: Without Plinth
• Pocket Side Thickness: 18–19 mm
• Material: Steel
• Colour / Finish: Black
• Fixing Method: Screw-on
• Item Package: Sold individually
• Required Screw: Blum System Screw, Countersunk Head 6 × 14.5 mm (6611450HG) – Must be used for installation and can be purchased separately

Recommended Accessory: Door straightener CBR04DS – Recommended for use with every REVEGO uno & duo pocket system and can be purchased separately

Important Information:

• Internal application dimensions (width × height × depth) determine the maximum space available for internal construction
• For combined front installations, plan and size the widest panel first
• Tested and certified for 40,000 opening and closing cycles
• Manual operating force remains below 70 N according to durability testing
• Drilling layouts, cut-to-size dimensions, and detailed parts lists are available through the Blum Group Product Configurator

Assembly Requirements:

• Wooden components must be machined using a CNC machine or MINIPRESS top with EASYSTICK from Blum
• Horizontal drill holes and a track cut-out are required for correct installation
• Use of the REVEGO pocket connector drilling template is recommended to ensure accurate horizontal drillings
