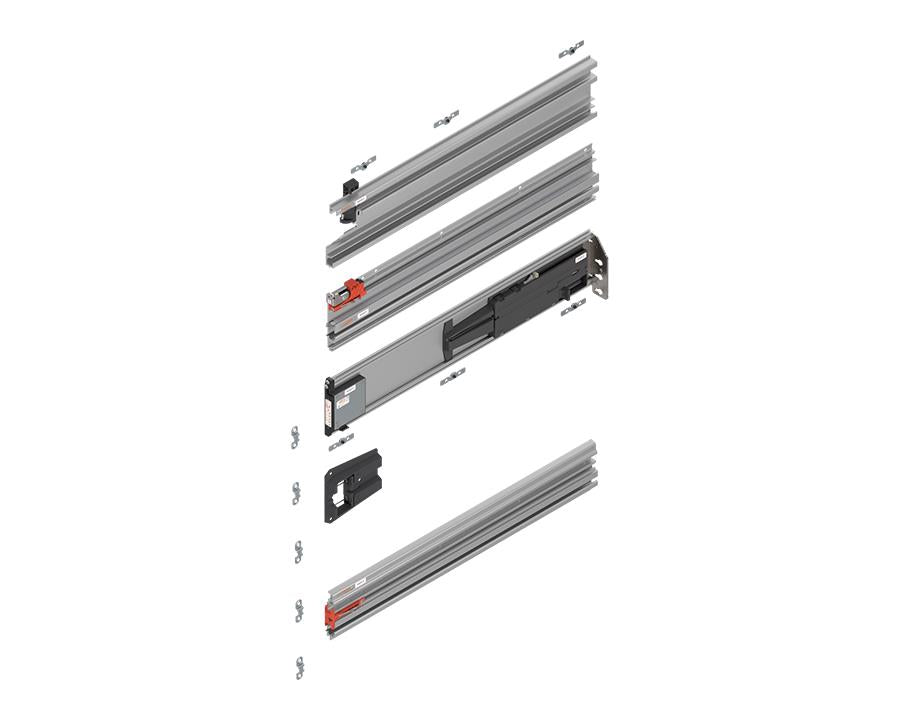

Blum REVEGO duo Pocket Profile Set with TIP-ON. Nominal Length: 450mm. Right 802P450.DR3 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO duo

• Type: Pocket Profile
• Application: For REVEGO duo
• Length: 493 mm
• Nominal Length: 450 mm
• Material: Aluminium
• Colour / Finish: E6/EV1 natural
• Fixing Method: For system screws
• Item Package: Set
• Compatible Screw Required: Blum System Screw, Counter Sunk Head 6 x 14.5mm 6611450HG (must be used, sold separately)
• Recommendation: Door straightener CBR04DS is recommended for use with every REVEGO uno & duo pocket system (sold separately)

Note:

• The internal dimensions in the application (width x height x depth) determine the maximum space to be planned for the internal construction
• Design the widest front first for combined applications
• Certified durability of 40,000 opening and closing cycles
• The manual operating force is less than 70 N according to the durability test
• Drilling patterns, cut-to-size dimensions and detailed parts lists can be found in the Blum Product Configurator

Assembly:

• A CNC machine or MINIPRESS top with EASYSTICK from Blum is required to machine the wooden parts
• Both horizontal drillings and a track cut-out are required
• Blum recommends using the drilling template for REVEGO pocket connectors for the horizontal drillings
