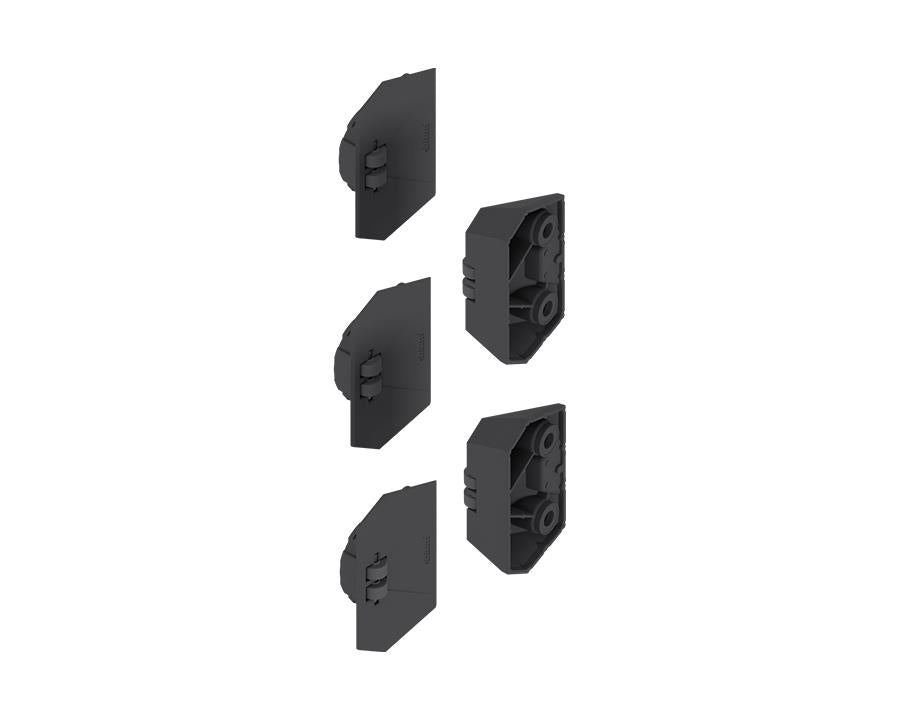

Blum REVEGO duo Scuff Guard. 802ZA00S by W&B

Scuff Guard by Wilson and Bradley

Type: Scuff Guard
Material: Nylon
Colour / Finish: Black

Required Accessories (sold separately):

• Blum System Screw, Countersunk Head 6 x 14.5 mm (6611450HG) – must be used
• Door Straightener CBR04DS – recommended for all REVEGO uno & duo pocket systems

Notes:

• Internal dimensions (width x height x depth) determine the maximum space to be planned for internal construction
• Design the widest front first for combined applications
• Certified durability of 40,000 opening and closing cycles
• Manual operating force is less than 70 N (according to durability test)
• Drilling patterns, cut-to-size dimensions, and detailed parts lists available via Blum Product Configurator

Assembly:

• Requires CNC machine or MINIPRESS top with EASYSTICK from Blum to machine wooden parts
• Both horizontal drillings and track cut-out are necessary
• Blum recommends using the drilling template for REVEGO pocket connectors for accurate horizontal drillings
