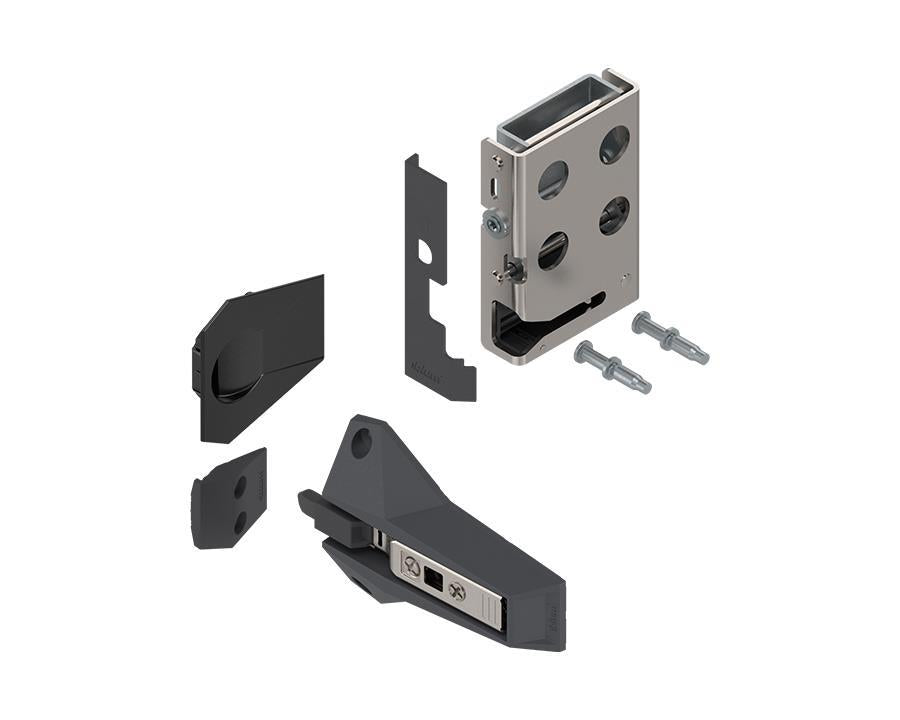

Blum REVEGO duo Track Fixing Set. Left. 802M0002.L2 by W&B

Track Fixing by Wilson and Bradley – for REVEGO duo

Type: Track Fixing
Application: for REVEGO duo
Material: Steel
Colour / Finish: Zinc plated
Item Package: set

Required Accessories (sold separately):

• Blum System Screw, Countersunk Head 6 x 14.5 mm (6611450HG) – must be used
• Door Straightener CBR04DS – recommended for all REVEGO uno & duo systems

Notes:

• Internal dimensions (width x height x depth) determine the maximum space to be planned for internal construction
• Design the widest front first when combining multiple door fronts
• Certified durability of 40,000 opening and closing cycles
• Manual operating force is less than 70 N according to durability tests
• Drilling patterns, cut-to-size dimensions, and detailed parts lists can be found in the Blum Product Configurator

Assembly:

• Requires CNC machine or MINIPRESS top with EASYSTICK from Blum to machine wooden parts
• Both horizontal drillings and track cut-out are needed
• Blum recommends using the drilling template for REVEGO pocket connectors for accurate horizontal drillings
