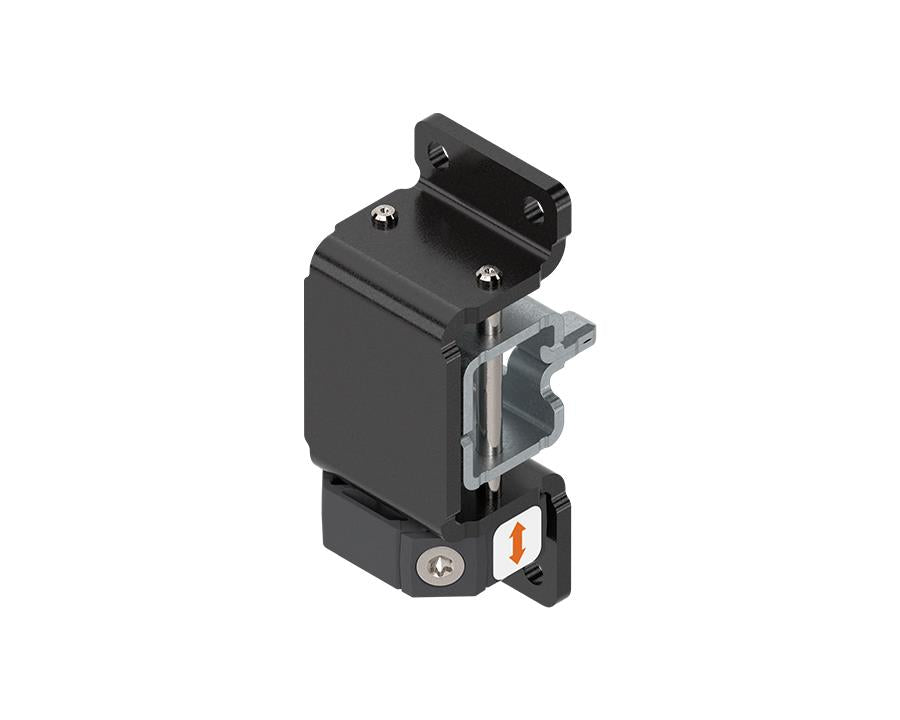

Blum REVEGO duo/uno Height Adjustment. Left Hand. 800T00002L2 by W&B

Height adjustment unit by Wilson and Bradley – For REVEGO duo/uno

• Type: Height adjustment unit
• Application: Compatible with REVEGO duo and uno
• Item package: Left side unit included

Required Accessories (sold separately):

• Blum countersunk screw 6 x 14.5 mm (6611450HG) must be used
• Door straightener CBR04DS is recommended for all REVEGO uno & duo pocket systems

Important Information:

• Internal dimensions (width x height x depth) set the maximum space for internal construction
• Design the widest front first when combining multiple fronts
• Certified durability of 40,000 open/close cycles
• Manual operating force less than 70 N according to durability testing
• Drilling patterns, cut-to-size dimensions, and detailed parts lists are available in the Blum Product Configurator

Installation Notes:

• Wooden parts require machining using a CNC or Blum MINIPRESS top with EASYSTICK
• Both horizontal drillings and a track cut-out are necessary
• Blum recommends using their drilling template for REVEGO pocket connector horizontal drillings
