• Blum REVEGO Uno left-hand hinge bracket set with TIP-ON, adjustable pocket height 2557–2706 mm, durable zinc-plated steel, smooth handle-free operation
1 1

IWBRUHBS2706L3

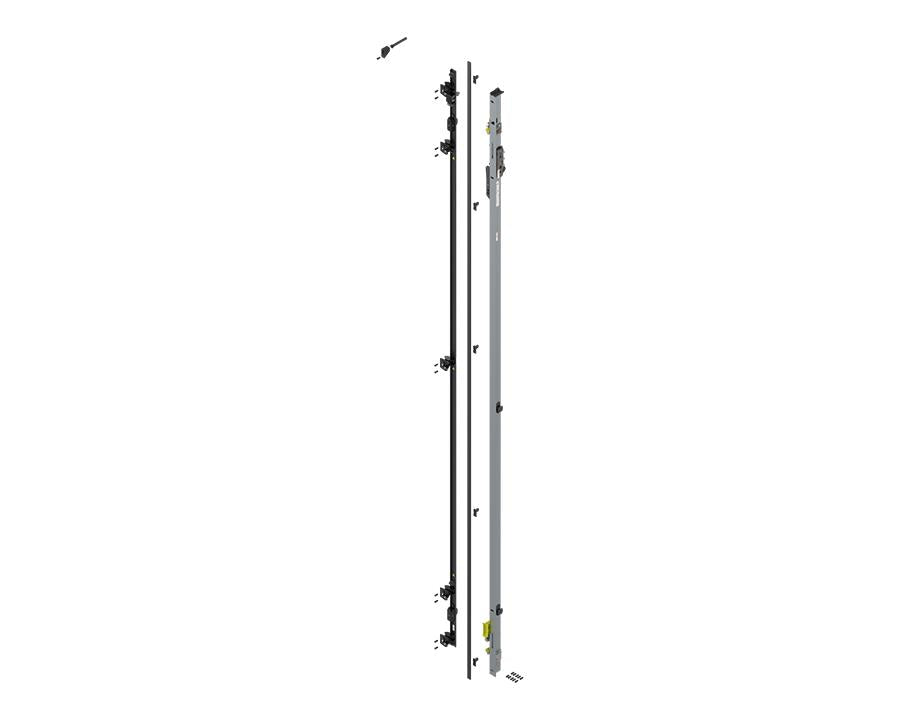

Blum REVEGO uno Hinge Bracket Set with TIP-ON for Pocket Height 2557mm - 2706mm. Left. 801T2550.L3 by W&B

Blum REVEGO uno Hinge Bracket Set with TIP-ON for Pocket Height 2557mm - 2706mm. Left. 801T2550.L3 by W&B

$1,880.70 AUD
$1,880.70 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Request bulk / project pricing

Before you submit an enquiry

Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.

To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.

For single-item purchases or small quantities, the website price is usually the best available price.

Continue to contact form

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges

Returns are handled according to the product condition, order type and Imperial return policy.

Hinge Bracket by Wilson and Bradley – for REVEGO uno

  • Type: Hinge Bracket
  • Application: For REVEGO uno
  • Pocket Height: 2557 mm – 2706 mm
  • Material: Steel
  • Colour / Finish: Zinc plated
  • Fixing Method: Tool-free
  • Item Package: Set Required

Screw: Blum System Screw, Countersunk Head 6 × 14.5 mm (6611450HG) – Must be used for installation and can be purchased separately

Recommended Accessory: Door straightener CBR04DS – Recommended for use with every REVEGO uno & duo pocket system and can be purchased separately

Important Information:

  • Internal dimensions of the application (width × height × depth) determine the maximum space available for internal construction
  • For combined front applications, plan and design the widest panel first
  • Certified for 40,000 opening and closing cycles
  • Manual operating force is less than 70 N according to durability testing
  • Drilling patterns, cut-to-size dimensions, and detailed parts lists are available in the Blum Group Product Configurator

Assembly Requirements:

  • Wooden components must be machined using a CNC machine or MINIPRESS top with EASYSTICK from Blum
  • Both horizontal drill holes and a track cut-out are required for proper installation
  • Blum recommends using the drilling template for REVEGO pocket connectors to ensure accurate horizontal drillings
Product Overview Technical Brochure Application Brochure
