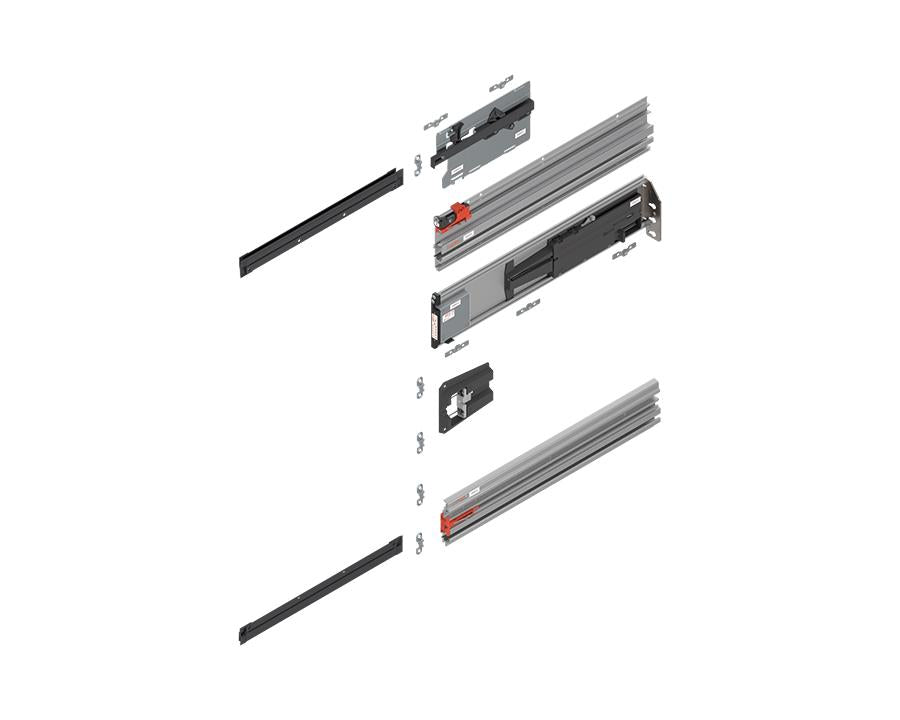

Blum REVEGO uno Pocket Profile Set with TIP-ON. Nominal Length: 500mm. Left 801P500E.L3 by W&B

Pocket Profile by Wilson and Bradley – For REVEGO uno

• Type: Pocket profile
• Application: Suitable for REVEGO uno
• Length: 543 mm
• Nominal length: 500 mm
• Material: Aluminium
• Finish: E6/EV1 natural
• Fixing method: Designed for use with system screws
• Package: Set

Required screws (sold separately):

• System Screw, Countersunk Head 6 x 14.5 mm (6611450HG) – Must be used for installation and can be purchased separately

Recommended accessory (sold separately):

• Door straightener CBR04DS – Recommended for use with REVEGO uno and duo pocket systems and can be purchased separately

Important information:

• Internal application dimensions (width x height x depth) define the maximum space required for internal construction
• For combined setups, plan the widest front panel first
• Tested for durability up to 40,000 opening and closing cycles
• Manual operating force is less than 70 N based on durability testing
• Drilling specifications, cut-to-size measurements, and detailed parts lists are available in the Blum Product Configurator

Assembly requirements:

• Wooden components must be processed using a CNC machine or MINIPRESS top with EASYSTICK
• Horizontal drill holes and a track cut-out are required
• A drilling template for REVEGO pocket connectors is recommended for accurate horizontal drilling
