SKU:IW-BRUTOSP-R2

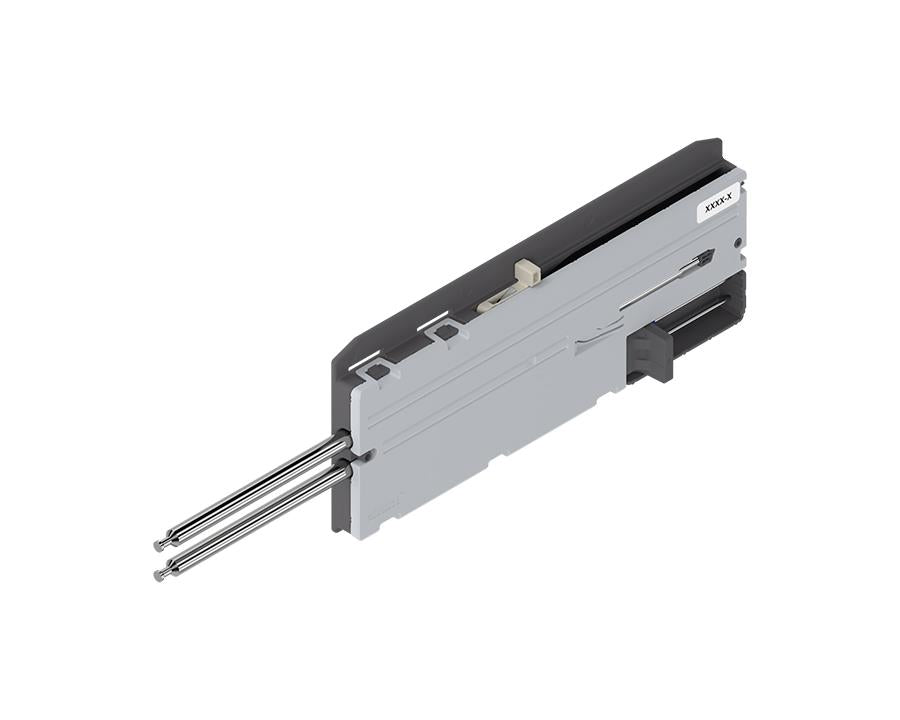

Blum REVEGO uno TIP-ON Support Pocket. Right Hand. 801BP00T.R2

Blum REVEGO uno TIP-ON Support Pocket. Right Hand. 801BP00T.R2

Regular price $311.64 AUD
Regular price Sale price $311.64 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

TIP-ON Pocket
Application: for REVEGO uno
Item package: Right

Blum System Screw, Counter Sunk Head 6 x 14.5mm 6611450HG must be used and can be purchased separately

Door straightener CBR04DS is recommended to be used in conjunction with every REVEGO uno & duo pocket system and can be purchased separately

Note:
The internal dimensions in the application (width x height x depth) determine the maximum space to be planned for the internal construction
Design the widest front first for combined applications
Certified durability of 40,000 opening and closing cycles
The manual operating force is less than 70 N according to the durability test
Drilling patterns, cut-to-size dimensions and detailed parts lists can be found in the Blum Product Configurator

Assembly:
You will need a CNC machine or MINIPRESS top with EASYSTICK from Blum to machine the wooden parts. Please note that both horizontal drillings and a track cut-out will be needed
Blum recommend using the drilling template for REVEGO pocket connectors for the horizontal drillings
