Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment and assembly ease and attractive design, our hinges allow for 3-dimensional adjustment.
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
CLIP top BLUMOTION adapts to the dynamics of every door. So, all doors have a smooth closing action regardless of size, weight, or force with which you close them. Available in 95°, 107°,110° and 155° angles, the BLUMOTION feature deactivated on one or both hinges to ensure doors close at the right speed. Snap these doors on and off with CLIP technology and make easy three-dimensional and cam adjustments.

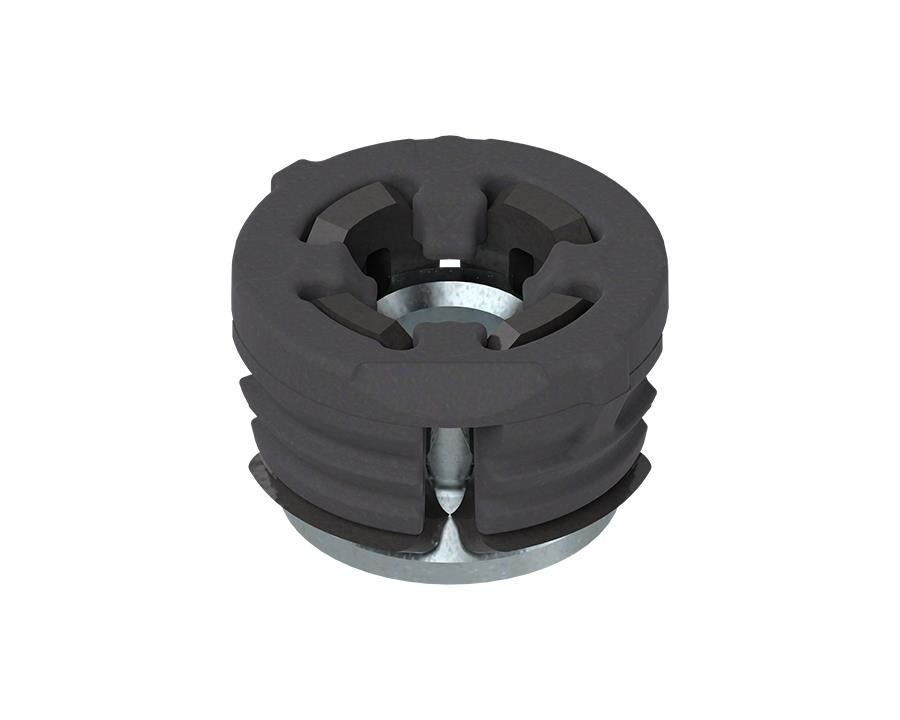

Our fixing system EXPANDO T for thin fronts from 8 mm - 14 mm thickness is suitable for many materials and even allows for exceptional design ideas. A steel pull-in anchor ensures a secure fit for harder materials while plastic jaws secure the fit for softer materials. EXPANDO T has a fixed drilling diameter of 10 mm and a drilling depth of just 6 mm.
Blum’s tried and tested CLIP mechanism makes door to cabinet assembly tool free, quick, and easy. Every door equipped with Blum hinges opens and closes with reliable ease.
Features ● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles ● Suitable for all applications ● 3-dimensional adjustment ● Easy assembly and adjustment
Specifications ● Type of dowel: Split dowel (EXPANDO T) ● Manufacturing type of component: Injection-moulded components ● Material: Nylon ● Colour/finish: Deep grey ● Length: 4.6mm ● Fixing of dowel to fitting: Screw-on ● Key width: No ● Drilling diameter: 10mm ● Removable: No ● Packaging: Industrial packing
