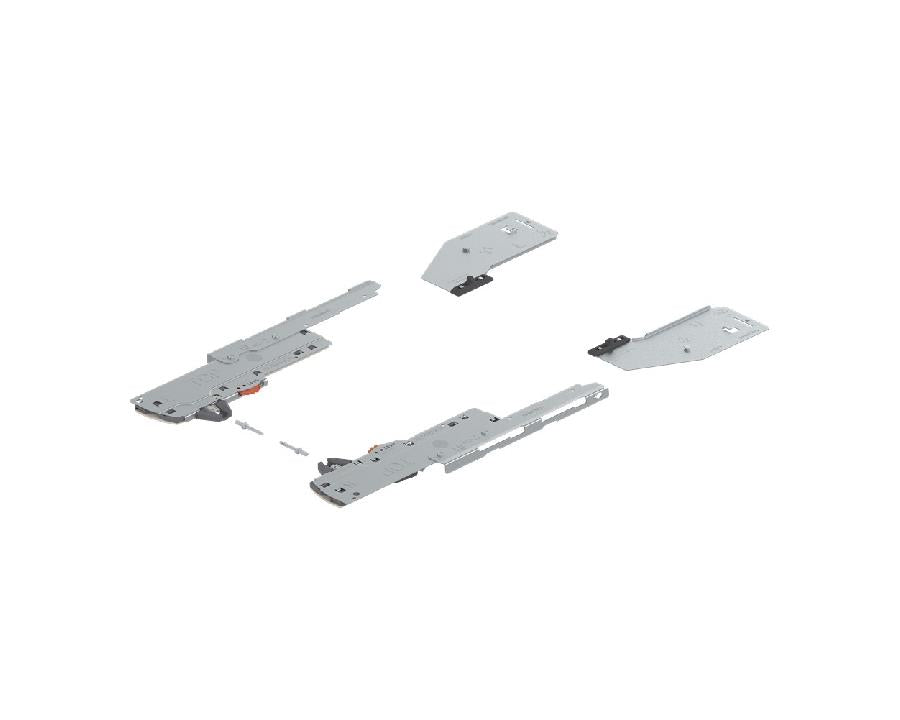

Blum TIP-ON BLUMOTION set for LEGRABOX sink application (includes latch & synchronised adapters) NL= 350 - 750mm. Total weight of the pull-out 15-40kg. Left & Right. T60L9540 by W&B

TIP-ON BLUMOTION for LEGRABOX (Type L3) – by Wilson and Bradley

TIP-ON BLUMOTION merges the mechanical push-to-open convenience with the trusted soft-close action of BLUMOTION. Open with a gentle touch and close with a firm push — the TIP-ON triggers while BLUMOTION ensures a smooth and quiet close, all purely mechanical with no electronics involved.

Specifically designed for MOVENTO systems, this unit supports handle-free drawers and pull-outs with a broad trigger range for effortless use. Synchronisation is recommended to maximise trigger performance and smooth operation.

Features
● Dynamic load capacity of up to 70 kg
● Finished in durable dust grey
● Crafted from premium nylon and steel materials
● Fully compatible with all LEGRABOX components
● Supported by Blum’s lifetime warranty

Specifications
● Type: TIP-ON BLUMOTION unit
● Product Group: LEGRABOX
● Dynamic Load Rating: 70 kg
● Nominal Length: 350–750 mm
● Description: Type L3
● Suitable Pull-Out Weight: 15–40 kg
● Trigger Travel: 1 mm
● Trigger Force: 22 kg
● Clamping Distance: 41.5 mm
● Closing Distances: 27 mm (BLUMOTION/BLUMATIC), 12 mm (self-closing)
● Material: Nylon and steel
● Colour/Finish: RAL 7035 light grey
● Special Feature: Ideal for sink pull-outs
● Version: Optional component
● Installation: Slip-on fixing
● Depth Adjustment: Tool-free spiral screw, ±3 mm

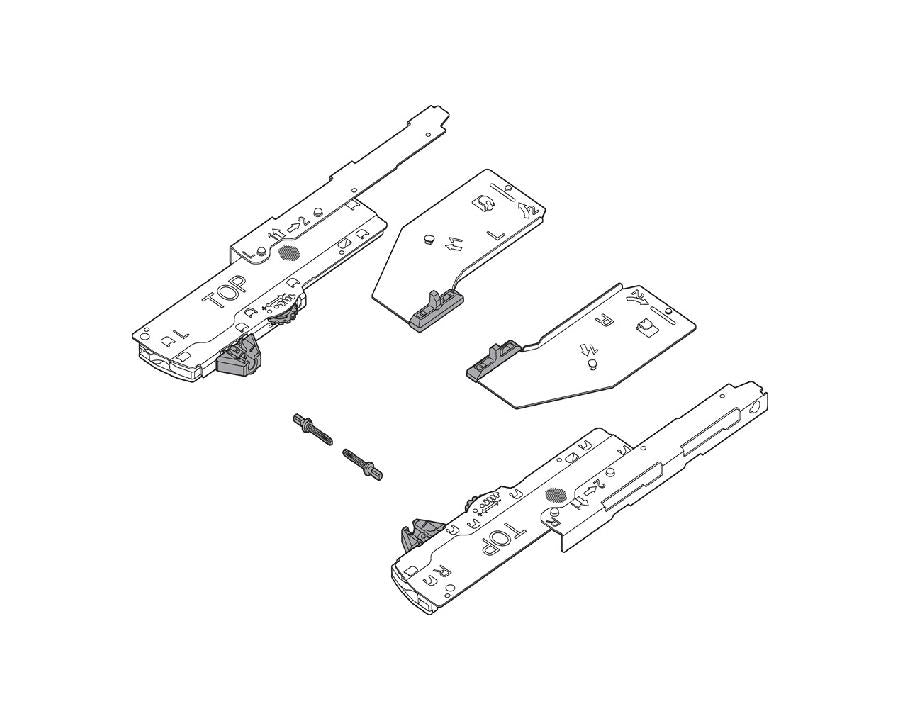

● Included: Adapter plate, left & right latches, and 2 adapters
● Package Contents: Left and right units
● Packaging: Commercial
