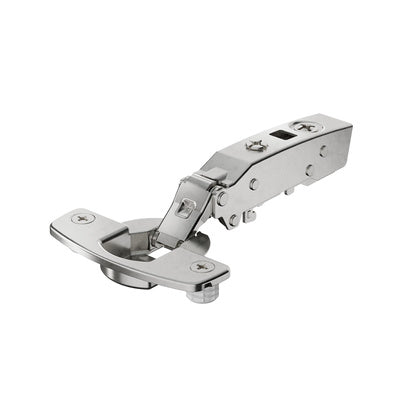

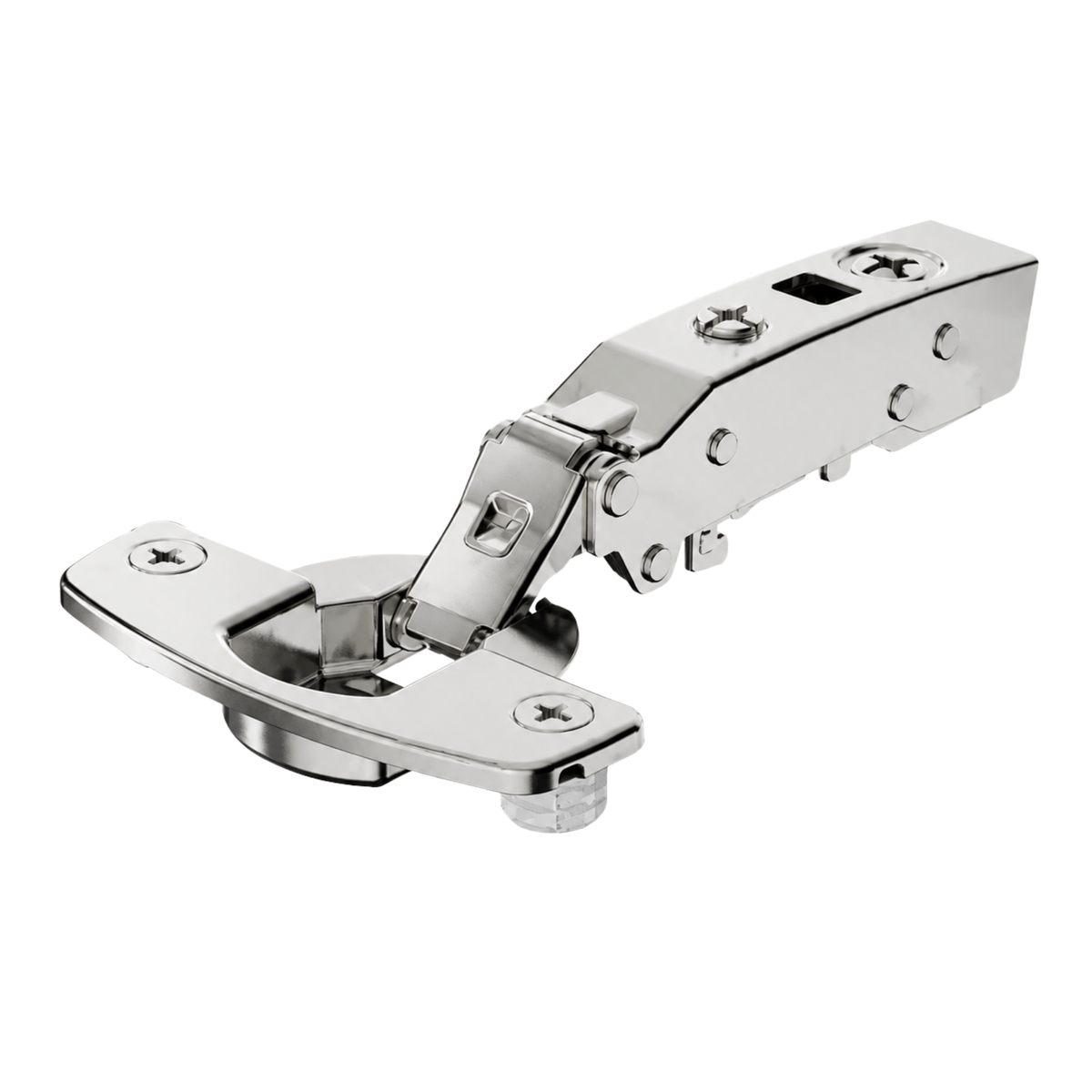

Sensys thin door hinge, door thickness from 10 mm, with integrated silent system (Sensys 8646i), nickel plated, overlay, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for pressing in (ø 10 x 8).
Sensys thin door hinge, door thickness from 10 mm
With integrated Silent System, with self closing feature (Sensys 8646i)
Quality classification under EN 15570, Level 3
Opening angle 110°
For door thickness 10-19 mm

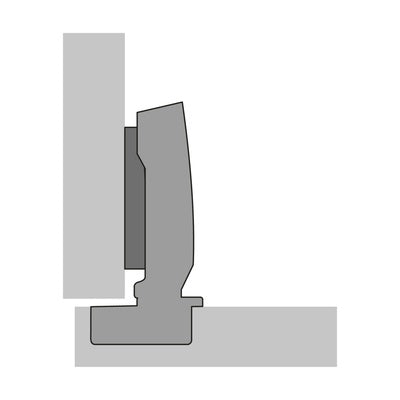

Door mounting option overlay (B 12.5 mm)

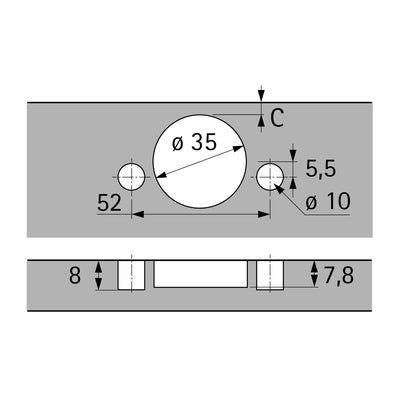

TH - drilling pattern 52 x 5.5 mm
Cup depth 7.8 mm

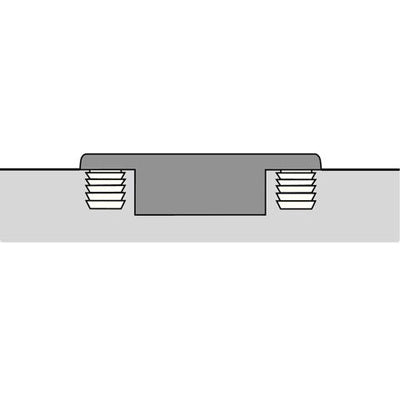

Installation for pressing in (TH 53)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel nickel plated
Note:Plate sold separately, check SKU code IWCMPWOBLNGH0MM70
