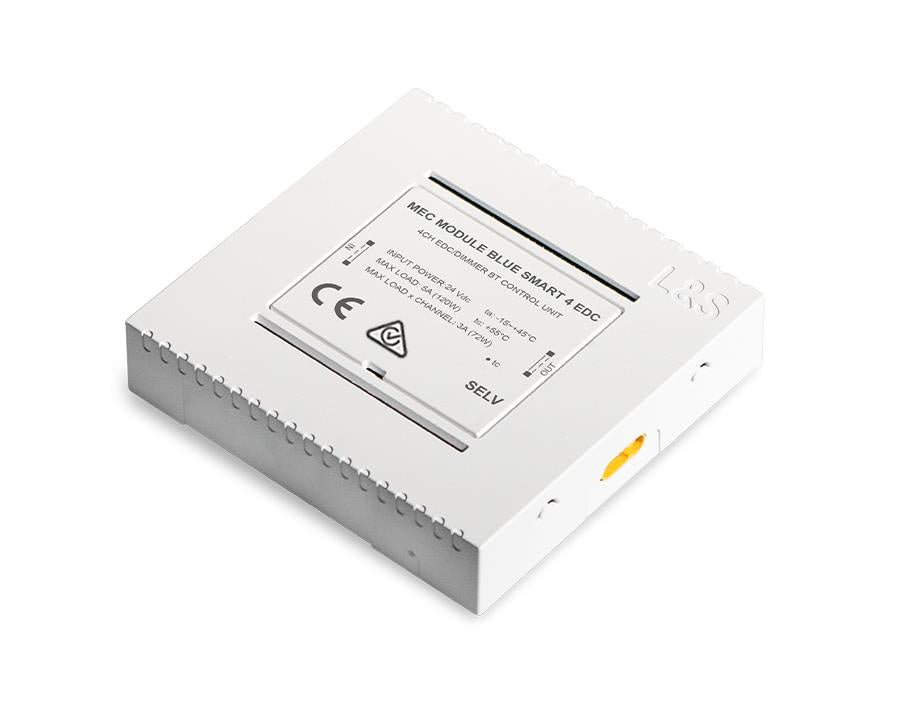

L&S MEC Bluesmart Distribution Module (4-Way) – by Wilson and Bradley

The latest advancement in lighting from L&S, introduces the MEC driver system with enhanced flexibility.

Powered by a multi-voltage source available in five wattage options, compatible with 12V and 24V setups, the MEC system simplifies lighting connections across various applications.

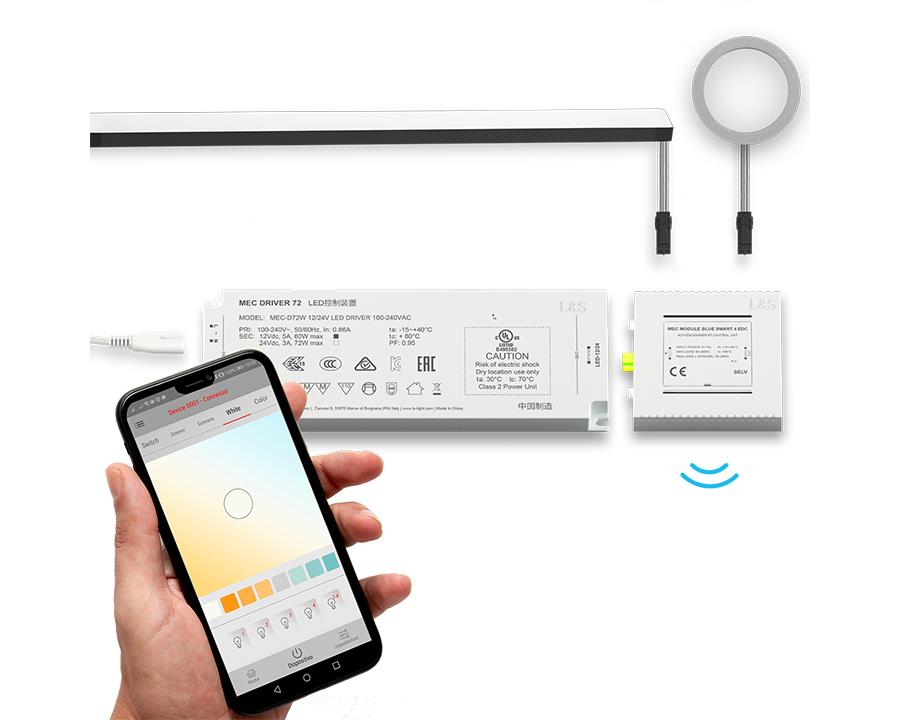

The MEC Bluesmart Distribution Module lets you independently or simultaneously control up to 4 lights via the Bluesmart app. Designed for 24V systems, it can be connected with other distribution modules maintaining the same voltage. The module supports smart wireless controllers, touch switches, and sensors, and comes in versions for Monochrome, Emotion, and RGB lighting.

Features:

  • Control 4 lights individually or together
  • Multiple Bluesmart modules can operate from one driver
  • Use the Bluesmart app to switch lights on/off and change colors (White or RGB)
  • Create personalized lighting scenes and zones
  • Compatible with wireless sensors, remotes, and switches
  • Plug-and-play installation
  • Exceptional flexibility to power more lights from a single driver
  • Can be linked with other distribution modules
  • Designed for 24V lighting only
  • Modules available for Monochrome, Emotion, and RGB lighting

Specifications:

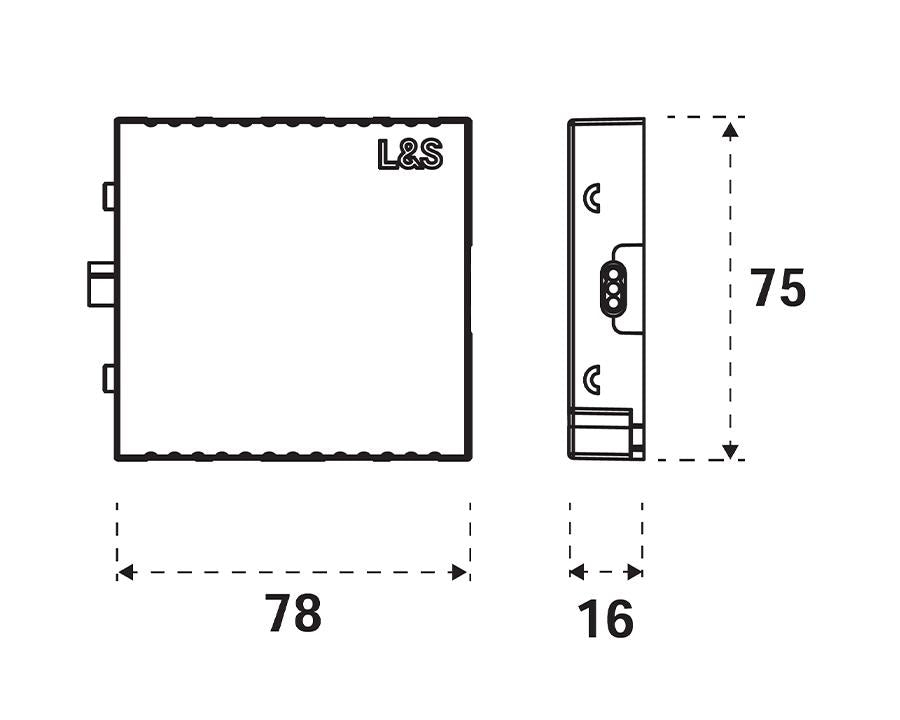

  • Dimensions: 78mm x 75mm x 16mm
  • Max power per module: 120W
  • Voltage: 24V
  • Light Type: Emotion (not compatible with RGB color changes)
  • Maximum current: 5A total
  • Max current per input: 3A
  • Operating temperature: -15°C to 45°C
  • IP Rating: IP20
  • Up to 4 light inputs per module
  • Limit of 6 distribution modules per driver
  • Driver sold separately
