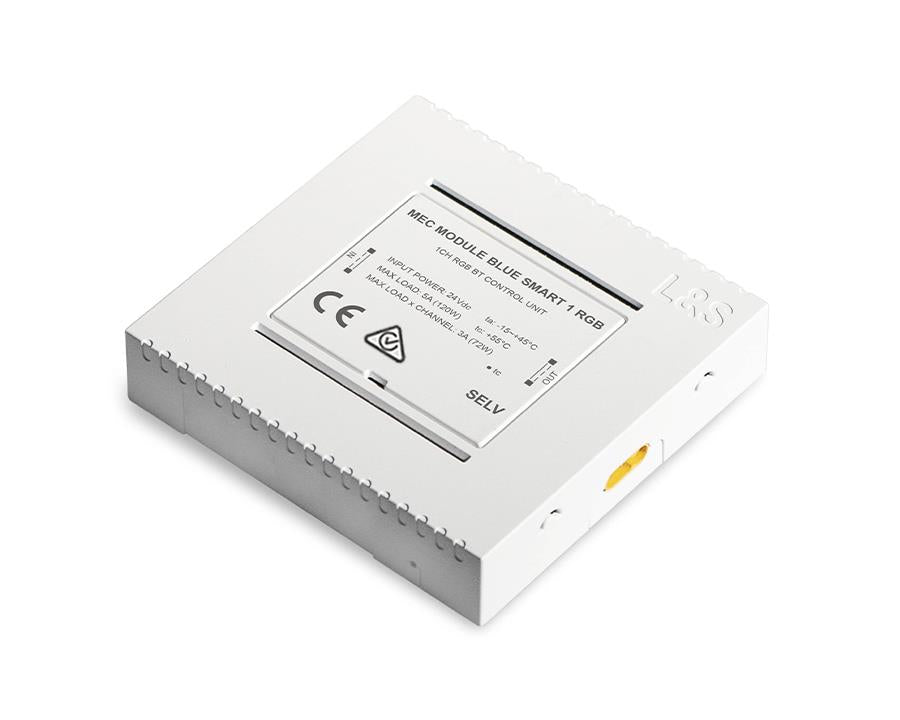

L&S MEC Bluesmart Distribution Module (4-Way) – by Wilson and Bradley
The next generation of lighting technology from L&S, introduces the all-new MEC driver system.
At the core is a multi-voltage power supply offered in five wattage options, compatible with both 12V and 24V applications, simplifying lighting connections across diverse setups.
The MEC Bluesmart Distribution Module allows control of up to 4 lights independently or simultaneously through the Bluesmart app. Designed for 24V lighting, these modules can be connected with others as long as the output voltage is consistent. Compatible with all wireless smart controllers, touch switches, and sensors, modules are available for Monochrome, Emotion, and the latest RGB lights.
Features:
- Control 4 lights independently or together on one module
- Multiple modules can be linked to a single driver

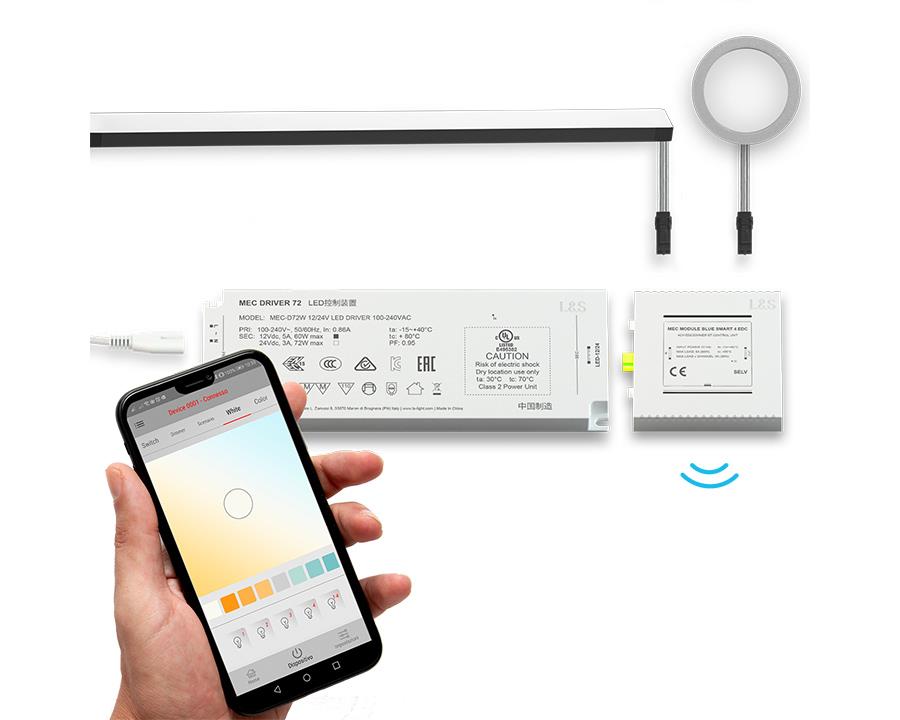

- Use the Bluesmart app to turn lights on/off, adjust colors (White or RGB), and create custom scenes
- Easily rename lights and organize zones for user-friendly operation
- Compatible with wireless sensors, remotes, and switches
- Plug-and-play for straightforward installation
- Exceptional flexibility to power more lights from one driver
- Can be combined with other distribution modules
- Designed exclusively for 24V lighting
- Modules available in Monochrome, Emotion, and RGB options
Specifications:
- Must be ordered with RGB Distributor LSSDISRGB

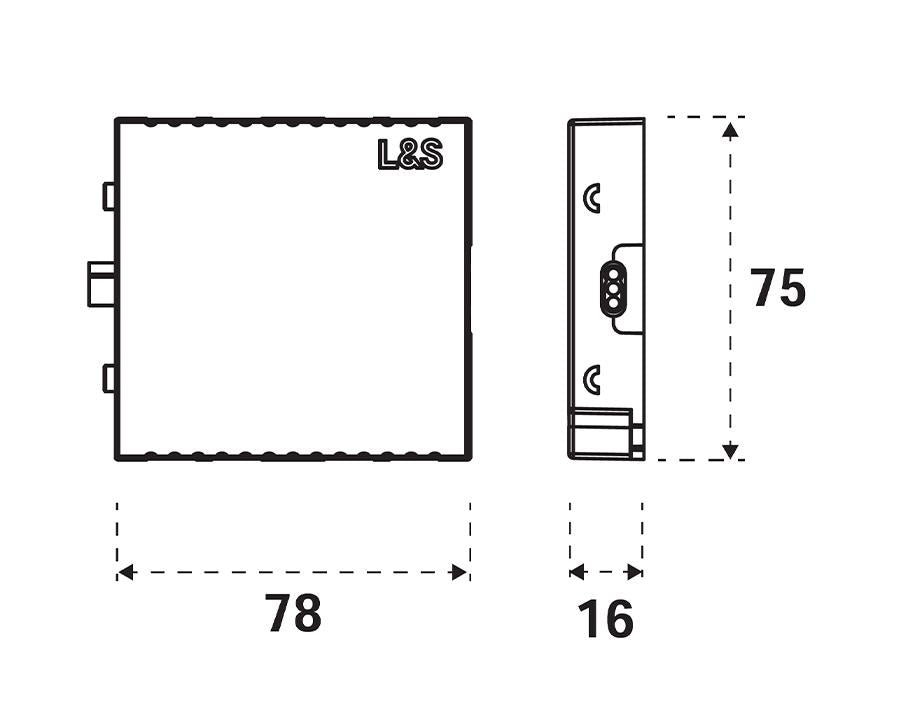

- Size: 78mm x 75mm x 16mm
- Max wattage per module: 120W
- Max wattage per input: 72W
- Voltage: 24V
- Light Type: RGB (not compatible with Monochrome or Emotion)
- Max current: 5A total
- Max current per input: 3A
- Operating temperature: -15°C to 45°C
- IP rating: IP20
- Supports up to 4 light inputs per module
- Up to 6 distribution modules per driver
