L&S MEC Ghost Wireless Sensor for Smart/Bluesmart Modules – by Wilson and Bradley
The latest advance in lighting technology from L&S, exclusive to Imperial Glass and Timber, is the all-new MEC driver system.
The MEC system features a flexible multi-voltage power source, offered in five wattage levels and compatible with 12V and 24V setups, allowing easy integration with a wide range of lighting applications.

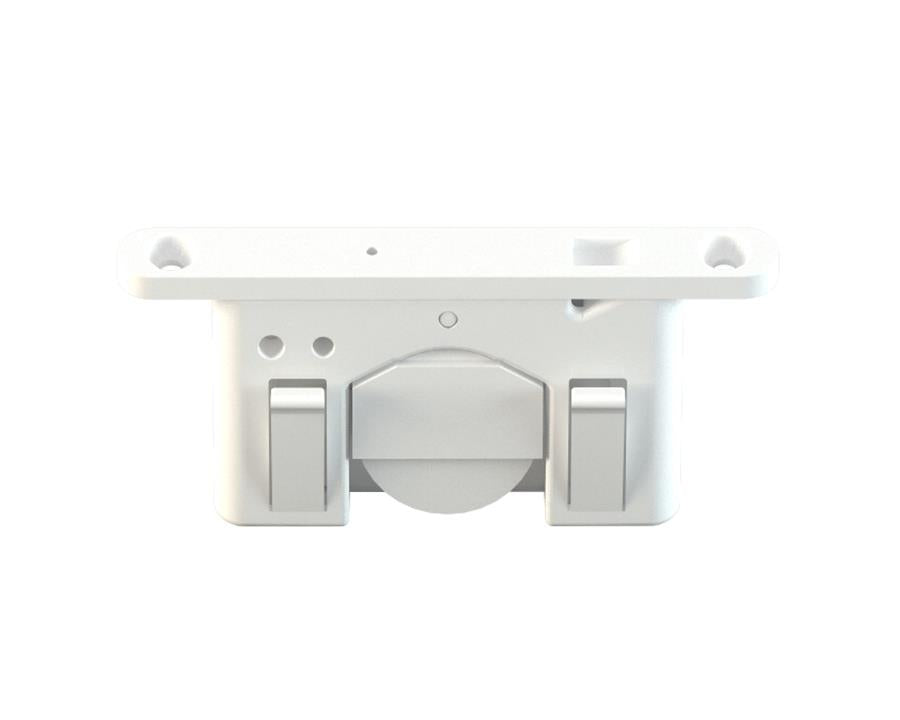

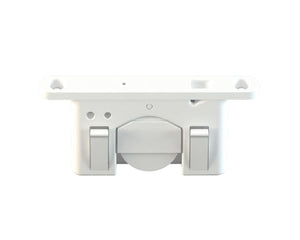

The Ghost wireless motion sensor attaches to furniture doors to automatically switch connected lights on or off. When a door opens or motion is sensed, the sensor signals the associated Smart or Bluesmart module to turn lights on. Lights switch off either when the door closes (magnetic version) or after a timer expires (non-magnetic version). This sensor works exclusively with Smart and Bluesmart modules.
Features:
Enables on/off via motion detection or magnetic contact
Indoor range of up to 15 meters
Powered by CR2450 battery (lasting up to 4 years based on 30 activations daily)
Automatically activates lights upon door opening and turns them off on door closing or after a timed delay
Ideal for wardrobes, kitchen cabinets, and other furniture doors
Compatible only with Smart and Bluesmart modules
Not suitable for Standard or Wired Sensor Distribution Modules
Specifications:

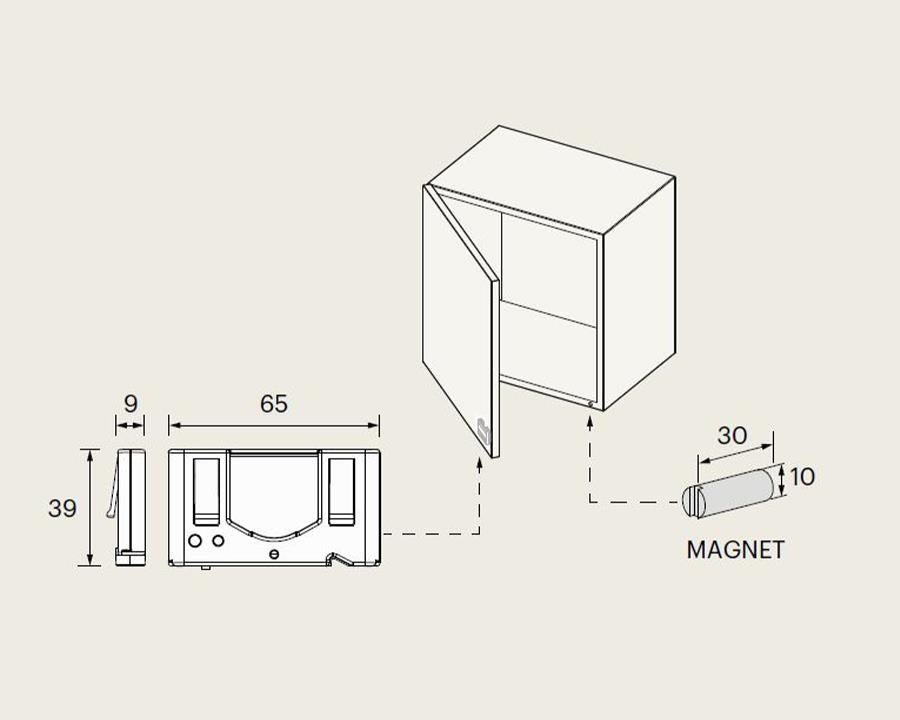

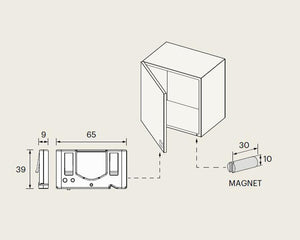

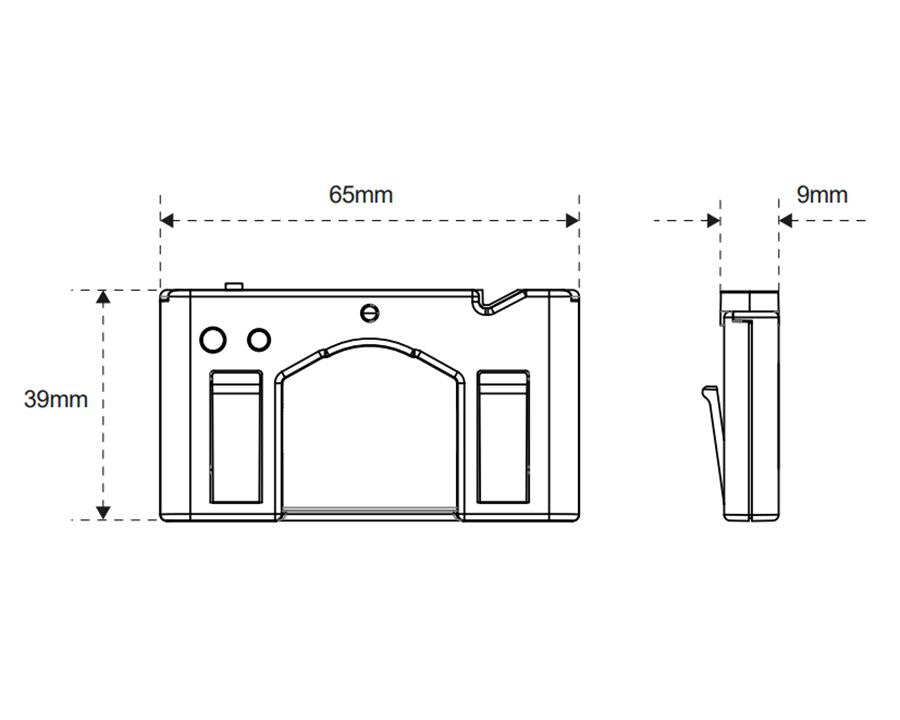

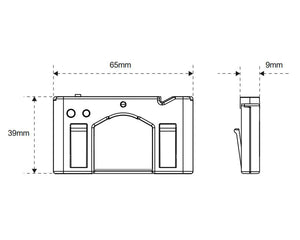

Dimensions without screw: 64.8mm x 38.8mm x 9.8mm
Dimensions with screw: 89.8mm x 38.8mm x 9.8mm
Required rebate hole (no screw): 65mm x 39mm x 10mm
Required rebate hole (with screw): 90mm x 39mm x 10mm

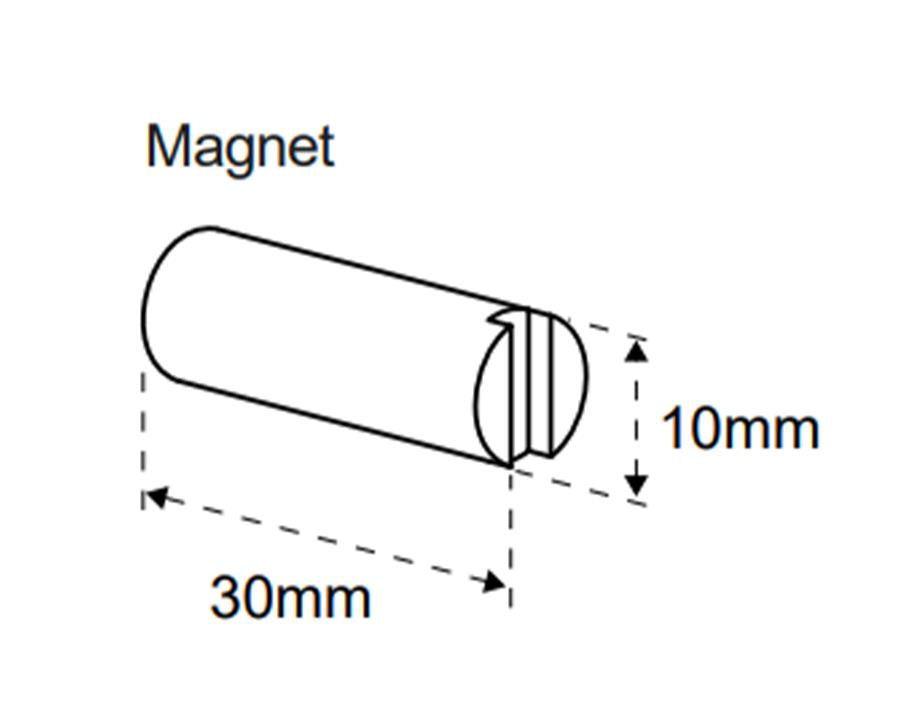

Magnet size: 30mm x 10mm
Battery included: CR2450 (approx. 4 years lifespan)
Distribution module and driver sold separately
Voltage: 24V
Compatible with all lighting types
IP rating: IP20
Supports up to 10 remotes/sensors/switches per Smart/Bluesmart module
Up to 6 Smart/Bluesmart modules controlled by one remote/sensor/switch
