L&S MEC System Smart Distribution Module. For Emotion Lighting. 8 ways. 24 Volt

The next evolution in lighting from L&S, exclusive to Imperial Glass and Timber, is the all new MEC driver system.

The MEC system is a new driver that boasts flexibility and ease of use like never before. It is easy to install, control and transform your space.

The heart of the system is the new multi-voltage power source, available in five different levels of wattage and suitable for 12V and 24V applications.

The MEC system makes it much easier to connect the lighting to a multitude of applications.

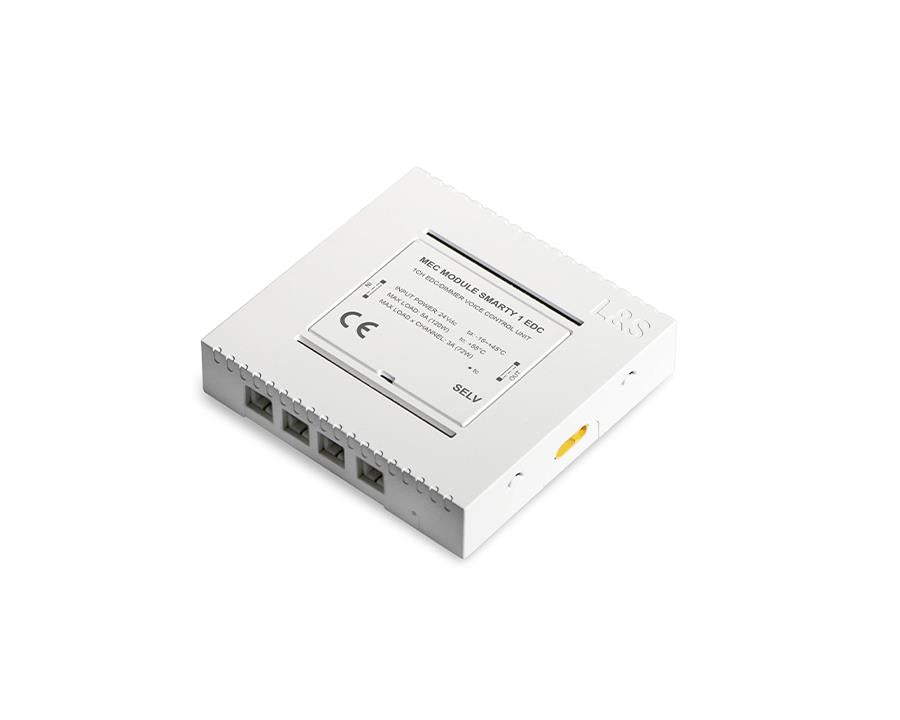

L&S MEC System Smart Distribution Module. 8 ways.
The flexibility of the MEC system allows for multiple Smart modules to be used off the one driver! Control lights by using voice commands and/or wireless remote controllers and sensors with the Smart Module.
The MEC Smart Module allows you to simultaneously control up to 8 lights via wireless remotes, sensors, touch switches or voice command capabilities.

● 8 lights can be powered on the one module collectively
● Multiple Smart modules can be used on the same driver
● Plug and Play, making for ease of installation
● Compatible with all Wireless Sensors, Remotes and Switches (besides RGB)

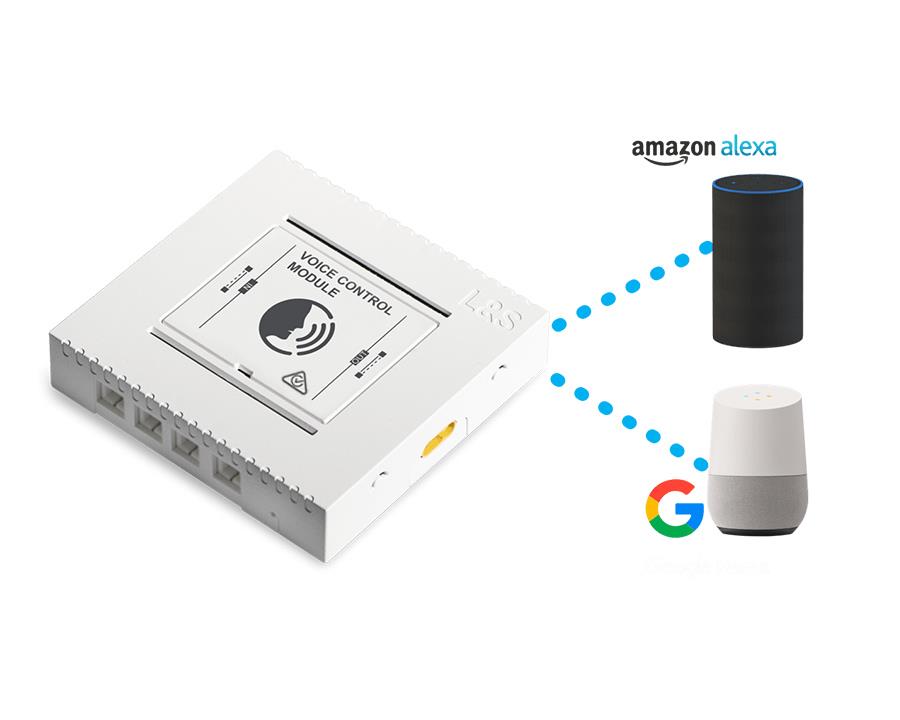

● Voice capabilities through Google Home and Alexa, and allows to connect to Smart Home applications
● Voice commands to turn lights on/off, change colour, brightness level, activate pre-set scenarios etc
● Flexibility like never before, being able to power more from the one driver!
● Can be coupled to other distribution modules to power more lights
● To suit 24V Lighting
● Modules to suit Monochrome and Emotion Lighting
● Network requirements: 2.4Ghz (not compatible with 5Ghz)

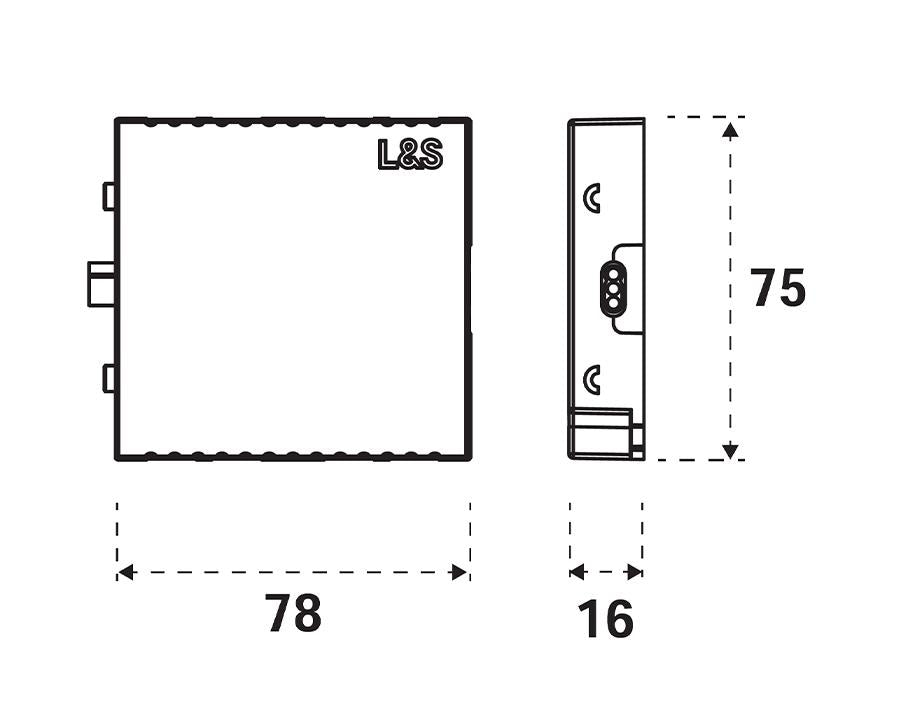

● Sizing: 78 x 75 x 16mm
● Max Wattage per module: 120W
● Max Wattage per input: 72W
● Driver sold separately
● Voltage: 24V
● Light Type: Emotion (not compatible with RGB Colour changes)
● 5A Max (total)
● 3A Max (each input)
● Operating temprature -15° - 45°
● IP Rating: IP20
● Maximum Light Inputs per Distribution Module: 8
● Maximum Distribution Module Quantity to 1 driver: 5
