L&S MEC Standard Distribution Module (8-Way) – by Wilson and Bradley
The newest advancement in lighting from L&S, exclusively at Imperial Glass and Timber, is the cutting-edge MEC driver system.
At the core is a multi-voltage power supply available in five wattage options and compatible with both 12V and 24V setups, making it easier to connect lighting to a wide range of applications.

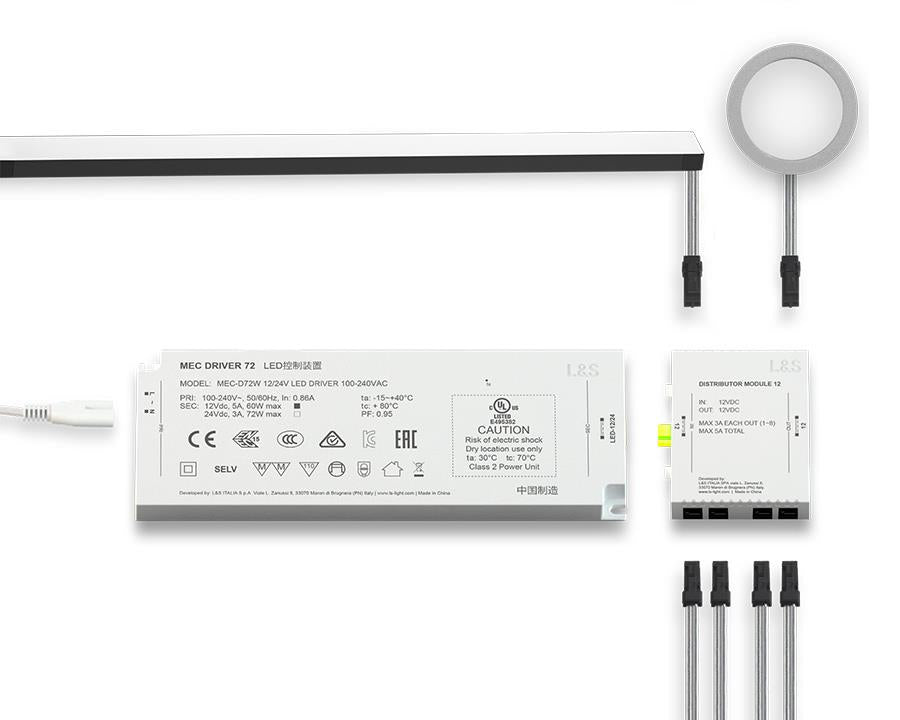

The MEC Standard Distribution Module, offered in 12V and 24V versions, supports up to 8 lights connected to a single power supply module. It can also be paired with other modules from the same driver, providing unmatched flexibility and allowing you to power more lights from one driver.
Features:
Supports 8 lights per distribution module
Plug-and-play for hassle-free setup
Exceptional flexibility enabling increased lighting from one driver
Compatible with 12V and 24V lighting
Soft lighting feature for gradual on/off transitions
Simple installation
Specifications:

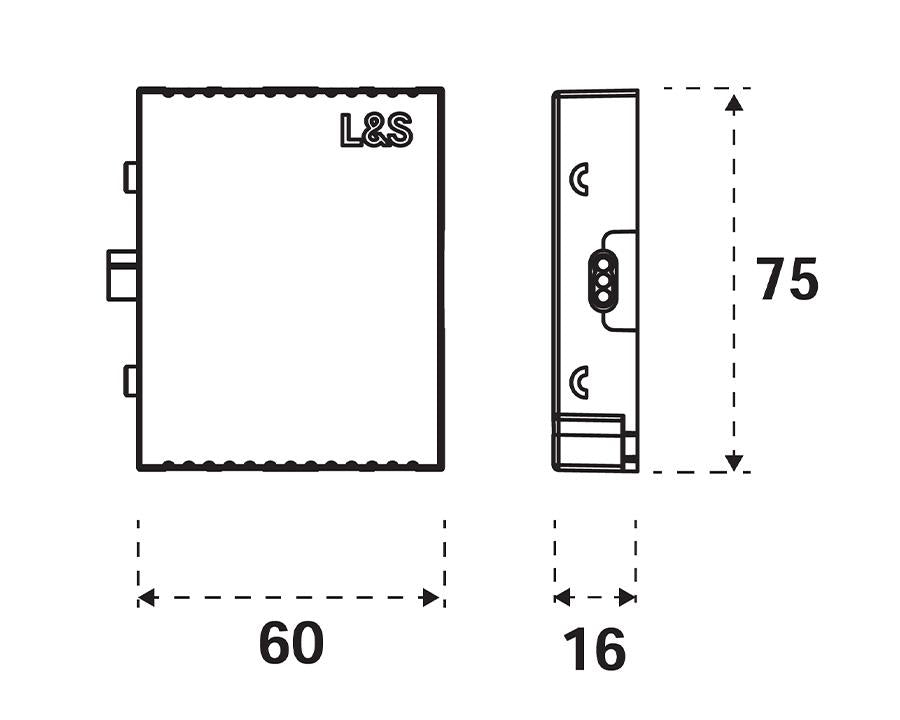

Dimensions: 60mm x 75mm x 16mm
Max wattage per module: 120W
Voltage: 24V
Maximum total current: 5A
Max current per input: 3A
Connects up to 8 lights per module
No limit on modules per driver; depends on driver wattage
