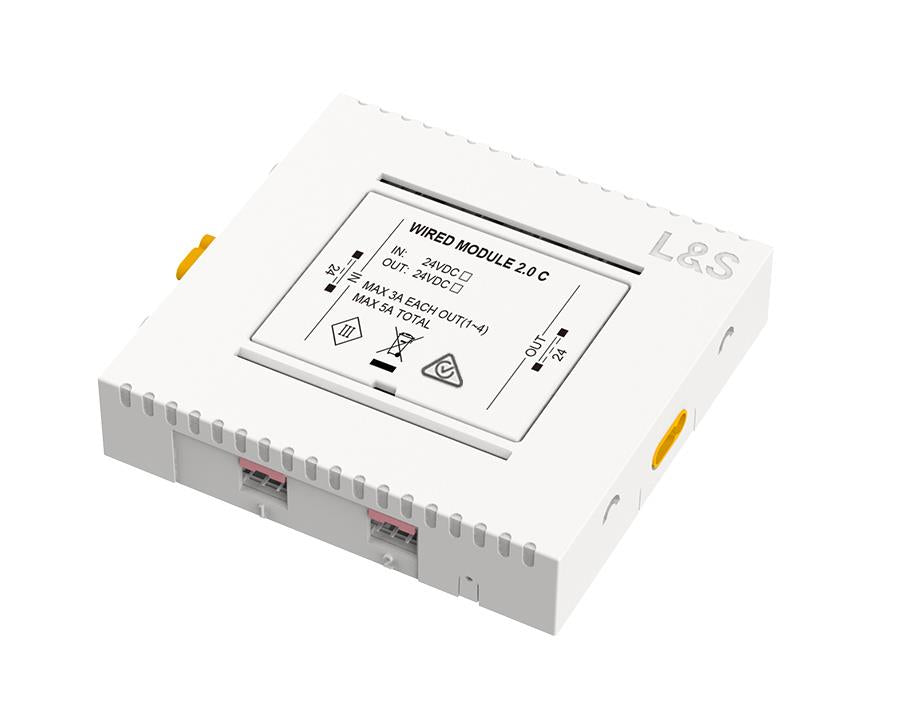

L&S MEC Wired Sensor Distribution Module (4-Way) – by Wilson and Bradley

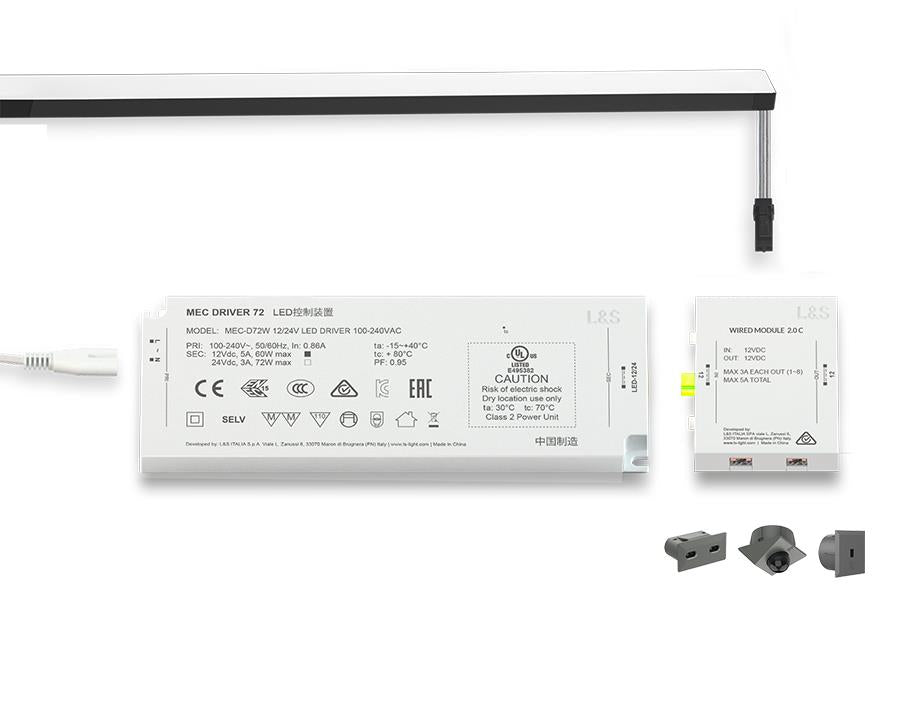

The next step in lighting technology from L&S, exclusively at Imperial Glass and Timber, is the advanced MEC driver system.
At its core is a multi-voltage power source available in five wattage levels, compatible with both 12V and 24V applications, offering greater flexibility for connecting lighting to various setups.

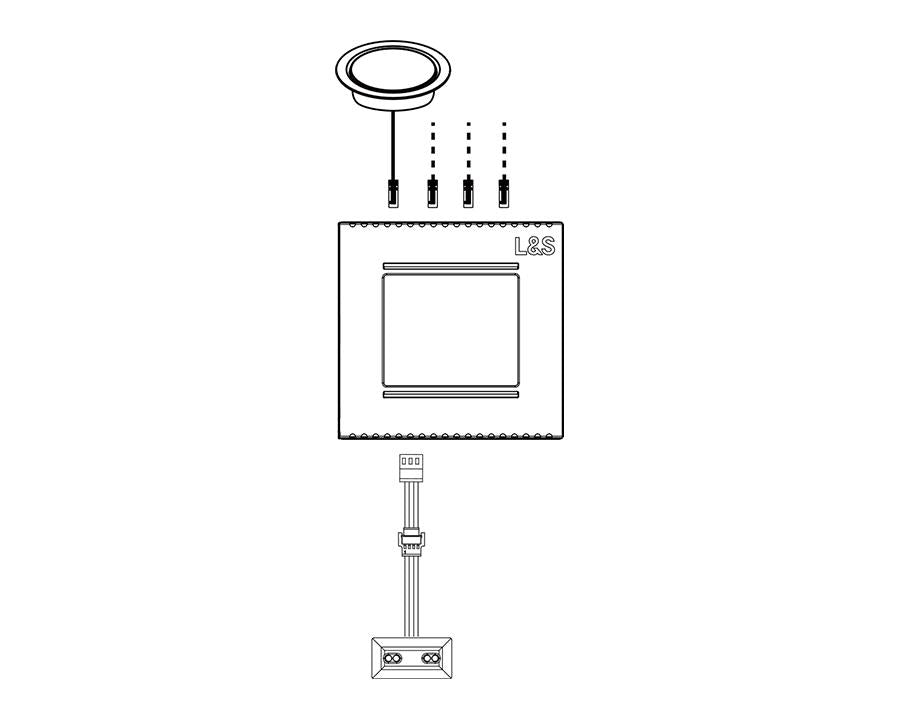

The MEC Wired Sensor Distribution Module supports integrated control of your lighting via L&S IR and PIR sensors. It also works with L&S Touch Switches to toggle lights and adjust brightness. Multiple wired sensor modules can be connected to a single driver for expanded control.
Features:
- Powers up to 4 lights per module
- Multiple wired sensor modules can operate from one driver
- Plug-and-play for easy installation

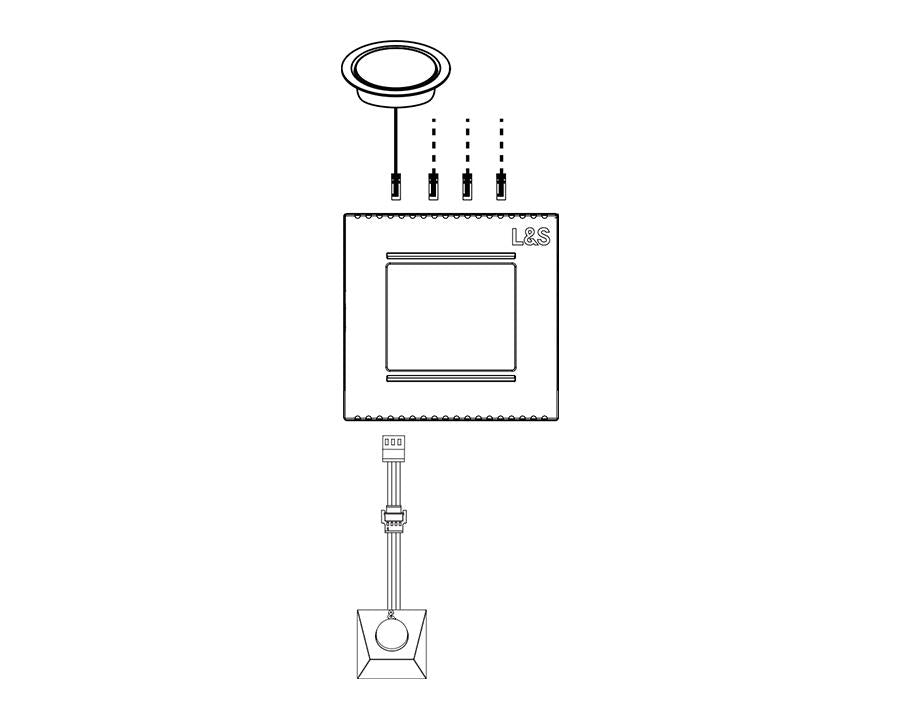

- Compatible with IR and PIR sensors

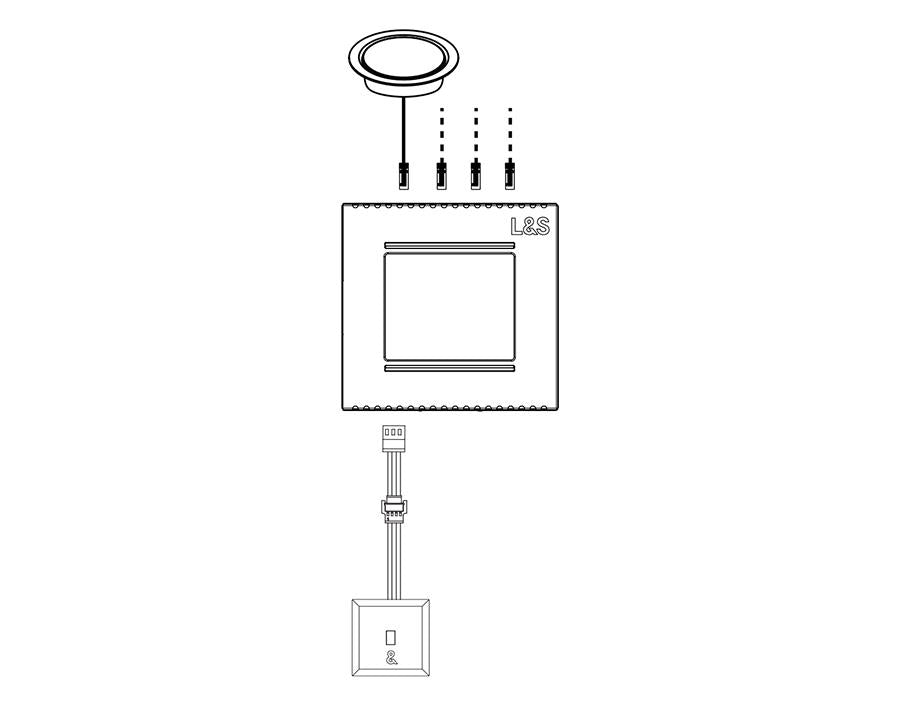

- Supports L&S Touch Switches for on/off and dimming
- Flexible system allows powering more fixtures from a single driver
- Can be combined with other distribution modules
- Designed for 24V lighting
- Soft lighting effect for smooth on/off transitions
- Built-in settings enable custom IR and PIR functionality
- Simple installation
Specifications:
- Dimensions: 78mm x 75mm x 16mm
- Max wattage per module: 120W
- Voltage: 24V
- Max current total: 5A
- Max current per input: 3A
- Supports 4 light inputs per module
- Unlimited modules per driver (limited by driver wattage)
- Sensors and driver sold separately
