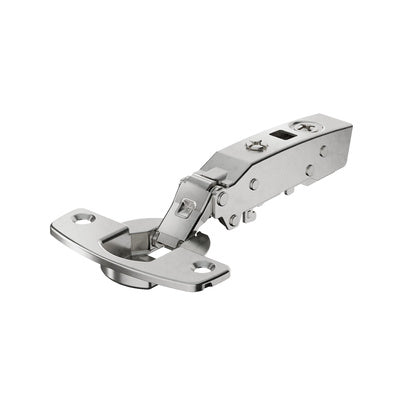

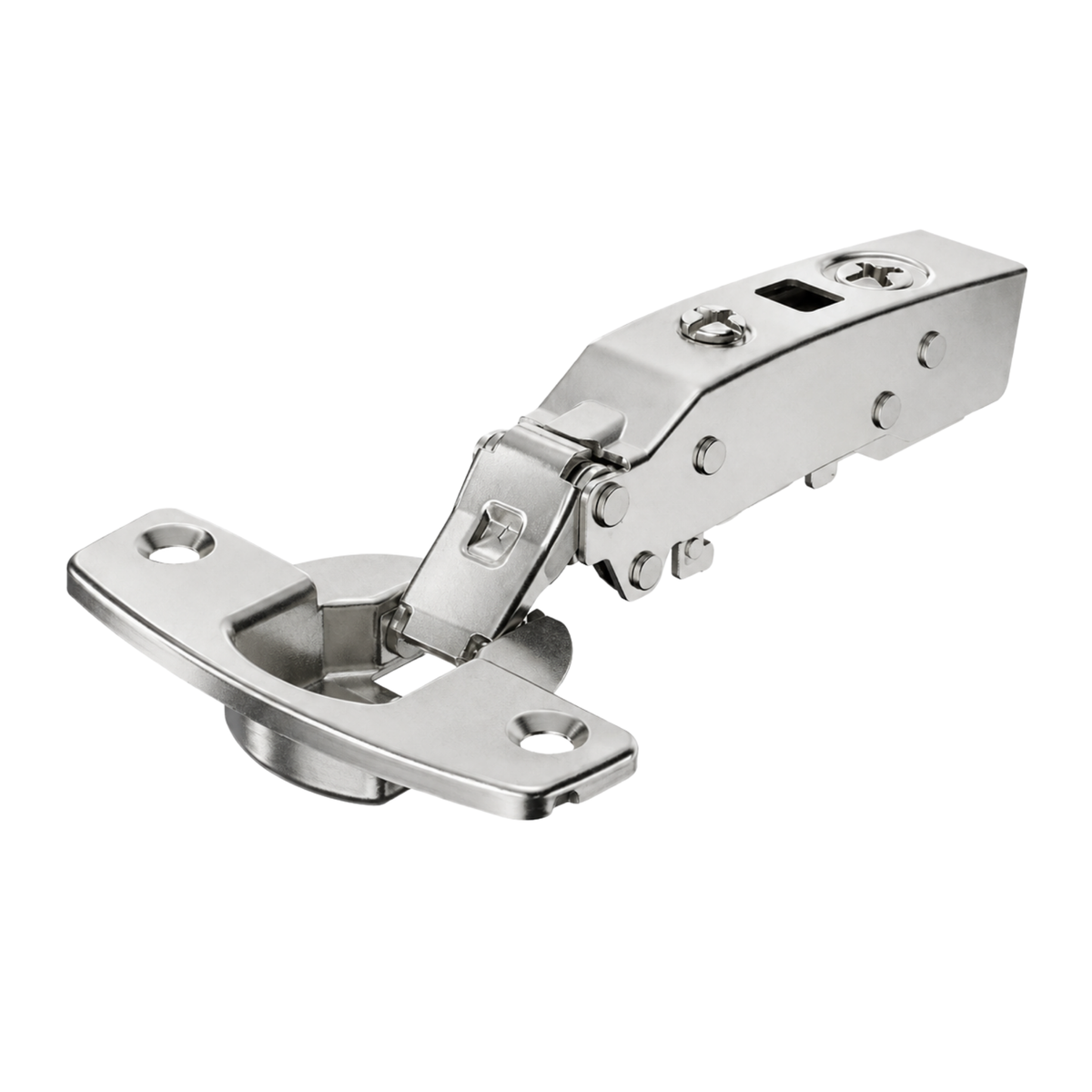

Hettich Sensys | Thin Door Hinge | Integrated Silent System 9094270

Hettich Sensys | Thin Door Hinge | Integrated Silent System 9094270

Regular price $9.00 USD
Regular price Sale price $9.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Request bulk / project pricing

Before you submit an enquiry

Bulk and project pricing is generally available for larger quantities, carton quantities, repeat trade customers, builders, cabinetmakers and project orders.

To help our team respond accurately, please include the product name, quantity required, delivery suburb or postcode, and whether the order is for pickup or delivery.

For single-item purchases or small quantities, the website price is usually the best available price.

Continue to contact form

For larger quantities, project orders or repeat trade customers.

Delivery & Collection Note

Lead time for orders is 2–4 business days, with an additional 3–5 business days for delivery.

Product Support

Need help checking compatibility or ordering in trade quantities? Contact Imperial before ordering.

Returns & Exchanges

Returns are handled according to the product condition, order type and Imperial return policy.

  • Sensys thin door hinge, door thickness from 10 mm
  • With integrated Silent System, with self closing feature (Sensys 8646i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 10-19 mm

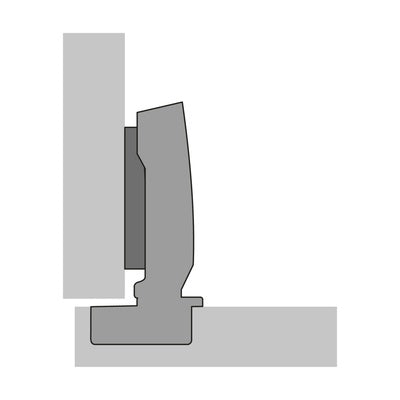

  • Door mounting option overlay (B 12.5 mm)

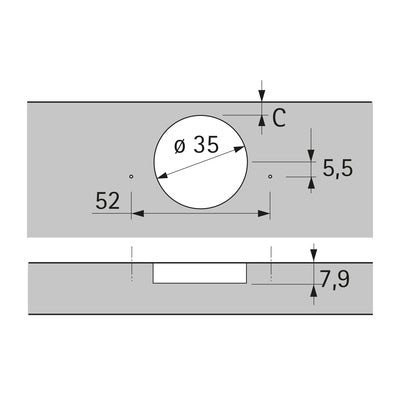

  • TH - drilling pattern 52 x 5.5 mm
  • Cup depth 7.8 mm

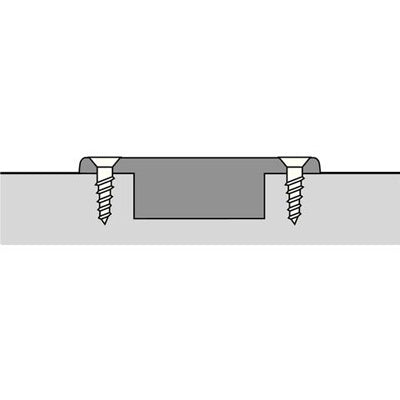

  • Installation for screwing on (TH 52)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated

Note: Plate sold separately, check SKU code IWCMPWOBLNGH0MM70
